100kW EV Charger Burn In Chamber Burn In Test System For Portable DC Charging Piles
100kW EV Charger Burn In Chamber Burn In Test System For Portable DC Charging Piles
100kW EV Charger Burn In Chamber Burn In Test System For Portable DC Charging Piles
100kW EV Charger Burn In Chamber Burn In Test System For Portable DC Charging Piles
100kW EV Charger Burn In Chamber Burn In Test System For Portable DC Charging Piles
100kW EV Charger Burn In Chamber Burn In Test System For Portable DC Charging Piles
Specifications
Brand Name :
CPET
Model Number :
CP-DC06
Place of Origin :
China
MOQ :
2sets
Price :
9000dollars/set
Payment Terms :
L/C
Supply Ability :
25sets/month
Delivery Time :
40 work days
Packaging Details :
Wooden case packing
Warranty :
1year
Total input current :
200A
Total input power :
100kW
Description
Burn-In Test System For Portable DC Charging Piles EV Charger Burn In Chamber
Outstanding functions
100kW EV Charger Burn In Chamber Burn In Test System For Portable DC Charging Piles

1. Transfer cables are used between products; Product AC input/output are equipped with the corresponding acquisition module

2. A variety of laminate structures can be selected in the product area to meet the needs of different products

3. Ac parameter measurement module, can be set and adjusted not much input specifications

4. Built-in automatic smoke alarm protection device

5. After the failure of a single charging pile on the aging test bench, the continued testing of other charging piles will not be affected. When the monitoring platform detects that one or more charging piles are abnormal during the aging process, the system can automatically bypass the faulty charging piles and continue to test other charging piles (optional function)

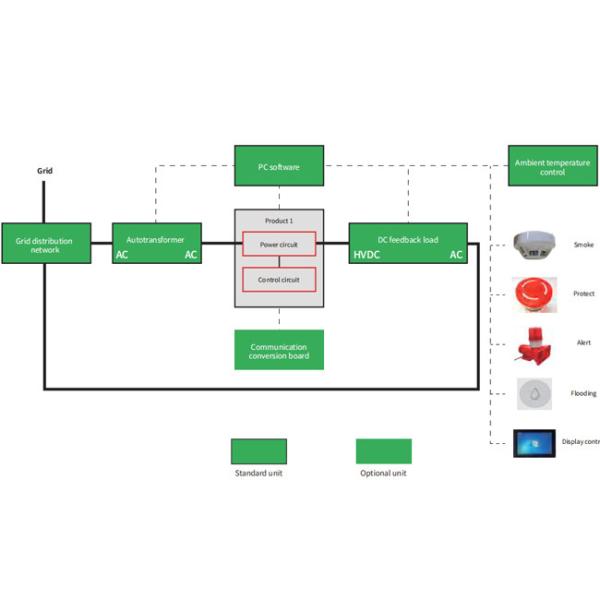

Architecture diagram
100kW EV Charger Burn In Chamber Burn In Test System For Portable DC Charging Piles
100kW EV Charger Burn In Chamber Burn In Test System For Portable DC Charging Piles

Performance parameters
100kW EV Charger Burn In Chamber Burn In Test System For Portable DC Charging Piles

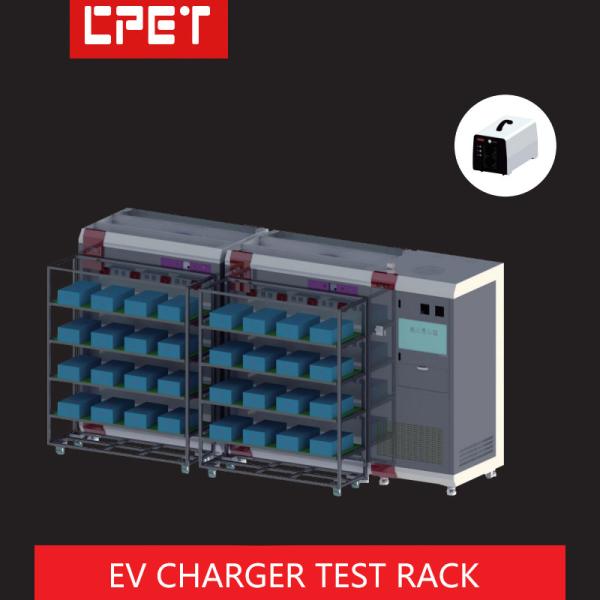

System System structure 1 control cabinet + 2 burn-in cabinets + 4 trolleys
Overall size 3800*1800*1900mm
Total floor area 3800*2500mm(Including operation area)
Total input voltage Three-phase five-wire system 220Vac (rated)
Total input current 200A
Total input power 100kW
Application ambient temperature 0-40℃
Application environment humidity 0-95%
Fire protection requirements Materials meet UL 94V0 rating
Environmental requirements Materials comply with Rohs, WEEE requirements
Safety requirements Comply with IEC62368 international standard design requirements
Burn-in cabinet Burn-in bits/cabinet 16 bits/cabinet
Burn-in product power 18kw/bits
Burn-in product input voltage 220Vac (single phase)/380Vac (three phase)
Burn-in product input current 32A/bit
Burn-in Product Load Category 15kW/bit
