AC Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment
AC Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment
AC Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment
AC Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment
AC Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment
AC Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment
Specifications
Brand Name :
CPET
Model Number :
CP-DC05
Place of Origin :
China
MOQ :
2sets
Price :
9100dollars/set
Payment Terms :
L/C
Supply Ability :
25sets/month
Delivery Time :
40 work days
Packaging Details :
Wooden case packing
Warranty :
1year months free warranty
Load bearing :
600kg
Total input current :
32A
Description
Ac Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment
Outstanding functions
AC Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment

1. The system application of gb, the rules, the rules, tesla products field, power 1.8 KW / 3.5 KW / 3.6 KW / 7 KW, 11 KW / 22 KW

2. The device supports multiple LOAD modes

3. The device can maintain communication with the host computer

4. Transfer cables are used between products; Product AC input/output are equipped with the corresponding acquisition module

5. A variety of laminate structures can be selected in the product area to meet the needs of different products

6. Ac parameter measurement module, can be set and adjusted not much input specifications

7. Built-in automatic smoke alarm protection device

8. After the failure of a single charging pile on the aging test bench, the continued testing of other charging piles will not be affected. When the monitoring platform detects that one or more charging piles are abnormal during the aging process, the system can automatically bypass the faulty charging piles and continue to test other charging piles (optional function)

9. The equipment itself overcurrent protection, short circuit protection and overtemperature protection, the use of the environment: indoor temperature -10~+50 ℃

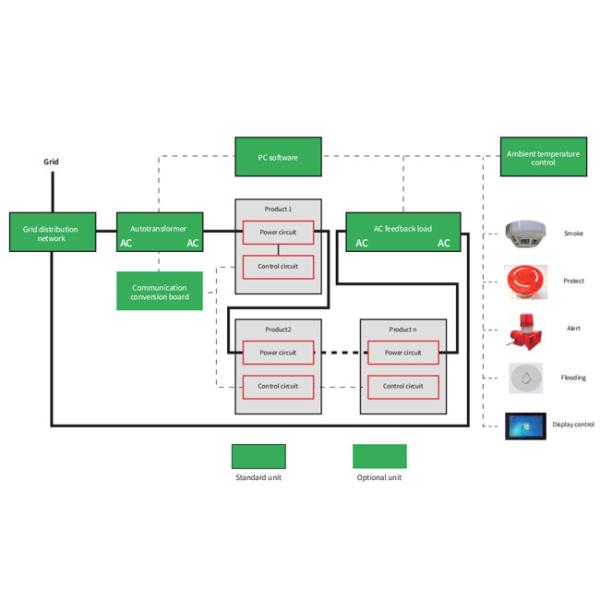

Architecture diagram
AC Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment
AC Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment

Performance parameters
AC Charging Pile Test Rack Electric Vehicle Battery Charger Aging Equipment
System System structure 1 control cabinet + 2 burn-in cabinets + 4 trolleys
Overall size 3800*1800*1900mm
Total floor area 3800*2500mm(Including operation area)
Total input voltage Three-phase five-wire system 220Vac (rated)
Total input current 32A
Total input power 18kW
Application ambient temperature 0-40℃
Application environment humidity 0-95%
Fire protection requirements Materials meet UL 94V0 rating
Environmental requirements Materials comply with Rohs, WEEE requirements
Safety requirements Comply with IEC62368 international standard design requirements
Burn-in cabinet Burn-in bits/cabinet 18 bits/cabinet
Burn-in bits/surface 9 bits/surface
Burn-in bits/layer 3 bits/layer
Burn-in product power 7.5kW (single-phase)/bit, 21kW (three-phase)/bit
Burn-in product input voltage 220Vac (single phase)/380Vac (three phase)
Burn-in product input current 32A/bit
Burn-in Product Load Category 7kW (single-phase)/bit, 19.5kW (three-phase)/bit
Burn-in product load current 220Vac (single phase)/380Vac (three phase)
Auxiliary voltage of Burn-in products 32A/bit
Auxiliary current of Burn-in products Universal plug (L1/ L2/ L3/N/PE)
Power Connector Type GB AC charging interface (L1/ L2/ L3/N/PE)
Signal Connector Type RJ45
Input power 21kW
Feedback power 19.5kW
Constant temperature range Room temperature
