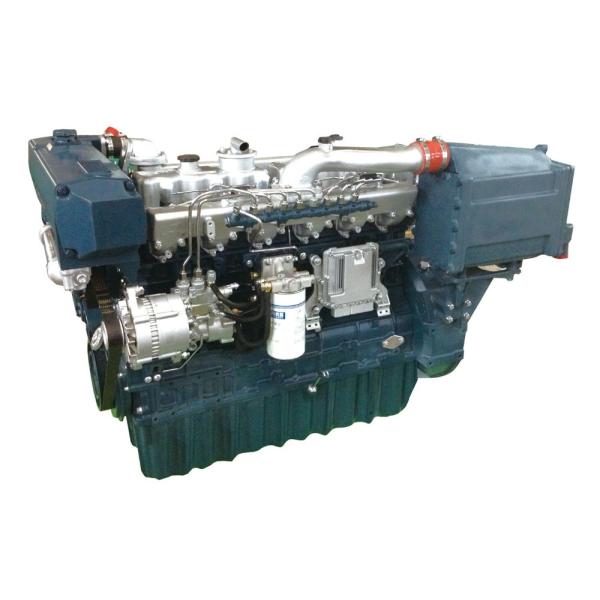

YC6A280L-C20 280HP Yuchai Marine Engine Water Cooling System
YC6A280L-C20 280HP Yuchai Marine Engine Water Cooling System
YC6A280L-C20 280HP Yuchai Marine Engine Water Cooling System
YC6A280L-C20 280HP Yuchai Marine Engine Water Cooling System
Specifications
Place of Origin :
Guangxi, China
Brand Name :
YUCHAI
Certification :
ISO9001
Supply Ability :
5000 Perch/Perches per Year
Packaging Details :
The normal package is wooden box. If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing
MOQ :
1 Piece/Pieces
Price :
$4,000.00 - $6,000.00 / Piece
Applicable Industries :
boat
After Warranty Service :
No service
Local Service Location :
None
Showroom Location :
None
Condition :
New
Stroke :
4 Stroke
Cylinder :
Multi-cylinder
Cold Style :
Water-cooled
Start :
Electric Start
Dimension(L*W*H) :
1415*910*1075mm
Weight :
770 kg
Warranty :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Product Name :
water cooling YUCHAI YC6A280L-C20 280HP marine engine
Engine Model :
YC6A280L-C20
Displacement :
7.252 L
Rated Power :
280HP/2500RPM
Starting system :
Electric Starter
Engine type :
Water-cooled 4-stroke
MOQ :
1set
Delivery time :
10 days
Port :
shanghai
Description
Product Description

280HP water cooling YUCHAI YC6A280L-C20 marine engine

The diesel engine has the highest thermal efficiency (engine efficiency) of any practical internal or external combustion engine due to its very high expansion ratio and inherent lean burn which enables heat dissipation by the excess air. A small efficiency loss is also avoided compared to two-stroke non-direct-injection gasoline engines since unburned fuel is not present at valve overlap and therefore no fuel goes directly from the intake/injection to the exhaust. Low-speed diesel engines (as used in ships and other applications where overall engine weight is relatively unimportant) can have a thermal efficiency that exceeds 50%.

Product name
280HP water cooling YUCHAI YC6A280L-C20 marine engine
Description
6 cylinders in line, water colling, 4 stroke,direct injection, turbocharged & intercooled
Rate power & RPM
280HP/2500RPM
Displacement
7.252 L
Fuel consumption
≤198 (g/kW•h)
Weight
770kg
Application
marine units
Warranty
1 year
Delivery
By sea,by air,by express
Package
1. Neutral Packing
2, As customer requirement
Futures
1, More rugged and reliable
2 , High torque output hence pulling power is high
3 , Gears are tall
4 , Fuel efficiency is high
5, Service requirement is less frequent
Model
Bore & Stroke
Displacement
Rated power & RPM
(kW(Ps)/r/min)
YC6A200L-C20
108×132
7.252 L
145(200)/1500
YC6108ZLCB
108×132
7.252 L
112(152)/1500
YC6A170C
108×132
7.252 L
125(170)/1500
YC6A190C
108×132
7.252 L
140(190)/1800
YC6A195C
108×132
7.252 L
145(197)/2300
YC6A220C
108×132
7.252 L
162(220)/2300
YC6A250L-C20
108×132
7.252 L
183(250)/2200
YC6A260L-C20
108×132
7.252 L
191(260)/2300
YC6A280L-C20
108×132
7.252 L
206(280)/2500
Detailed Image
YC6A280L-C20 280HP Yuchai Marine Engine Water Cooling System
YC6A280L-C20 280HP Yuchai Marine Engine Water Cooling System

* Felxible –can be customerized according to customer’s request, drawing will be submitted for approval. Such as taking off radiator and replacing with the heat exchanging system, total power solution such as gear box coupling and canopy design.

*Durability- With Cummins marine engines have been engineered to meet the durability and performance needs of marine applications and seawater cooling options and controls seamlessly integrated to ensure the propulsion for your vessel meets your needs.

* Long-Life Expectancy – these critical parts are manufactured by leading companies, other part comes from reliable manufacturers, these sets guarantee long functional life, outstanding performance, and high efficiency.

* Easy availability of the spare parts -- the key parts are same as parts for vehicle diesel engine,better exchange and universality and durable.

* Easy maintenance –Diesel engine not require heavy maintenance. It is very easy, safe, and simple to use. Well-planned and preventive maintenance measures are generally available for these sets which are also low in cost.
