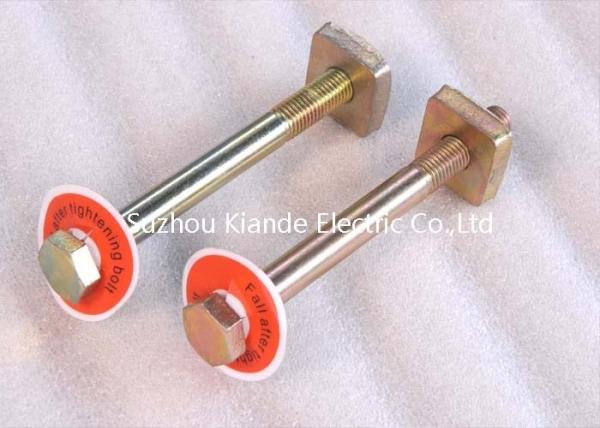

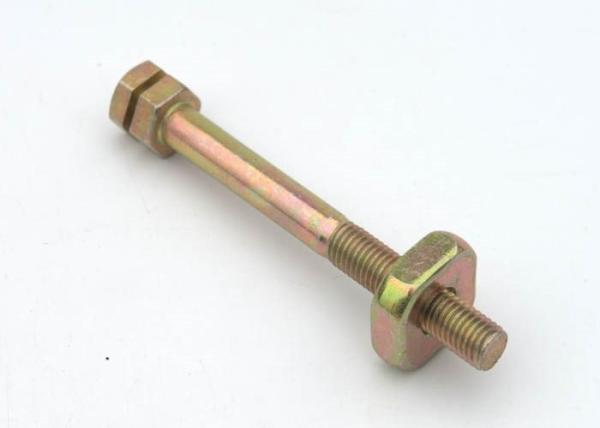

Double Head Grade 10.9S Busbar Joint Torque Bolt with Galvanized
Double Head Grade 10.9S Busbar Joint Torque Bolt with Galvanized
Double Head Grade 10.9S Busbar Joint Torque Bolt with Galvanized
Double Head Grade 10.9S Busbar Joint Torque Bolt with Galvanized
Double Head Grade 10.9S Busbar Joint Torque Bolt with Galvanized
Double Head Grade 10.9S Busbar Joint Torque Bolt with Galvanized
Specifications
Brand Name :
Kiande
Model Number :
K.A.L.J.M12
Certification :
ISO9001
Place of Origin :
China
MOQ :
10000 piece
Price :
customized
Payment Terms :
L/C, T/T
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
carton
Name :
M12 Joint Torque Bolt
Packing :
Plywood case
Usage :
used for busbar joint
Material :
High tensile steel
Other name :
High Tensile Double Head Bolt
Other name 2 :
Shear off Nut
Other name 3 :
Busbar Joint Torque Bolt
Description

Double Head Grade 10.9S Busbar Joint Torque Bolt with Galvanized

Features


Installed in joint for insulation
Material: 8.8 grade high tensile steel
Size and color can be customized

Model Class Size of Square Nut Thread Length Torque Force Color
M12*115 8.8 30*30mm/27*27mm 45~65mm 70 ~90 N.M Yellow/White Galvanized
M12*120 8.8 30*30mm/27*27mm 45~65mm 70 ~90 N.M Yellow/White Galvanized
M12*125 8.8 30*30mm/27*27mm 45~65mm 70 ~90 N.M Yellow/White Galvanized
M12*130 8.8 30*30mm/27*27mm 45~65mm 70 ~90 N.M Yellow/White Galvanized
M12*140 8.8 30*30mm/27*27mm 45~65mm 70 ~90 N.M Yellow/White Galvanized
M12*165 8.8 30*30mm/27*27mm 45~65mm 70 ~90 N.M

Yellow/White Galvanized

Double Head Grade 10.9S Busbar Joint Torque Bolt with Galvanized

Installation Guideline Of Busduct Joint
Step1:dentify the correct joint stack (either 4W or 5W) and its phase orientation before Busduct joint pack installation

Step2: Align and connect both busduct terminal with joint stack connector.

Step3:Joint stack stopper acts a guideline to ensure a full contact surface of the overlapping conductors.

Step4: Tighten the double headed bolt by using socket wrench untile the outer head shear off.

Step5:Place joint pack covers on both sides of the busduct joint section and tighten all the bolts and nuts with socket wrench.
