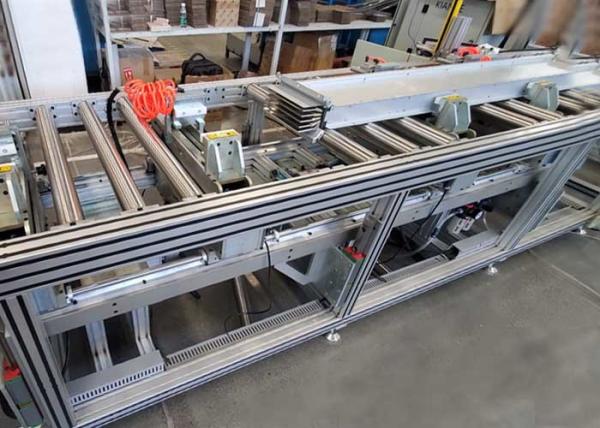

Low Voltage Plug In Busway Busbar Machine Horizontal Assembly
Low Voltage Plug In Busway Busbar Machine Horizontal Assembly
Low Voltage Plug In Busway Busbar Machine Horizontal Assembly
Low Voltage Plug In Busway Busbar Machine Horizontal Assembly
Low Voltage Plug In Busway Busbar Machine Horizontal Assembly
Low Voltage Plug In Busway Busbar Machine Horizontal Assembly
Specifications
Brand Name :
Kiande
Model Number :
KD-ZDX/H-4-4.5
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$USD 35000~50000 per set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
15 days
Packaging Details :
plywood case
Name :
Busbar Machine
Riveting :
Manual Riveting
Max. Busbar Height :
330mm
Max. Busbar Length :
6000mm
Working Efficiency :
Around 3000mm/4min
Length of Reversal Part :
4500mm
Manual Operation Station Length :
1500mm
Power :
380~415VAC 50~60Hz 5kW
Suit for :
Low Voltage Busway
Other name :
Busway Horizontal Assembly Machine
Other name 2 :
Plug-In Busway Machine
Other name 3 :
Low Voltage Busway assembly machine
Description

Busbar Machine for Low Voltage Plug-In Busway Horizontal Assembly

Comparison with manual assembly machine, this kind of assembly line (called Second Generation Semi-automatic Busbar Assembly line) is updated to solve the 180°reversal problems on heavy and long busbar.It is designed with 2 rotators for max 4m busbar production.

Function introduction

Semi-automatic assembly line is composed of three parts, pre-assembly station, automatic reversal station and accessory assembly station.

Pre-assembly station: Operators will pre-assemble and fix busbar main parts by the fixtures and transfer the busbar to the automatic reversal station manually.

Automatic reversal station: When busbar arrives in the reversal station, operator shall fix the busbar by clamp and start riveting on one side. After one side is done, rotators will be reversed 180 degrees for other side’s riveting.

Accessory assembly station: After busbar is riveted, operator will assemble the busbar accessories at this station.

Equipment data on semi automatic busbar assembly line

No. Parameters
Model KD-ZDX/H-4-6(4.5)

Max. Busbar Height

330mm (Single Layer)

Max. Busbar Length

 6000mm

Working Efficiency

 Around 3000mm/4min
Riveting Machine Not included
Rotator Nos 4 sets (standard)

Length of Reversal Part

 4500mm

Manual Lifting Fixture Nos

3 pieces

Manual Operation Station Length

 1500mm
Hanger Material Aluminum hanger
Riveting Type Manual riveting
Power 380~415VAC 50~60Hz 5kW
Equipment Dimension L18000mm*W800mm*H1900mm

Low Voltage Plug In Busway Busbar Machine Horizontal Assembly
