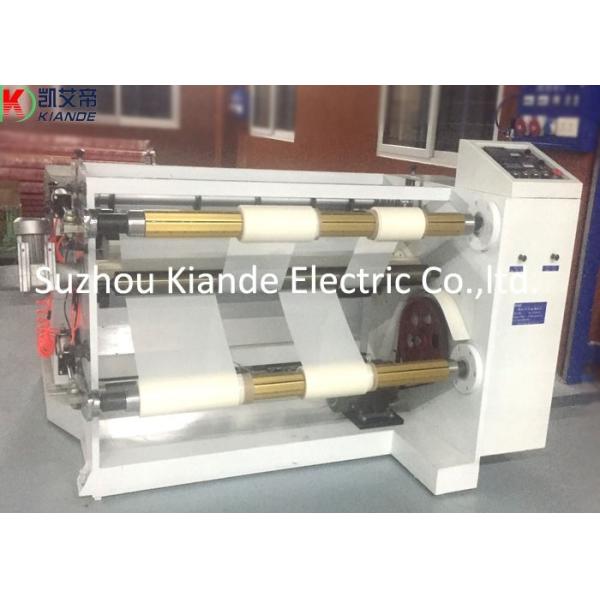

Polyester Film Cutting Machine Busduct Bar Insulation Wrapping
Polyester Film Cutting Machine Busduct Bar Insulation Wrapping
Polyester Film Cutting Machine Busduct Bar Insulation Wrapping
Polyester Film Cutting Machine Busduct Bar Insulation Wrapping
Polyester Film Cutting Machine Busduct Bar Insulation Wrapping
Polyester Film Cutting Machine Busduct Bar Insulation Wrapping
Specifications
Brand Name :
Kiande
Model Number :
KD-FQJ-1300
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Customized
Payment Terms :
L/C, T/T
Supply Ability :
10set/month
Delivery Time :
45 working days
Packaging Details :
plywood case
Name :
Polyester Film Cutting Machine
Model :
KD-FQJ-1300
Max. Diameter of Raw Materials :
700mm
Slitting Width :
50mm-1200mm
Slitting Speed :
0-300m/min
Max. Width of Raw Materials :
1200mm
Scroll Diameter :
3 inches
Air Source :
0.6MPa
Equipment Dimension :
L1600mm*W1800mm*H1500mm
Description

Polyester Film Cutting Machine used for Busduct Bar insulation Wrapping

Features


This machine is a high-precision, high-sensitivity slitting equipment. Rewinding and unwinding adopt high-precision air expansion shafts. The tension is freely adjusted by a magnetic powder clutch. The unwinding correction adopts imported air-sensitive automatic correction control, which can realize Automatic detection (any material is ok), automatic deviation correction, automatic meter count, anti-scratch material, automatic shutdown of the set length, fast speed, accurate cutting, simple operation, etc.

Function introduction

Mylar film slitting machine is mainly used for cutting busbar polyester film. It’s composed of three parts: feeding, cutting and discharging. Length and width can be set according to requirement.

Equipment data on mylar film slitting machine

No. Parameters
Model KD-FQJ-1300

Max. Width of Raw Materials

 1200mm

Max. Diameter of Raw Materials

 700mm

Slitting Width

 50mm-1200mm
Scroll Diameter 3 inches

Slitting Speed

 0-300m/min

Length Control

Meter counter
Power 220V~415VAC 50~60Hz 3kW
Air Source 0.6MPa
Equipment Dimension L1600mm*W1800mm*H1500mm

Polyester Film Cutting Machine Busduct Bar Insulation Wrapping

Polyester Film Cutting Machine Busduct Bar Insulation WrappingPolyester Film Cutting Machine Busduct Bar Insulation Wrapping
