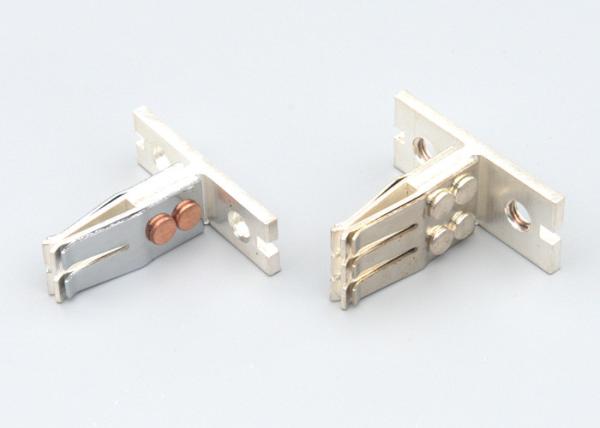

Compact Busbar Socket Copper Pins Busbar Accessories plug stab fingers
Compact Busbar Socket Copper Pins Busbar Accessories plug stab fingers
Compact Busbar Socket Copper Pins Busbar Accessories plug stab fingers
Compact Busbar Socket Copper Pins Busbar Accessories plug stab fingers
Compact Busbar Socket Copper Pins Busbar Accessories plug stab fingers
Compact Busbar Socket Copper Pins Busbar Accessories plug stab fingers
Specifications
Certification :
ISO9001
Brand Name :
Kiande
Place of Origin :
China
MOQ :
100piece
Price :
Customized
Payment Terms :
T/T
Supply Ability :
1000000piece
Delivery Time :
10days
Packaging Details :
carton box
Model :
KDT-15-5
Current :
0-100A
Busbar Size :
4/5mm
Type :
Compact busbar plug
Lifespan :
4 years
Description

Compact Busbar Socket Copper Pins Busbar Accessories plug stab fingers

Model Current Busbar Size Type Remark
KDT-15-5 0-100A 4/5mm Compact busbar plug T Type
KDT-18-5 100-200A 4/5mm Compact busbar plug T Type
KDT-22-5 250-350A 4/5mm Compact busbar plug T Type
KDT-30-5 400-630A 4/5mm Compact busbar plug T Type
KDT-15-6 0~200A 6mm Compact busbar plug T Type
KDT-18-6 250-350A 6mm Compact busbar plug T Type
KDT-28-6 400-630A 6mm Compact busbar plug T Type
KDF-125 0-125A 19 phase distance,
22 phase distance,
26 phase distance above		 Air busbar plug F Type
KDF-160 125~160A Air busbar plug
KDF-250 160-250A Air busbar plug
KDF-630 315~630A Air busbar plug

Installation Guideline of Tap Off Unit (Plug-In Type)

There are two types of plug-in tap-off units :

1) Plug-in tap-off units without automatic clamping system .

2) Plug-in tap-off units with automatic clamping system.
Step 1: Open or remove the tap-off unit cover.

Step 2: Install the protection device in the tap-off unit.

Step 3: Remove the IP protection on the outlet of the run component.

Step 4: Prepare the output cable glands and connect the cables to the tap-off unit.

Step 5: Check that the protection device is switched off and carefully inspect the tap-off unit for tools and objects that may have been left inside the tap-off unit.

Step 6: Position the rear of the tap-off unit on the run component.

Step 7: Plug the tap-off unit into the run component.

Step8: Lock the tap-off unit on the run component using the locking handle located inside the tap-off unit

Step9: Secure the tap-off unit on the run component using the fixing mechanism.

Step10: Close the tap-off unit cover. The system and the load are ready to be energized.
Compact Busbar Socket Copper Pins Busbar Accessories plug stab fingersCompact Busbar Socket Copper Pins Busbar Accessories plug stab fingers

Compact Busbar Socket Copper Pins Busbar Accessories plug stab fingers
