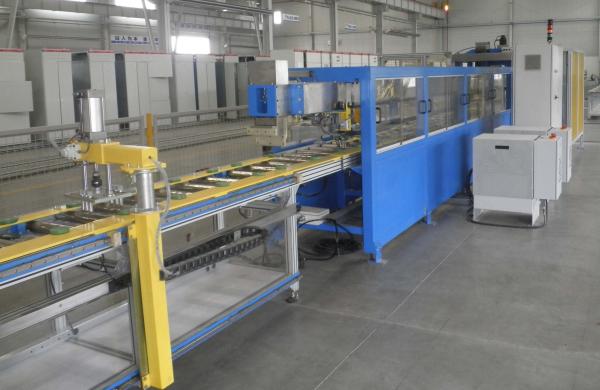

Automatic Riveting Busduct Production Line For Future Data Analysis
Automatic Riveting Busduct Production Line For Future Data Analysis
Automatic Riveting Busduct Production Line For Future Data Analysis
Automatic Riveting Busduct Production Line For Future Data Analysis
Automatic Riveting Busduct Production Line For Future Data Analysis
Automatic Riveting Busduct Production Line For Future Data Analysis
Specifications
Brand Name :
Kiande
Model Number :
KD-ZDX/NC-2D-6
Place of Origin :
China
MOQ :
1 set
Price :
$USD 650000~70000 per set
Payment Terms :
L/C, T/T
Supply Ability :
5 sets two months
Delivery Time :
60 days
Packaging Details :
plywood case
Certification :
ISO9001
Name :
Bus Bar Assembly Machine
Max. Busbar Height :
350mm (Single layer)
Feature :
Durable
Control Axis :
5 Axis
Power :
380~415VAC 50~60Hz 20kW
Equipment Dimension :
L25000mm*W2000mm*H19000mm
Max. Busbar Length :
6000mm
Working Efficiency :
Around 3000 mm/2 min
Frame :
Aluminum
Other name :
automatic busbar assembly line
Other name 2 :
automatic busbar riveting machine
Other name 3 :
sandwich busduct production line
Other name 4 :
compact busway assembly line
Description

Automatic Riveting Busduct Production Line For Future Data Analysis

Equipment data on automatic busbar assembly line

No. Parameters
Model KD-ZDX/NC-2(4)D-6(4.5)

Max. Busbar Height

350mm (Single layer)

Max. Busbar Length

 6000mm
Position Type Unilateral position/ Middle position
Working Efficiency Around 3000 mm/2 min
Control Axis 5 Axis

Control System

Network control, Online maintenance (optional)

Riveting Station Nos

sets (Four-piece type)/2 sets (Two-piece type)
Riveting Type Automatic riveting
Power 380~415VAC 50~60Hz 20kW
Equipment Dimension L25000mm*W2000mm*H19000mm

Function introduction

By automatic assembly and fixing, the automatic assembly machine will help to reduce manpower and improve the product quality and working efficiency. The working principle is to recognize the busbar type and adjust all the parameters in the machine automatically by scanning the bar code. By module interconnection among PLC, network, touch screen and IPC etc., automatic assembly machine can also achieve information communication with ERP, automatic inspection machine and other related machines.

Automatic assembly line is customized according to clients’ busbar type. It can achieve unmanned operation no matter the busbar is fixed by rivet or bolt. Currently the busbar type is mainly divided into two types: two-piece type and four-piece type.

Besides that, automatic assembly machine has self-checking functions by self diagnosing each input and output signal to avoid failures. Furthermore, data statistics for machine’s OEE (comprehensive utilization rate) is helpful for future data analysis.

FAQ

Q1: How does your factory do regarding quality control?
A1: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.

Q2: What’s the guarantee if we purchase from you?
A2: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any wearing part be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free.

Automatic Riveting Busduct Production Line For Future Data Analysis

Automatic Riveting Busduct Production Line For Future Data Analysis
