Shear off Bolts High Tensile Grade 8.8 Busbar Joint Double Head Bolt
Shear off Bolts High Tensile Grade 8.8 Busbar Joint Double Head Bolt
Shear off Bolts High Tensile Grade 8.8 Busbar Joint Double Head Bolt
Shear off Bolts High Tensile Grade 8.8 Busbar Joint Double Head Bolt
Specifications
Brand Name :
Kiande
Model Number :
K.A.L.J.120
Certification :
ISO9001
Place of Origin :
China
MOQ :
10000 piece
Price :
customized
Payment Terms :
L/C, T/T
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
carton
Name :
Double Head Bolt
Packing :
plywood
Usage :
used for busbar joint
Material :
High tensile steel
Application :
Fix
Other name :
High Tensile Double Head Bolt
Other name 2 :
Shear off Nut
Other name 3 :
Busway Joint Double Head Bolt
Description

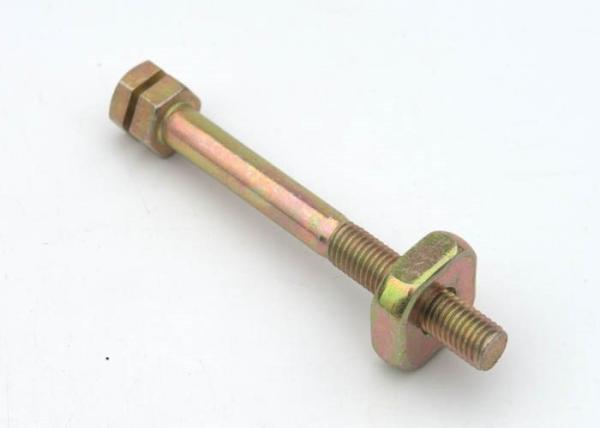

Shear off Bolts High Tensile Grade 8.8 Busbar Joint Double Head Bolt

Features


Installed in joint for insulation
Material: 8.8 grade high tensile steel
Size and color can be customized

Model Class Size of Square Nut Thread Length Torque Force Color
M12*115 8.8 30*30mm/27*27mm 45~65mm 70 ~90 N.M Yellow/White Galvanized
M12*120 8.8 30*30mm/27*27mm 45~65mm 70 ~90 N.M Yellow/White Galvanized
M12*125 8.8 30*30mm/27*27mm 45~65mm 70 ~90 N.M Yellow/White Galvanized
M12*130 8.8 30*30mm/27*27mm 45~65mm 70 ~90 N.M Yellow/White Galvanized
M12*140 8.8 30*30mm/27*27mm 45~65mm 70 ~90 N.M Yellow/White Galvanized
M12*165 8.8 30*30mm/27*27mm 45~65mm 70 ~90 N.M

Yellow/White Galvanized

Busbar Trunking System is the is a system of distributing electric power using copper or aluminium busbar with suitable enclosures and good amount of protection to prevent the cables from getting damaged due to foreign bodies. ... The system of cooling is much better than traditional cabling system.

What is Busduct Joint component?

Joint block is operatable by one / two shear off bolts.

Joint assembly can be removed / installed at any time in installed condition.

Disc spring washer are used in Uniblock joint to uniformly distribute pressure.

Recommended torque for tightening is 7 Kg-mtr.

These joints are specially designed to accommodate thermal expansion of busbars and housing.
