Adjustable Angle Single Head Saw For Aluminum Metal Alloy Window
Adjustable Angle Single Head Saw For Aluminum Metal Alloy Window
Specifications
Brand Name :
Kiande
Model Number :
KD-DTJ328B
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100set/ month
Delivery Time :
10 work days
Packaging Details :
plywood case
Name :
Adjustable Angle single head saw
 Saw cutting length :
80-2080mm (3080mm)
 Saw cutting  :
230 x 150mm/280x 100mm
Main motor speed :
2850r/min
Saw blade size :
φ 500 x φ30 x 120T
Saw blad swing angle :
90° ~45°
Saw feeding speed :
0-3m/min
Saw return speed :
2-3m/min
Description

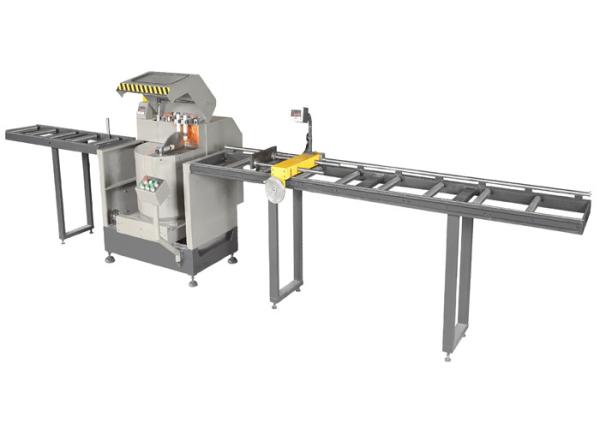

Adjustable Angle single head saw

It is mainly used for the cutting and blanking of aluminum alloy profiles and plastic profiles. The use of cemented carbide train pieces has an outer diameter of 550 ", high linear speed and high processing accuracy. Italian straight out motor, with high cutting accuracy and good stability, is more suitable for arbitrary angle cutting of aluminum alloy profile

1. Used for cutting aluminum at 0°-135°.

2. Primarily used for cutting of all kinds of aluminum metal alloy window profiles.

3. May also used for the cutting of other aluminum profiles.

No. Parameters
Model KD-DTJ328B
Saw cutting length 80-2080mm (3080mm)
Saw cutting 230 x 150mm/280x 100mm
Main motor speed 2850r/min
Saw blade size φ 500 x φ30 x 120T
Saw blad swing angle 90° ~45°
Saw feeding speed 0-3m/min
Saw return speed 2-3m/min
Working pressure 0.6~0.8Mpa
Dimension 1000(7000)*1300*1360mm
Power 380-415VAC50-60Hz 5.5KW

Adjustable Angle Single Head Saw For Aluminum Metal Alloy Window

FAQ
Q: What is your delivery date?
A: The delivery date is about 5-7 working days after receive the payment.

Q: What is your payment terms?
A: TT 100% payment in advance.

Q: This machine is easy to use ? if I have no experience, I can also operate it well ?
A: Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it
will much faster to learn.

Q: Do you provide the user manual and operating videos to support us ?
A: We will provide the English user manual for free , and the operation video is available.Our software is all English.
