Aluminum Conductor Compact Busbar Joint For Sandwich Busway System Connection Various Ampere
Aluminum Conductor Compact Busbar Joint For Sandwich Busway System Connection Various Ampere
Aluminum Conductor Compact Busbar Joint For Sandwich Busway System Connection Various Ampere
Aluminum Conductor Compact Busbar Joint For Sandwich Busway System Connection Various Ampere
Specifications
Brand Name :
Kiande
Model Number :
KDT-1000A
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100 piece
Price :
Custmized
Payment Terms :
L/C, T/T
Supply Ability :
100000/days
Packaging Details :
carton box or plywood case
Name :
Busbar Joint
Function :
connection between two pieces busduct systems
Current :
400A-2000A
Phase distance :
16mm, 24mm
Design :
one bolt design
Type :
Aluminum conductor
Lifespan :
4 years
Description

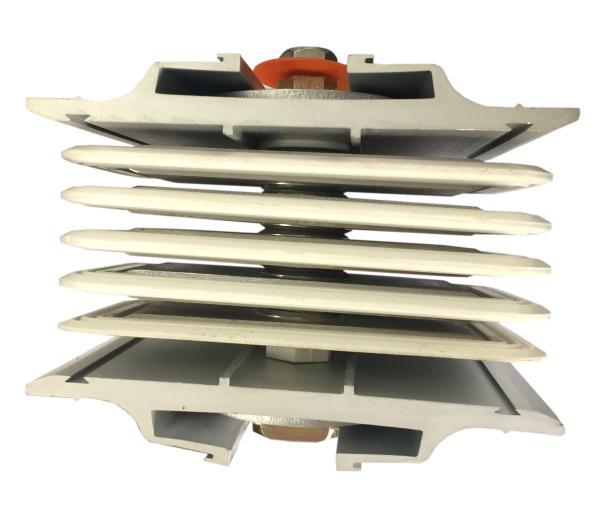

Compact busbar joint block for sandwich busway system connection with various ampere design

Busduct joint is used to connect two elements of the busbar systems, it can be fitted or removed in installed condition without removal of the adjacent sections or elements .The torque nut ensures tigthness of joints at desired torque and eleminates the need of torque wrench during installation. Heavy-duty side plates and Belleville washers ensures uniform distribution of pressure. Joints can be tightened easily with the help of a spanner on one side only.

No.

Parameter

Product name

Busbar Joint

Current rating

400A-4000A

Material

Copper or aluminum

Aluminum Conductor Compact Busbar Joint For Sandwich Busway System Connection Various Ampere

Busduct joint

This joint stack design has taken into the consideration of a bigger contact surface of the conductors in order to reduce power loss and improve cooling performance.

Double headed joint bolts together with Belleville washer ensure a sufficient pressure required to secure each joint connection.

The double headed joint bolt is also designed with a specific torque value whereby the outer head of the joint bolt (which acts as

tightness indication) will shear off when it reaches the limit and this will prevent over tightening of the joint section.

Installation Guidence of Busduct Joint
Step1:dentify the correct joint stack (either 4W or 5W) and its phase orientation before Busduct joint pack installation

Step2: Align and connect both busduct terminal with joint stack connector.

Step3:Joint stack stopper acts a guideline to ensure a full contact surface of the overlapping conductors.

Step4: Tighten the double headed bolt by using socket wrench untile the outer head shear off.

Step5:Place joint pack covers on both sides of the busduct joint section and tighten all the bolts and nuts with socket wrench.
