Automatic Inspection Busbar Machine Servo Drive For HV Withstanding Test
Automatic Inspection Busbar Machine Servo Drive For HV Withstanding Test
Automatic Inspection Busbar Machine Servo Drive For HV Withstanding Test
Automatic Inspection Busbar Machine Servo Drive For HV Withstanding Test
Automatic Inspection Busbar Machine Servo Drive For HV Withstanding Test
Automatic Inspection Busbar Machine Servo Drive For HV Withstanding Test
Specifications
Brand Name :
Kiande
Model Number :
KD-JCX/NC-E/H-6
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10set/month
Delivery Time :
45 working days
Packaging Details :
plywood case
Name :
Busbar Automatic Production Line
Power :
380~415VAC 50~60Hz 5kW
Grounding Test :
0~25A
Insulation Test :
1~1000V
High Voltage Withstanding Test :
0~5000V
Servo Nos :
2 axis( Z axis/X axis)
Busbar Length :
1200mm~6000mm
Busbar Height :
100mm~650mm
Equipment Dimension :
L12000mm*W1200mm*H1900mm
Description

Automatic Busbar Inspection Machine with High Voltage Withstanding Insulation Resistance Grounding Test Functions

The main drive part of the machine adopts the popular servo drive form, with novel structure, abundant power and easy operation.No oil pollution for the work area, noise reduction, small occupation area, environmental protection and practical. The output force can reach 350KN, the servo drive easily controllable, and precisely and accurately linked with the PLC. It is enough to realize the functions of fast forward, fast retreat and slow inching, which can improve the processing efficiency and ensure the accuracy of bending, which is unmatched by hydraulic drive machines. Equipped with high-power, large inertia servo motor, optional bending die to achieve horizontal bending, vertical bending, twisting and other processing functions.

Feature

the inspection machine is controlled by PLC and can generate the inspection report which can be printed.

To inspect busbar withstanding voltage value and insulation resistance.

Fuction

HV withstanding test, insulation resistance test and grounding test

Function introduction

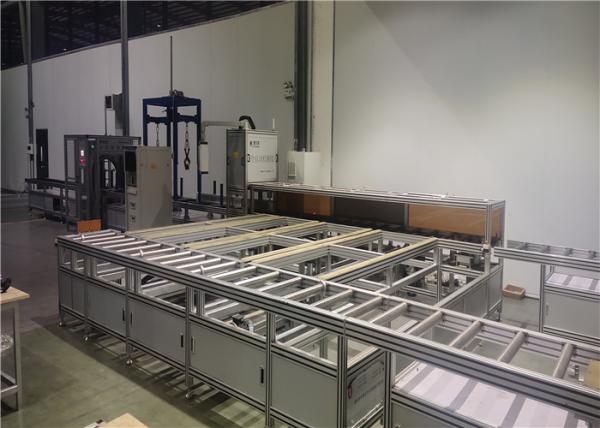

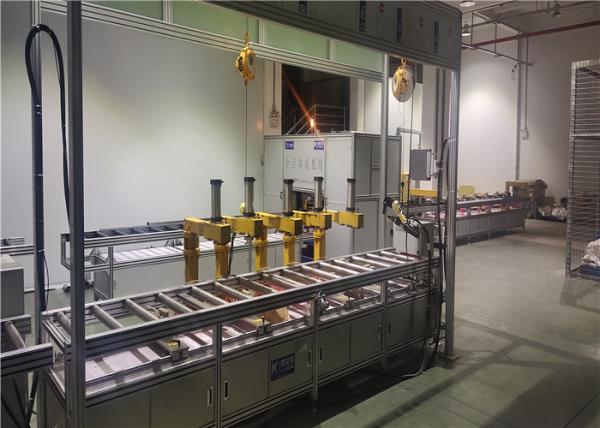

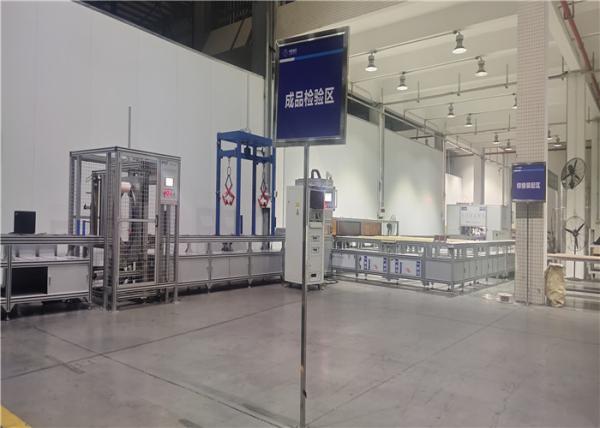

Busbar Automatic Production Line is composed of three parts, feeding positioning station, inspection station and discharge station. When the busbar enters the feeding position, the control system will select the right testing fixture to start testing from the information identified by bar code or previous assembly line. Three tests will be performed including HV withstanding test, insulation resistance test and grounding test. After test is finished, testing report will be generated.

Equipment data on automatic busbar inspection line

No. Parameters
Model KD-JCX/NC-E/H-6
Busbar Height 100mm~650mm
Busbar Length 1200mm~6000mm
Busbar Type Straight length type
Position Type Unilateral / Middle

Working Efficiency

2 min/piece(testing time is adjustable.)
Servo Nos 2 axis( Z axis/X axis)

Vision System

Phase error judgment( optional)

Printing System

Bar code printing/ Report printing( optional)

High Voltage Withstanding Test

 0~5000V
Insulation Test 1~1000V
Grounding Test 0~25A

Power

 380~415VAC 50~60Hz 5kW
Equipment Dimension L12000mm*W1200mm*H1900mm

Automatic Inspection Busbar Machine Servo Drive For HV Withstanding Test

Automatic Inspection Busbar Machine Servo Drive For HV Withstanding Test

Automatic Inspection Busbar Machine Servo Drive For HV Withstanding Test
