Specifications
Brand Name :
DOWE
Model Number :
SM40
Certification :
CE ROHS UL
Place of Origin :
China(Mainland),Zhejiang
MOQ :
500pcs
Price :
USD0.21-0.5pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000pcs per day
Delivery Time :
7days
Packaging Details :
inner box with carton
Product name :
bus bar insulator
Type :
SM40
voltage :
10KV
Torgue strength(FT LBS) :
1000
Screw :
8mm
Screw deep :
11mm
Insert :
brass,steel,aluminum
Material :
DMC/BMC,SMC
Sample :
free
Description

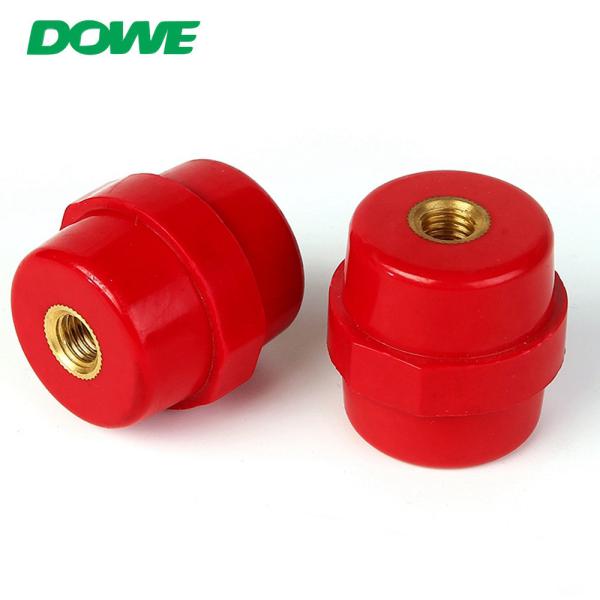

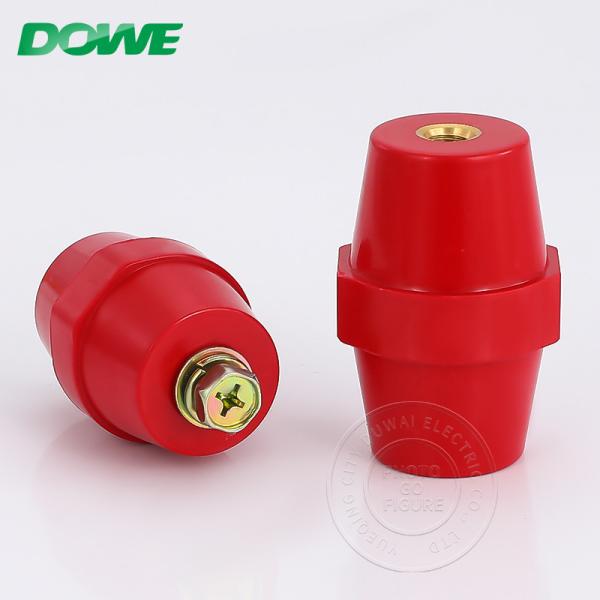

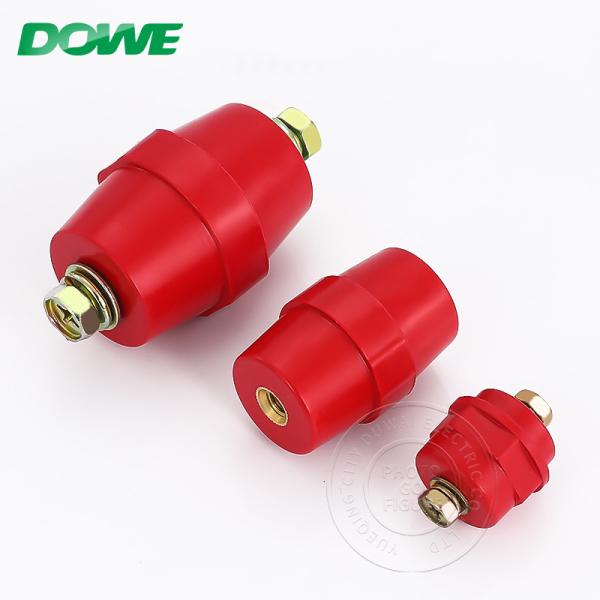

DUWAI SM40 Brass Insert Low Voltage Busbar Insulator Standoff Insulator Support Isolator

Product Description

Insulating Connector Bus bar Insulator SMC series

Operating temperature:-40--+140

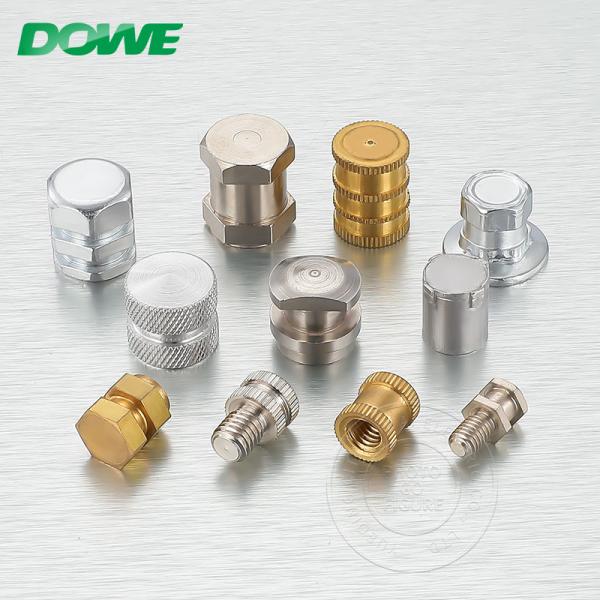

Insert:Brass.steel with Zn coating
Material:BMC(bough moulding compound)
SMC(sheet moulding compound)
Color,insert,mateerial in capability accordance with customer need.

Specifications

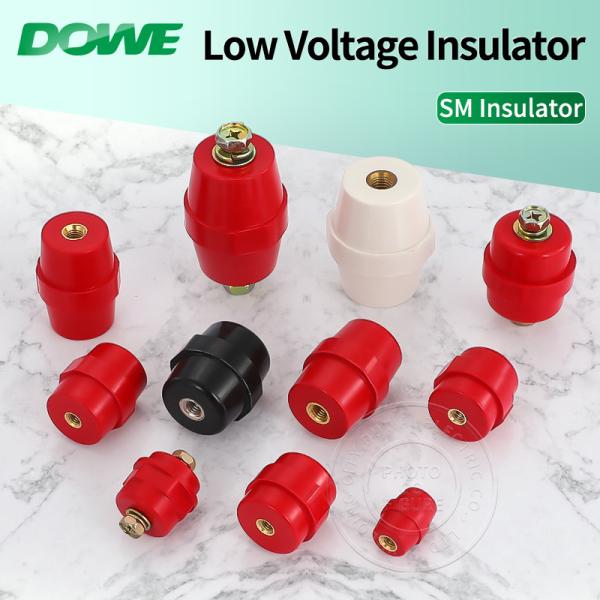

1.Size: SM25,SM30,SM35,SM40,SM45,SM51,SM76,SM-7105,SM-7100,SM-7120,SM-7160

2.Tensile strength:600LBS
3.Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties

Values

Style

SM-25

SM-30

SM-35

SM-40

SM-51

SM-76

Temsile strength(lbs)

500

550

600

650

1000

1500

Torgue strength(fr lba)

6

8

10

10

20

40

Voltage withstand(kv)

6

8

10

12

15

25

Screw(mm)

6

8

8

8

8

10

Weight(g)

28

44

50

56

83

233


Advantages:
The products have excellent insulation properties,high strenght,high temperature resistant,safe and reliable,tated voltage 660V is good choice for low voltage power distribution cabinet fixed bus.

Using SMC unsaturated resin hot pressing. Mainly used for high and low voltage power distribution cabinet,inverter,power distribution box,supporting the connecting bus etc.

The product has excellent insulation properties,high strength,high teperature resistant,safe and reliable,rated voltage up to 660V is the best choice for low voltage power distribution cabiner fixed bus.

Model Diameter Height Screw
SM20 17 20 M5/M6
SM25 30 25 M5
SM30 32 30 M6/M8
SM35 32 35 M6/M8
SM40 40 40 M6/M8
SM45 36 45 M6/M8
SM51 36 51 M8/M10
SM60 46 60 M8/M10
SM76 50 76 M10/M12
SM80 50 80 M10/M12
SM100 65 100 M10

SM40 Brass Insert Busbar Support Insulator Low Voltage StandoffSM40 Brass Insert Busbar Support Insulator Low Voltage StandoffSM40 Brass Insert Busbar Support Insulator Low Voltage Standoff
