Specifications
Brand Name :
DOWE
Model Number :
SEP2519
Certification :
SDS
Place of Origin :
China(Mainland),Zhejiang
MOQ :
5000pcs
Price :
USD0.19pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per week
Delivery Time :
7days
Packaging Details :
carton
Product Name :
hexagonal insulator
Type :
hexagonal type
Sample :
free
voltage :
660V
Dimension :
25*19
Torgue strength(FT LBS) :
≥10N/M
Material :
DMC/BMC
Operating Temperature :
30℃~120℃
Application :
electrical application
Color :
customized
Description

DUWAI China Support Different Size Busbar Sep2519 Heat Fire Hexagonal Insulator For Electrical Car New Energy

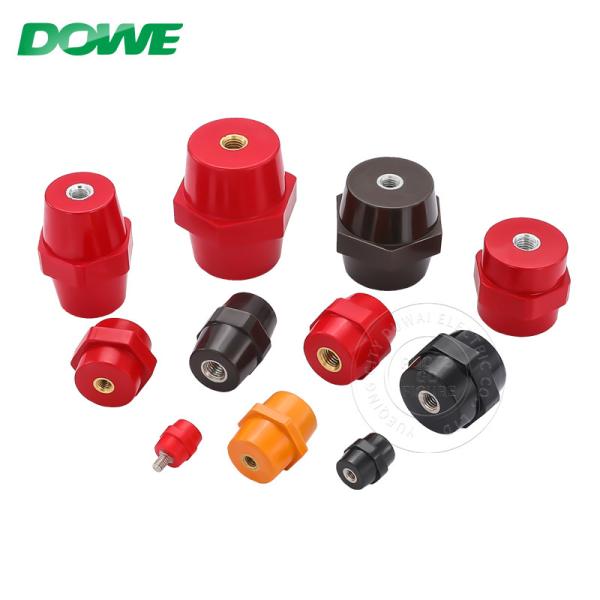

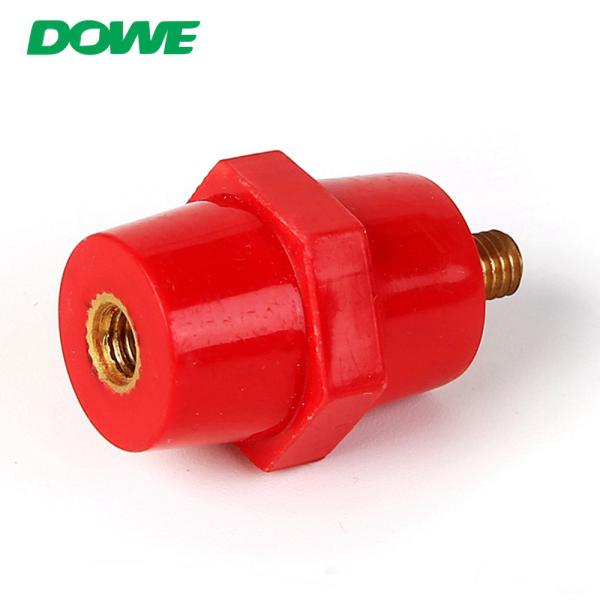

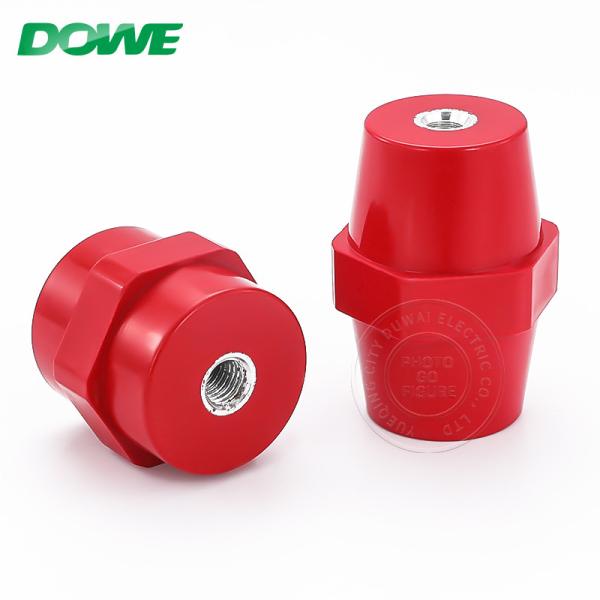

Bus bar insulators are used to fasten current-carrying buses inside power cabinets and assemblies in order to fix and isolate current-carrying parts from the case and assembly panels, with subsequent connection of power conductors for power distribution inside the shield. The insulator is fastened on one side with a bolt to the mounting plate or housing, on the other hand, a current-carrying busbar is attached to the insulator. Each bar is mounted on at least two insulators (at the ends of the bar), and intermediate insulators can also be installed (depending on the installation scheme and the length of the bar).

  • Operation Temperature:-40~140℃

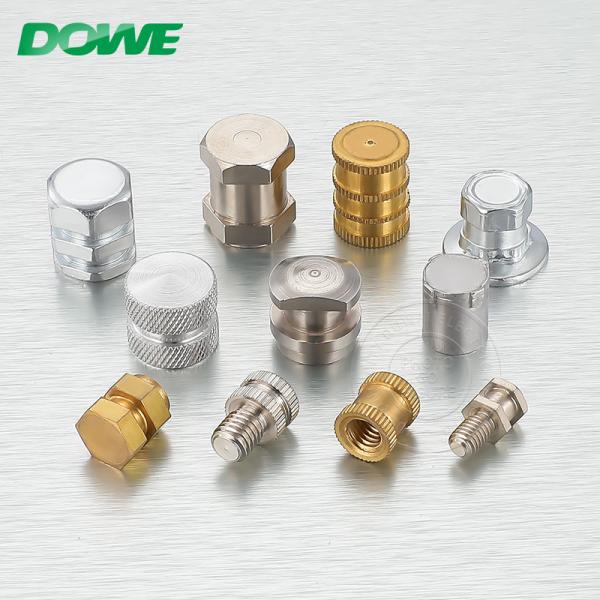

  • Insert :Brass, Steel with Zn Coating

  • Material: BMC/SMC

  • Color/Insert/Screw/Apprance could be coustomized.

  • Please check the detail in below form.

Model Diameter Height Screw
SEP1615 15 16 M4/M5
SEP2019 19 20 M4/M5/M6
SEP2519 19 25 M5/M6
SEP2522 22 25 M4/M5/M6
SEP2525 25 25 M8
SEP3030 30 30 M6/M8/M10
SEP3040 40 30 M8/M10
SEP3532 32 35 M8/M10
SEP3540 40 35 M8/M10
SEP3541 41 35 M6/M8/M10
SEP4041 41 40 M8/M10/M12
SEP4046 46 40 M8/M10/M12
SEP4546 46 45 M8/M10/M12
SEP5036 36 50 M6/M8/M10
SEP5046 46 50 M10
SEP5050 50 50 M8/M10/M12
SEP6060 60 60 M8/M10/M12
SEP6541 41 65 M8/M10/M12
SEP7060 60 70 M10/M12/M16
SEP7550 50 75 M8/M10/M12

Sep2519 Busbar Support Insulator Heat Fire Hexagonal For Electrical CarSep2519 Busbar Support Insulator Heat Fire Hexagonal For Electrical CarSep2519 Busbar Support Insulator Heat Fire Hexagonal For Electrical Car
