Specifications
Brand Name :
DOWE
Model Number :
H60X250
Certification :
CE,SGS
Place of Origin :
CHINA
MOQ :
1piece
Price :
USD1-99
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
1000/DAY
Delivery Time :
5-8DAYS
Packaging Details :
CARTON
Name :
tow chain
Product Name :
H60 tow chain
inner diameter :
60mm*250mm
outer diameter :
80mm*281mm
Function :
machine tool accessories
Bend radius :
R125/R150/R200/R300/R400/R500
Temperature range :
-40 ~125
Material :
PA66
Description

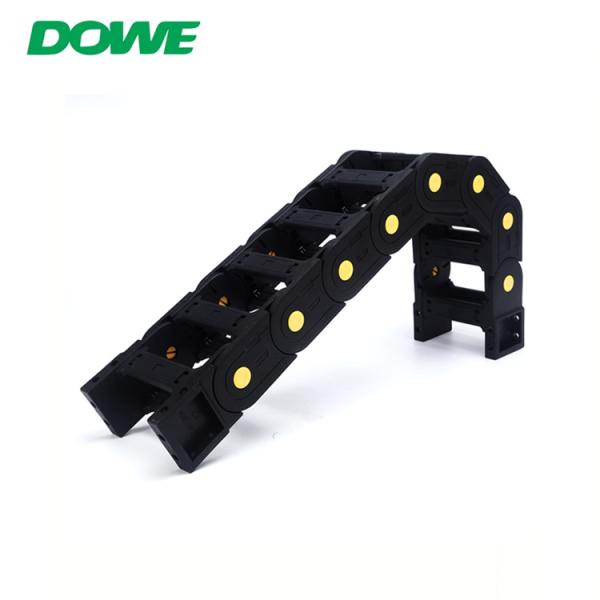

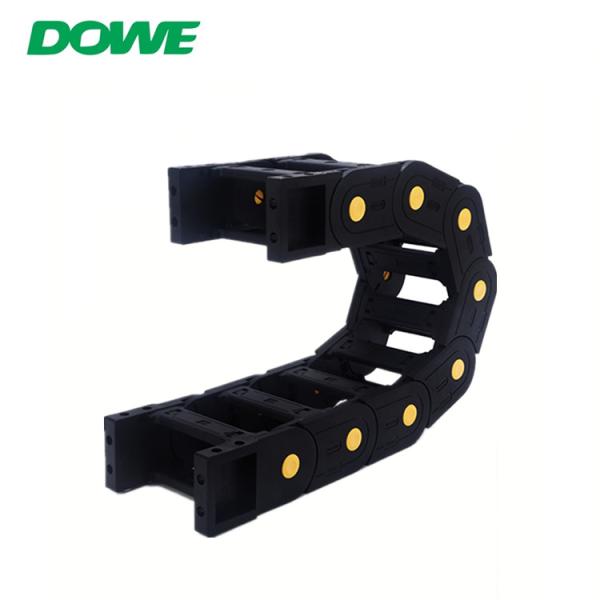

H60x250 Bridge Opening Towline Yellow Strength Machine Toole Accessiores Cable Tow Chain

Plastic cable tow chain are designed to protect and convey cables,water pipes and air hoses on machine tools,robots and materials handling equipment.Nylon bridge cable chain threading is suitable for all kinds of small machanical equipmeng use,for wire ,cable,tubing,the trachea and conduit traction and protection.It is impact resistant with high strength and light in weight.The sturdy structure makes it not liable to distort.

  • Open along inside and outside radius both available

  • Modular interior separation with strain relief

  • Easy assembly by optimized pin

  • Double stop dog for long unsupported length

  • Crossbars with high retention force

Product Description
Product Name Plastic Tow Chain
Brand DOWE
Model H60 tow chain
Material PA66
Inner Diameter 60mm*250mm
Outer Diameter 80mm*281mm
Color black
Sample sample fee refund from 1st order
Bengding Radius R125/R150/R200/R300/R400/R500
Application Machine Tool Accessories
Certification CE,SGS
Operating Temperature -40℃~125℃
Place of Origin China

H60 R125 R150 R200 R250 R300 R400 R500
Inner H*D 60*50 60*60 60*75 60*100 60*125 60*150 60*175 60*200

60*250
Outer H*D 80*81 80*91 80*106 80*131 80*156 80*181 80*206 80*231

80*281

Advantage:
1.Separate mounting bracket on both sides
2.Anti-corrosion,Rub-resistance,Gliding application
3.For high speed and high acceleration environment
