Specifications
Brand Name :
DOWE
Model Number :
H55X50
Certification :
CE,SGS
Place of Origin :
CHINA
MOQ :
1piece
Price :
USD1-99
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
1000/DAY
Delivery Time :
5-8DAYS
Packaging Details :
CARTON
Name :
tow chain
Product Name :
H55 tow chain
inner diameter :
55mm*50mm
outer diameter :
75mm*77mm
Function :
machine tool accessories
Bend radius :
R125/R150/R200/R300/R400/R500
Temperature range :
-40 ~125
Material :
PA66
Description

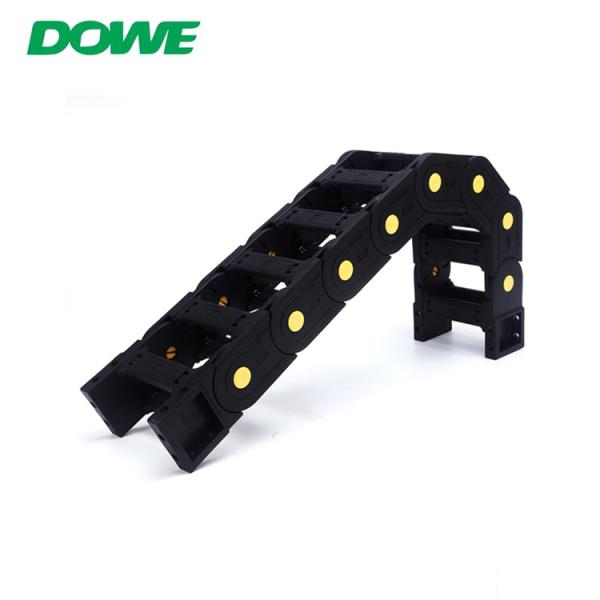

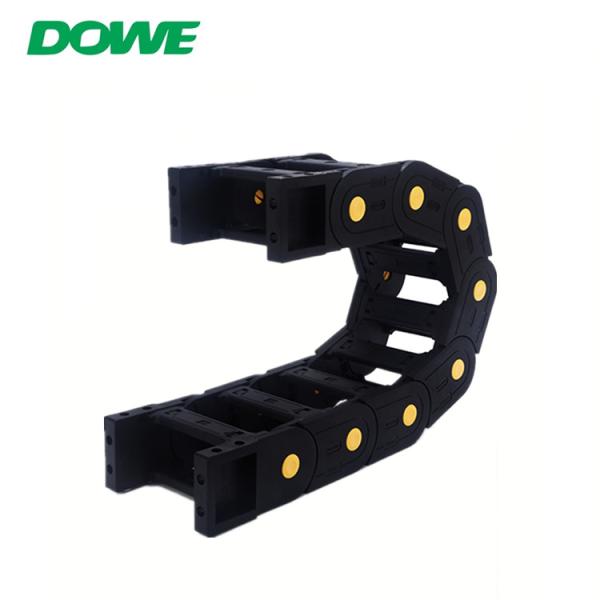

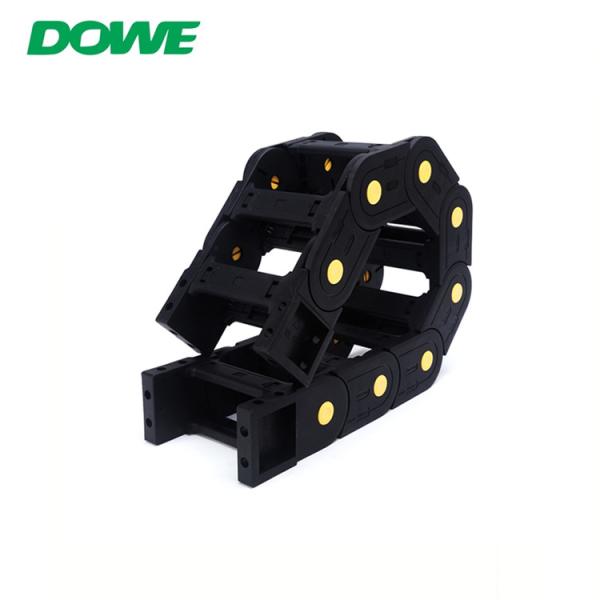

H55x50 Bridge Towline Protect Cabel CNC Machine Electric Cable Tow Drag Chain

YUEQING DUWAI plastic cable drag chains are designed to meet any requirement for dynamic protection of cables and hoses. Our chains are able to withstand the most heavy-duty applications. A non-conclusive list of possible applications for our chains includes horizontal and vertical strokes, long travel distances even beyond 400 m, applications with protective covers, rotations on diameters ranging from less than 1 m up to more than 30 m, robotics.

  • Open along inside and outside radius both available

  • Modular interior separation with strain relief

  • Easy assembly by optimized pin

  • Double stop dog for long unsupported length

  • Crossbars with high retention force

Product Description
Product Name Plastic Tow Chain
Brand DOWE
Model H55 tow chain
Material PA66
Inner Diameter 55mm*50mm
Outer Diameter 75mm*77mm
Color black
Sample sample fee refund from 1st order
Bengding Radius R125/R150/R200/R250/R300/R400/R500
Application Machine Tool Accessories
Certification CE,SGS
Operating Temperature -40℃~125℃
Place of Origin China

H55 R125 R150 R200 R250 R300 R400 R500
Inner H*D 55*50 55*60 55*75 55*100 55*125

55*150

 55*200 55*250
Outer H*D 75*77 75*87 75*102 75*127 75*152

75*177

 75*227 75*277

Advantage:
1.Separate mounting bracket on both sides
2.Anti-corrosion,Rub-resistance,Gliding application
3.For high speed and high acceleration environment
