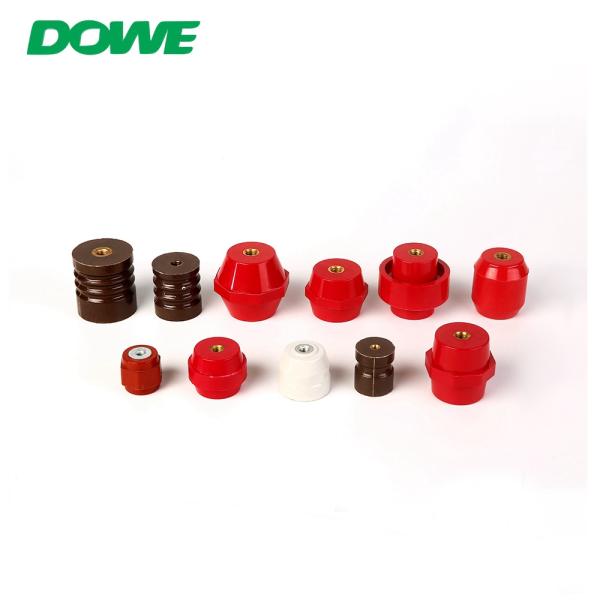

DOWE TSM Series Busbar Support Low Voltage Electrical Insulator TSM-402
DOWE TSM Series Busbar Support Low Voltage Electrical Insulator TSM-402
DOWE TSM Series Busbar Support Low Voltage Electrical Insulator TSM-402
DOWE TSM Series Busbar Support Low Voltage Electrical Insulator TSM-402
Specifications
Brand Name :
DOWE
Model Number :
TSM402
Certification :
SGS ROHS REACH CE
Place of Origin :
China
MOQ :
2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 pcs/day
Product name :
TSM Insulator
Model :
TSM402
Height :
40mm
Diameter :
30mm
Screw :
500g Freely Supplied
Material :
DMC/SMC
Insert :
brass/steel
Torque stength :
>18N/m
Customized :
OEM/
Certificate :
CE,ROHS,REACH
Description

DOWE TSM Series Busbar Support Low Voltage Electrical Insulator TSM-402

TSM busbar insulator is octagonal,made of DMC,used for low voltage application(660V-4500V),.
CE,SGS,ROHS certificate for octagonal insulator.
Material / Materiale:
-Thread Insert / Inserto Filettato :
Steel With Zn Coating Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃～140℃
Flammability / Autoestinguenza:V0
All dimensions are in mm /Tutte le quote sono in mm

Model Diameter Height Screw
TSM20 17 20 M5
TSM30 30 30 M6
TSM402 30 40 M6
TSM401 40 40 M8
TSM40 50 40 M10
TSM50 55 50 M10
TSM55 60 55 M10
TSM70 50 70 M10
