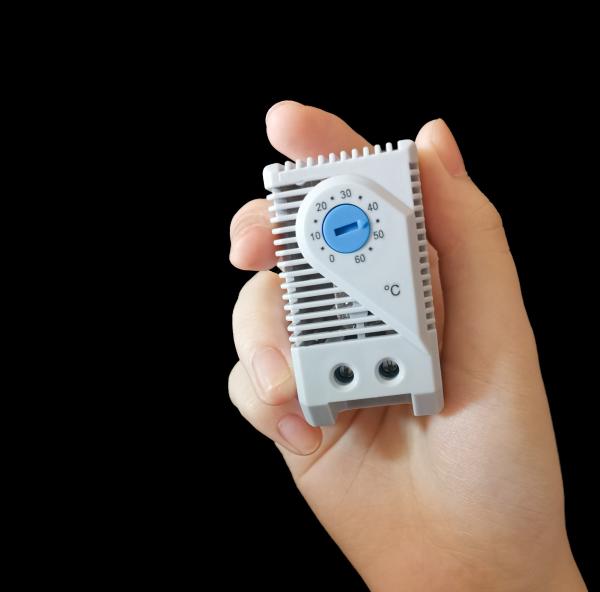

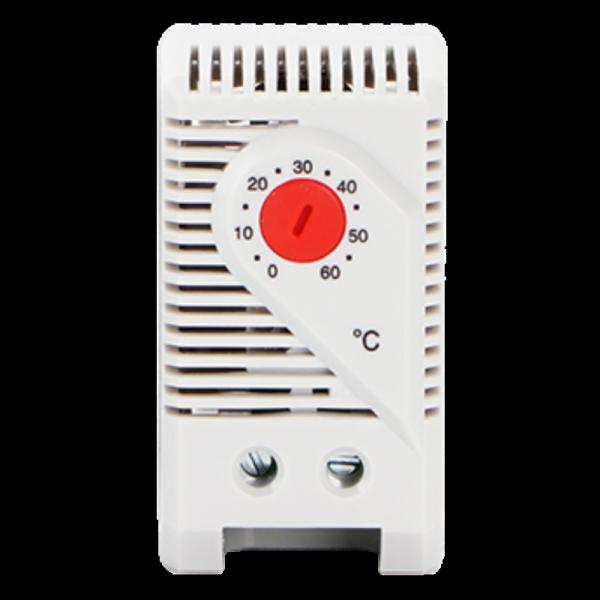

KTO 011 Thermostatic Bimetal Thermostat NC Heating NO Cooling Small Compact
KTO 011 Thermostatic Bimetal Thermostat NC Heating NO Cooling Small Compact
KTO 011 Thermostatic Bimetal Thermostat NC Heating NO Cooling Small Compact
KTO 011 Thermostatic Bimetal Thermostat NC Heating NO Cooling Small Compact
KTO 011 Thermostatic Bimetal Thermostat NC Heating NO Cooling Small Compact
KTO 011 Thermostatic Bimetal Thermostat NC Heating NO Cooling Small Compact
KTO 011 Thermostatic Bimetal Thermostat NC Heating NO Cooling Small Compact
KTO 011 Thermostatic Bimetal Thermostat NC Heating NO Cooling Small Compact
Specifications
Brand Name :
DOWE/DUWAI
Model Number :
KTO 011/KTS 011
Certification :
SGS，CE
Place of Origin :
CHINA
MOQ :
1 piece
Price :
USD0-99/pcs
Payment Terms :
T/T
Supply Ability :
1000meter/week
Packaging Details :
1pcs/box
material :
Plastic
Type :
KTO 011/KTS 011
Color :
White
Sensor elemant :
Thermostatic bimetal
Contact type :
snap-action contact
Protection type :
IP20
Max switching capacity :
AC110V-250V/DC24V-72V
Description

KTO 011 NC Heating KTS 011 NO Cooling Small Compact Thermostatic Bimetal Thermostat

KTO 011 Thermostatic Bimetal Thermostat NC Heating NO Cooling Small CompactKTO 011 Thermostatic Bimetal Thermostat NC Heating NO Cooling Small Compact

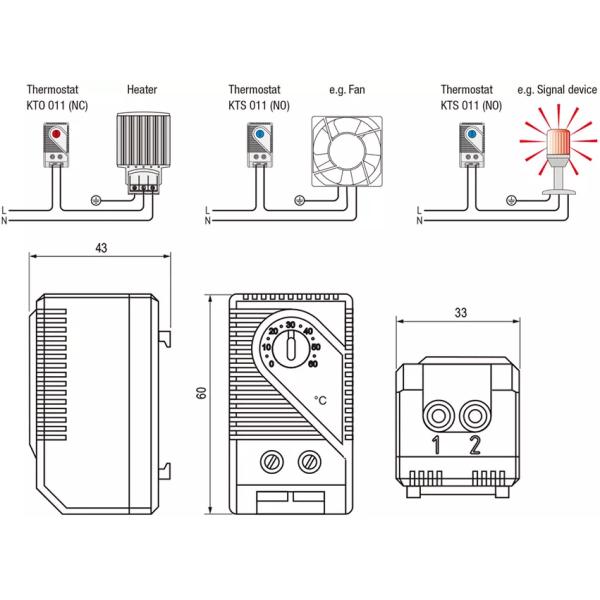

NTL 10A-F / NTL 10A-M: Thermostat (normally closed); contact breaker for regulating heaters. The contact opens when temperature is rising.

NTL 10B-F / NTL 10B-M: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devises when temperature limit has been exceeded. The contact closes when temperature is rising

KTO 011/KTS 011

Switch temperature difference

+/-5°C

Sensor element

thermostatic bimetal

Contact type

snap-action contact

Service life

>100,000 cycles

Max. switching capacity

250VAC, 10 (2) A / 120VAC, 15 (2) A

DC 30W at 24VDC to 72VDC

Max. inrush current

AC 16A for 10 sec.

Connection

2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² (AWG 14)stranded wire¹ 1.5mm² (AWG 16)

Mounting

clip for 35mm DIN rail, EN 60715

Casing

plastic according to UL94 V-0, light grey

Dimensions

60 x 33 x 43mm

Weight

approx. 40g

Fitting position

variable

Operating/Storage temperature

-45 to +80°C (-49 to +176°F)

Operating/Storage humidity

max. 90% RH (non-condensing)

Protection type

IP20

¹ When connecting with wires, wire end ferrules must be used.

Important note: The contact system of the regulator is subjected to environmental influences, thus the contact

resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.

Product tags

ksd301 bimetal thermostat

,

ksd301 series bimetal thermostat

,

ksd bimetal thermostat
