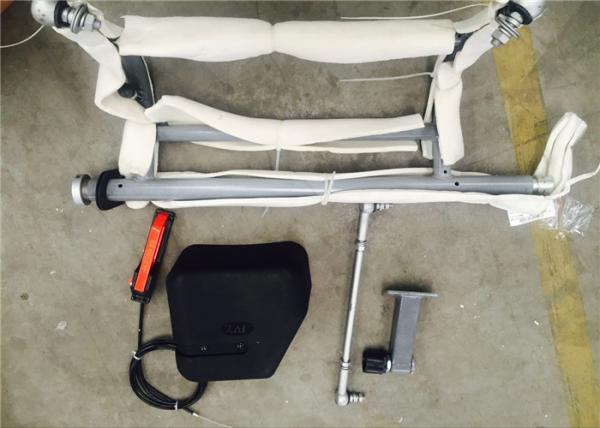

12V / 24V Outernal Rotary Automatic Bus Door Mechanism TS16949 Certificate
12V / 24V Outernal Rotary Automatic Bus Door Mechanism TS16949 Certificate
Specifications
Brand Name :
IVY
Model Number :
ER300
Certification :
TS16949
Place of Origin :
JiangSu Nanjing
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
2000 sets per month
Delivery Time :
7-10days
Packaging Details :
Export Standard Packing
Name :
12V / 24V Outernal Rotary Automatic Bus Door Mechanism TS16949 Certificate
Open Direction :
LH/RH
Customer :
Yutong, Zhongtong,BYD, Volvo
Safety Feature :
Anti-pinch
Voltage :
12V/24V
Options :
Inside and outside sealing
Description

Product Name: 12V / 24V Outernal Rotary Automatic Bus Door Mechanism TS16949 Certificate

Product Feature
Operating principle:

1) Auto operation : It uses direct current motor as power supply, controlled by power switch. The axle of motor rotates clockwise(or anticlockwise).The rotation is decelerated by a turbine-worm gear and two pairs of other gears. When there is rotary moment on the output axes of operator, the door will be opened(closed).After the door and door frame touch, screw lifting mechanism of pivoted arm will begin work, the door will be lifted, and the four locks installed on the door and door frame will be locked.

2) Emergency release: In case of emergency, put the red handle in ”manual” position, the door can be opened by hand easily.

3) Prevent from clipping: In the process of closing door, if something or somebody blocks it, the prevention from clipping will work immediately, and the door will open automatically.

Product Specification:

Specified voltage DC12V DC24V
Electric motor specified power 40W 40W
Working speed 5r/min 5r/min
Max lifting height of the door 14mm 14mm
Rotary moment More than 1000N.m More than 1000N.m
Lifting load Less than 1000N Less than 1000N
Current of working Process of revolution–3.5A Process of revolution–3A
Process of lifting–MAX 7A Process of liftin–MAX 6A
Allowed ambient temperature -40°C~+55°C
Durability of mechanism 500000
Durability of electric 500000
