NR350 Double Rotary Pneumatic Bus Door , Lift And Lock Swing Door Mechanism
NR350 Double Rotary Pneumatic Bus Door , Lift And Lock Swing Door Mechanism
Specifications
Brand Name :
IVY
Model Number :
NR350
Certification :
TS16949
Place of Origin :
Jiangsu Nanjing
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 sets per Month
Delivery Time :
7-10days
Packaging Details :
Boxes in Wooden Cases
Name :
NR350 Double Rotary Pneumatic bus door System With lift & Lock Function
Dimension :
Customized
Safety Fucntion :
Antipinch function
Used For :
airport bus
Material :
Aluminum
Options :
double rotary and single rotary
Description

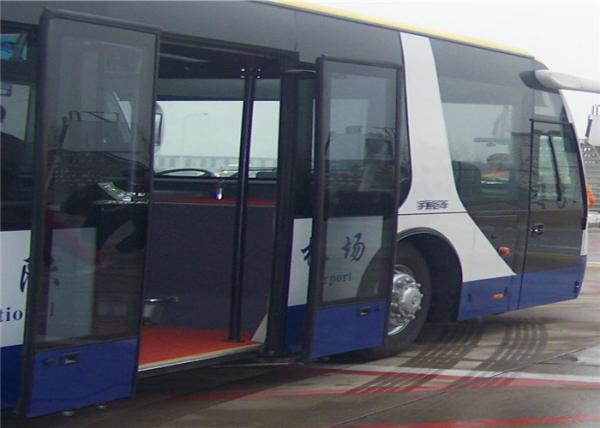

Product Name : Top mounted Outswing Pneumatic bus door system for airport shuttle bus

1. Introduction:

Ivy Machinery offers Double Rotary Door System for the airport bus. Instead of using traditional overhead baseplate operator plus additional pneumatic cylinder locking, Ivy adds the lifting mechanism into the baseplate operator to lock the door panel. By doing that, Ivy’s double rotary door system is safer and easier for the maintenance and installations.

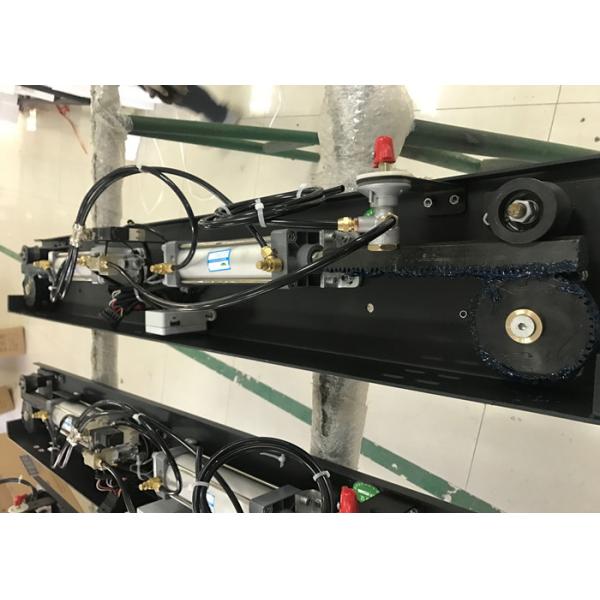

System Component: Base-plate assembly, Shaft assembly and Door panel assembly.

2. Operating principle:

1) Auto operation: Automatic operate

2) Emergency release: In case of emergency, rotate the emergency valve 90 degree to release the air pressure. Manually push the door panel front edge to open the open.

3) Sensitive edge: In case the passenger or other items are clamped during the vehicle door closing, the sensitive edge of door panel will be actuated to reverse the motion to open the door.

3. Main Parameter:

Operation Temperature: -40°C – 80°C
Operation air pressure

0.4Mpa~0.8Mpa
Operation Voltage: DC12V or DC24V
Door closing or opening time: 3-5 seconds
Life Cycle: 1,000,000
Style: Single or Double Slide Glide

4. Packing and Shipping

Packing with boxes then into wooden cases or steel cages

NR350 Double Rotary Pneumatic Bus Door , Lift And Lock Swing Door Mechanism

5. Our Service :

1. We can make design according to customer's vehicle free of charge
2. Sample order acceptable
3. We will reply you for your inquiry in 8 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
