Air Cylinder With Lift Lock Function Pneumatic Door Actuator For Luxury Coach
Air Cylinder With Lift Lock Function Pneumatic Door Actuator For Luxury Coach
Specifications
Brand Name :
IVY
Model Number :
NR300
Certification :
TS16949
Place of Origin :
Jiangsu Nanjing
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3000 set per month
Delivery Time :
7-10days
Packaging Details :
Export standard packing
Open direction :
Right and left open
Safety Feature :
Anti-pinch
Life Cycle :
500,000times
Warranty :
2 years
Name :
Air Cylinder With Lift Lock Function Pneumatic Door Actuator For Luxury Coach
Advantage :
LLift Lock
Description

Product Name : Air Cylinder With Lift Lock Function Pneumatic Door Actuator For Luxury Coach

Product Description

Introduction:

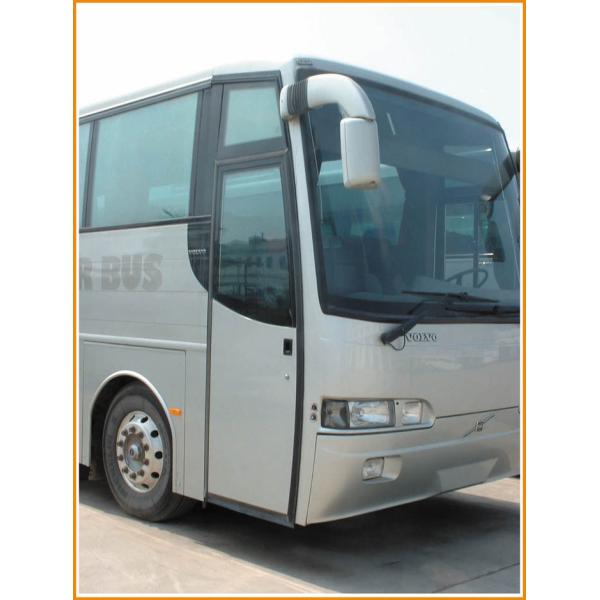

Application: tour bus and intercity bus.

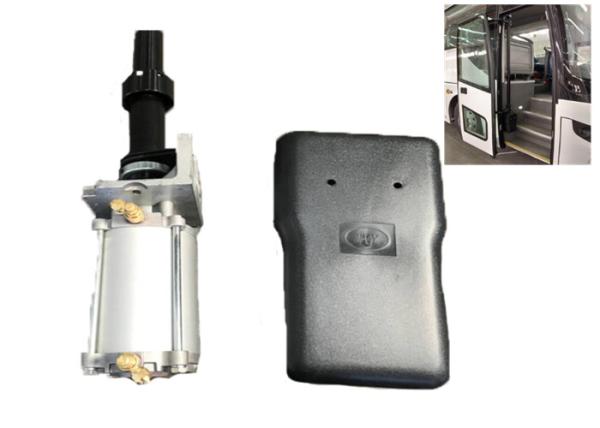

System Component: Rotary actuator

1) The actuator provides rotary motion and “Lift-to-latch” feature.

A double acting cylinder drives a splined shaft through a helical ball cage to provide rotary motion. When the door reaches the closed position, the actuator lifts the door shaft and door panel approximately 10mm,enabling latches on the door panel to engage mating wedges on the door jambs.The door panel is held closed as long as air pressure is applied the actuator.

Main Parameter:

Maximum torque in locked position (@90 psi) 122 ft-lbs
Recommended door shaft rotation 90 degree
Operating temperature -30°C to 80°C
Envelope size 5.51”w x 12.50”d x 4.53”h
Operating pressure 90-125 psi
Minimum Life cycle 500,000
Locking mechanism Local wedge lock
Door closing time 3-5 seconds
Door opening time 3-5 seconds

Operating principle:

1) Auto operation

2) Emergency release

3) Sensitive edge

Our Service :

  • Sample order acceptable
  • Response in 8 hours.
  • Design free of Charge
  • Focus on aftersales service

Air Cylinder With Lift Lock Function Pneumatic Door Actuator For Luxury Coach
