Description

Product Description:

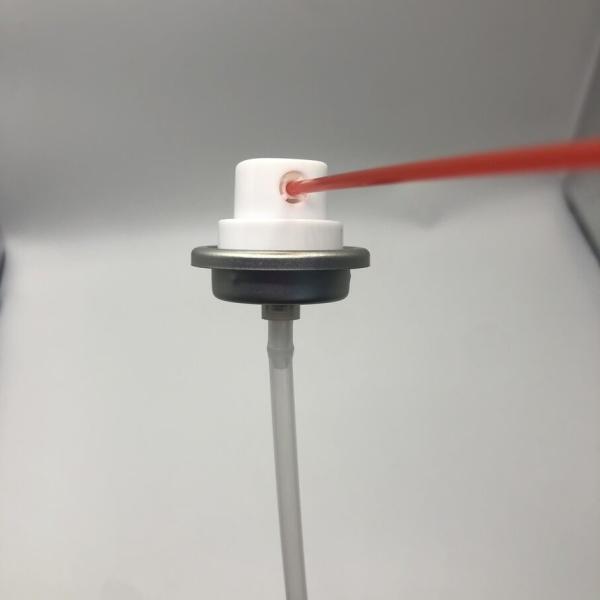

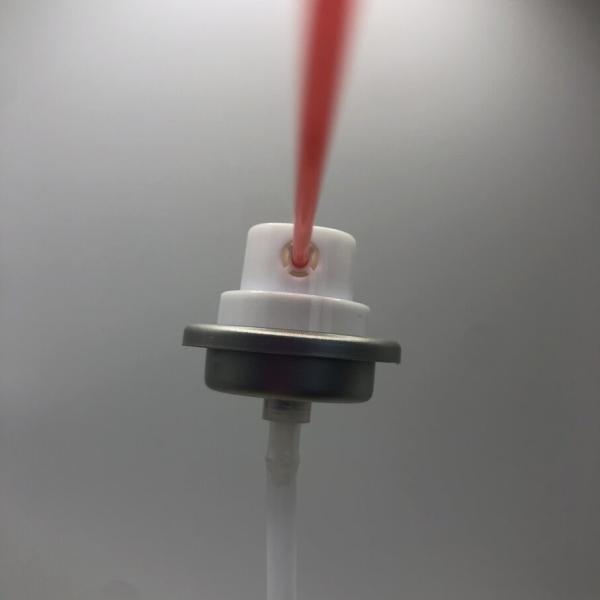

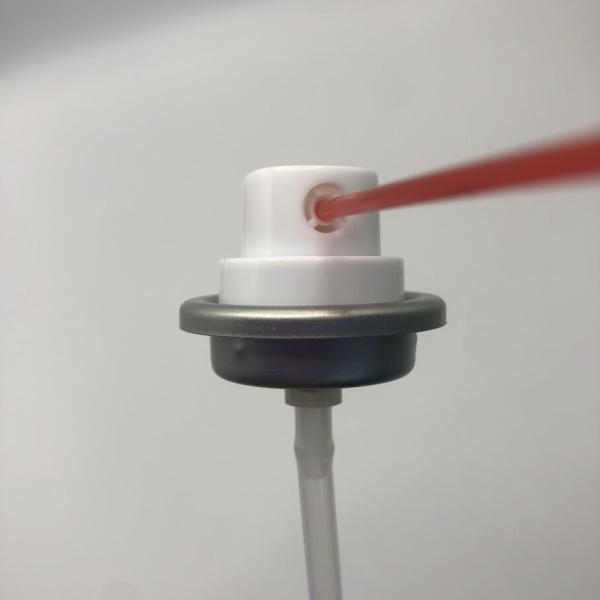

The Premium MDF Kit Activator Valve is a high-quality solution designed to deliver superior performance and durability in butane gas lighter refilling applications. Crafted with precision and attention to detail, this valve ensures optimal functionality and reliability. The mounting cup is constructed from sturdy plain tinplate with down dimples, providing stability and secure attachment. The outer gasket, made of high-grade Buna material, offers exceptional sealing capabilities, preventing any gas leakage. The inner gasket incorporates Neoprene (N-205), known for its excellent durability and resistance to wear and tear. The stem features a double orifice design with two orange-colored openings, each measuring ф0.020" (ф0.51mm), facilitating precise and controlled gas flow. With a stainless steel spring, the valve maintains consistent compression and resilience for long-lasting performance. The housing is equipped with a tail orifice of ф0.080" (¢2.00mm) for smooth and efficient gas release. The Premium MDF Kit Activator Valve also includes a standard natural-colored dip tube, providing a comprehensive solution for your butane gas lighter refilling needs.

Bullet points:

  • Premium MDF Kit Activator Valve for superior performance in butane gas lighter refilling
  • Sturdy plain tinplate mounting cup with down dimples for stability and secure attachment
  • High-grade Buna outer gasket for exceptional sealing capabilities
  • Neoprene (N-205) inner gasket for excellent durability and resistance to wear and tear
  • Double orifice stem with two orange-colored ф0.020" (ф0.51mm) openings for precise and controlled gas flow
  • Stainless steel spring for consistent compression and resilience
  • Housing with a tail orifice of ф0.080" (¢2.00mm) for efficient gas release
  • Includes a standard natural-colored dip tube

Technical Parameters:

Component Part Description
Mounting cup Both sides with clear lacquered tinplate ,with down dimples
Outer gasket To this
Inner gasket Butyl
Stem single orifice 1*0.51mm natural
Spring Stainless steel
Housing tail orifice Dia 2*0.33mm orange
Dip tube standard natural color

Specific application scenario:

Ideal for professionals and enthusiasts seeking a premium and high-quality activator valve for butane gas lighter refills, ensuring superior performance, durability, and longevity.

Premium MDF Kit Activator Valve High Quality Solution for Butane Gas Lighter RefillsPremium MDF Kit Activator Valve High Quality Solution for Butane Gas Lighter Refills

FAQ:

Q: Can the Premium MDF Kit Activator Valve be used for refilling cigar lighters?
A: Yes, the Premium MDF Kit Activator Valve can be used for refilling cigar lighters. It is designed to be compatible with various types of butane gas lighters, including cigar lighters. However, it's always recommended to check the compatibility of the valve with your specific lighter model by referring to the manufacturer's guidelines or specifications.

Q: Is the Premium MDF Kit Activator Valve resistant to high altitudes or extreme temperatures?
A: The Premium MDF Kit Activator Valve is primarily designed for optimal performance under standard conditions. While it is constructed with high-quality materials, its resistance to high altitudes or extreme temperatures may vary. It's advisable to consult the manufacturer or product specifications for any specific temperature or altitude limitations associated with the valve.

Q: Can the Premium MDF Kit Activator Valve be disassembled for cleaning and maintenance?
A: The Premium MDF Kit Activator Valve may or may not be designed for disassembly, depending on the specific model. It's recommended to refer to the manufacturer's instructions or guidelines for information on disassembling, cleaning, and maintaining the valve. Proper cleaning and maintenance can help ensure its long-term performance and reliability.

Q: Is the Premium MDF Kit Activator Valve compatible with all brands of butane gas refills?
A: The compatibility of the Premium MDF Kit Activator Valve with different brands of butane gas refills may vary. It's advisable to check the specifications and guidelines provided by both the valve manufacturer and the butane gas refill manufacturer. Ensuring compatibility between the valve and the refill brand is crucial for safe and efficient refilling.

Q: Does the Premium MDF Kit Activator Valve come with any additional accessories?
A: The Premium MDF Kit Activator Valve typically includes a standard natural-colored dip tube as part of the package. However, additional accessories may vary depending on the manufacturer or seller. It's recommended to check the product listing or contact the seller for information about any additional accessories included with the valve.
