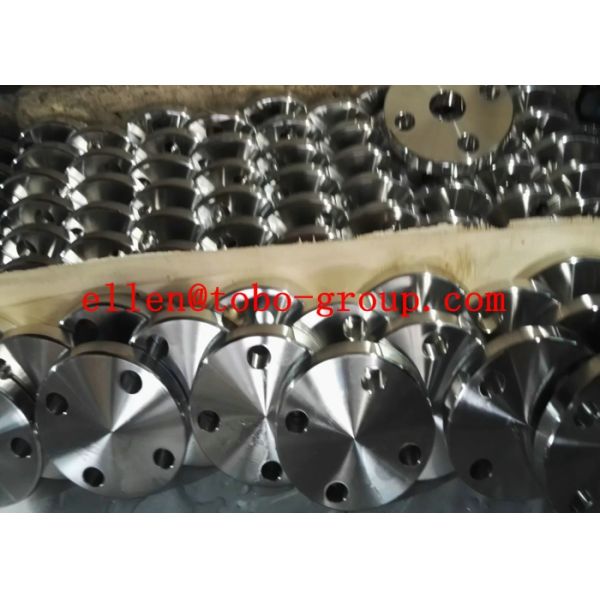

Discs Parts Forged Steel Flanges ASTM A182 F51 Alloy Steel Pipe Flange
Discs Parts Forged Steel Flanges ASTM A182 F51 Alloy Steel Pipe Flange
Discs Parts Forged Steel Flanges ASTM A182 F51 Alloy Steel Pipe Flange
Discs Parts Forged Steel Flanges ASTM A182 F51 Alloy Steel Pipe Flange
Discs Parts Forged Steel Flanges ASTM A182 F51 Alloy Steel Pipe Flange
Discs Parts Forged Steel Flanges ASTM A182 F51 Alloy Steel Pipe Flange
Discs Parts Forged Steel Flanges ASTM A182 F51 Alloy Steel Pipe Flange
Discs Parts Forged Steel Flanges ASTM A182 F51 Alloy Steel Pipe Flange
Discs Parts Forged Steel Flanges ASTM A182 F51 Alloy Steel Pipe Flange
Discs Parts Forged Steel Flanges ASTM A182 F51 Alloy Steel Pipe Flange
Specifications
Brand Name :
TOBO
Model Number :
ASTM A182 F51
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China, India, USA, Korea, UE
MOQ :
100KGS
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1500 tons per month
Delivery Time :
15days->
Packaging Details :
in plastic bags then in bundles
Standard :
ASTM A182 F51
color :
White, silver
Outside Diameter :
DN15-DN1000
type :
WELDING NECK FLANGE
Description

ASTM A182 F51 Duplex2205 S31803 forgings rings discs parts Rolled Alloy-Steel Pipe Flanges

Material:

ASTM A182 F51 Duplex2205 S31803

 Technics: Pressing Type:

Flanges
Place of Origin: China (Mainland) Model Number: n/a Brand Name: TOBO
Connection: Welding Shape: Other Head Code: Round
SHAPE:: Long Pattern&Short Pattern


Standards: ANSI, BS, DIN, JIS and MSS etc.
Materials: Carbon steel, Stainless steel and Alloy steel etc.
Size: 1/2" ~ 64"(DN15 mm ~ 1600 mm)

Type: Slip-On, Welding Neck, Blind, Socket Welding, Threaded, Lap Joint and Plate etc.

Pressure Ratings: Class 150, 300, 600, 900, 1500 and 2500
Pressure Ratings: PN 6, PN 10, PN16, PN25, PN40 and PN64
Pressure Ratings: JIS 5K, 10K, 16K and 20K

ASTM A182
/ASME SA182		 Standard Specification for Forged or Rolled Alloy-Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature Service
Low alloy Steels F1 F2 F5, F5a F5 F91
F92 F911 F11, 1,2,3 F12, 1,2 F36
F21, F3V, F3VCb F22, 1/3/V F23 F24 FR
F122 F10 F9
Martensitic and Ferritic Stainless steel F6a F6b F6NM F XM-27Cb F429
F430
Austenitic Stainless steel F304 F304H F304L F304N F304LN
F309H F310 F310H F310MoLN F316
F316H F316L F316N F316LN F316Ti
F317 S31727 S32503 F321 F321H
F347 F347H F347LN F348 F348H
FXM-11 FXM-19 F20 F44 F45
F46 F47 F48 F49 F56
F58 F62 F63 F64 F904L
Ferritic-Austenitic Stainless steel F 50 F 51 F 52 F 53 F 54
F 55 F 56 F 57 F 58 F 59
F60 F61 F65 F65 F67
Product Form
Flanges(ASME B16.47,B16.48,B16.5,MSS SP44,BS10,BS3293,BS4504,ISO7005-1) WN(welding-neck);SO(slip-on);PL(Plate);BL(Blind);Th(Threaded);SW(scket-welding);LF/SE(lapped flange/stub end);LWN(long welding neck);Orifice flange;Reducing flange;
API flange;Integral/Compact flange;
Spectacle blind,Lind spade and spacer,Paddle
blind,Paddle spacer;Orifice plate;Pipe plate,Bleed ring,Overlap Flange.
ASME B16.11 Forged threaded fittings:90-deg elbow,45-deg elbow,tee,cross,coupling,half-coupling,cap,square head plug,hex head plug,round head plug,hex head bushing,
flush bushing,street elbows
ASME B16.11 Fogred socket weld fittings:90-deg elbow,45-deg elbow,tee,cross,coupling,half-coupling,cap
MSS SP83 Steel Pipe Unions(socket welding and threaded end)
MSS SP95 swage nipples,bull plug(ends may be threaded,beveled,plain)
MSS SP79 socket welding reducer inserts
MSS SP97 weldolets,threadolets,sockolets,flangolets,elbolet,sweepolets,saddle,nipolets,brazolets,latrolets,insertolets
Forgings Forgings,Rings,Discs,Disks,Tubesheets,Shaft,Sleeves,Bars,Valves,etc.

Discs Parts Forged Steel Flanges ASTM A182 F51 Alloy Steel Pipe Flange

Discs Parts Forged Steel Flanges ASTM A182 F51 Alloy Steel Pipe FlangeDiscs Parts Forged Steel Flanges ASTM A182 F51 Alloy Steel Pipe Flange
