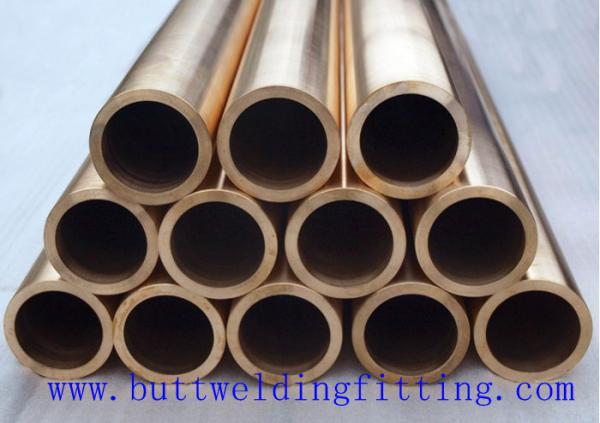

Air Conditioning Copper Nickel Tube Seamless Or Welded Type Size 1-96 Inch
Air Conditioning Copper Nickel Tube Seamless Or Welded Type Size 1-96 Inch
Air Conditioning Copper Nickel Tube Seamless Or Welded Type Size 1-96 Inch
Air Conditioning Copper Nickel Tube Seamless Or Welded Type Size 1-96 Inch
Air Conditioning Copper Nickel Tube Seamless Or Welded Type Size 1-96 Inch
Air Conditioning Copper Nickel Tube Seamless Or Welded Type Size 1-96 Inch
Air Conditioning Copper Nickel Tube Seamless Or Welded Type Size 1-96 Inch
Air Conditioning Copper Nickel Tube Seamless Or Welded Type Size 1-96 Inch
Specifications
Brand Name :
TOBO/TPCO/TISCO/VALIN/METAL
Model Number :
C70600(90:10), C71500 (70:30), C71640
Certification :
ISO/PED/TUV/SGS/LR/BV
Place of Origin :
China/Japan/Germany
MOQ :
500KG
Price :
USD Depending on quantity
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500Tons per month
Delivery Time :
10-100 days depending on quantity
Packaging Details :
PLY-WOODEN CASE OR PALLET
Size :
1-96inch
DN :
15-2400
Material :
Copper Nickel Elbolet: C70600(90:10), C71500 (70:30), C71640
Type :
Seamless or weld
Standard :
DIN,EN,ASTM,BS,JIS,GB,etc.
Description

Copper Nickel Tube Air conditioning nickel price copper pipe/copper tube size 1-96inch

1) Grade : C71500 C70600
2) Diameter :10mm-55mm
3) Wall thickness : 0.5mm-3mm
4) Length : 1000mm-8000mm
5)Temper: soft ,Hard

Nickel -Copper Tube :

We produce the tubes at different diameters, wall thicknesses and lengths according to your specific requirements.

Specification of Nickel-Copper Tube:
1) Grade:C71500 C70600
2) Diameter: 10mm-55mm
3) Wall thickness: 0.5mm-3mm
4) Length: 1000mm-8000mm
5) Temper:Soft, Half Hard ,Hard

More detailed imformation as the following table:

Grade Temper Section Size (mm) Length
Outer Diameter Wall Thickness

CuNi30Mn1Fe

(C71500)

 Soft Φ12 ~ 55 0.75-3.0 1000 ~ 8000
Half Hard Φ10 ~ 50 0.75-3.0 1000 ~ 8000
Hard Φ10 ~ 50 0.75-3.0 1000 ~ 8000

CuNi10Fe1Mn

( C70600 )

 Soft Φ12 ~ 55 0.5-3.0 1000 ~ 8000
Half Hard Φ10 ~ 50 0.75-3.0 1000 ~ 8000
Hard Φ10 ~ 50 0.75-3.0 1000 ~ 8000

1.1.1 Specifications

1) Superior quality copper nickel pipes
2) Offer a wide range of copper Tubes,pipes
4) Grade:C70600 (90/10) & C71500 (70/30)

Copper Nickle:-

90/10 Copper Nickel

We are reckoned amongst the trusted manufacturers and exporters of a wide range of 90/10 Copper Nickel Tubes. Known for their flexibility, high corrosion resistance, superior tensile strength, trouble free installation and maintenance, these are in demand in different industries. To ensure complete client satisfaction, the entire array of 90/10 Copper Nickel Tubes is examined thoroughly on standard quality parameters before final delivery.
Send Enquiry

70/30 Copper Nickel

Backed by latest technologies and dexterous workforce, we are able to manufacture, supply and export an impeccable gamut of 70/30 Copper Nickel Tubes. These are machined in line with the set industry standards using qualitative raw materials that are sourced from authentic vendors of the domain. Our 70/30 Copper Nickel Tubes are sturdy in construction, dimensionally accurate, corrosion resistant, easy to install and maintenance free. Available in different standard specifications, the tubes can also be customized as per the clients' specifications at nominal prices.
Send Enquiry

Technical Specifications

BS 2871 PART III/72 CN 102 & 07 EQUIVALENT SPEC. ASTMB C70600 & 71500

Chemical Requirements C70600 C71500
Copper Remainder Remainder
Iron 1.0 to 2.0% 0.4 to 1.0%
Nickel 10 to 11% 30 to 32%
Manganese 0.5 to 1.0% 0.5 to 1.5%
Total Imp. 0.30% max. 0.30% max.
Physical Properties
Condition T.S. Kg/mm2 EL% Min T.S. Kg/mm2 EL% Min
Annealed (O) 35 35% 37.5-46 30%
As manufactured (M) 44 min - 51 min -
Further Tests:-
  • Drift Test
  • Hydraulic Test
  • Microstructure
  • Eddy Current Optional
Uses Gr I : Excellent corrosion resistant to turbulently used in condensers for coastal power plants, petroleum refineries and chemical plants. Gr II : High impingement corrosion resistant to brackish sea water at velocities upto 3 to 4 m/sec used in desalination plants and other sea water condenser application

Apart from the ones listed above, we also manufacture the following products.
ALLOYS
PRODUCTS
Copper viz. DHP & ETP.
Billets/Ingots, Mother Shells, Tubes/Pipes, Hollow/Solid Rods, Sections, Profiles etc.
All kind of Brasses viz. Free Cutting Brass, Forging Brass, Naval brass, Yellow brass, Red brass etc.
Billets/Ingots, Mother Shells, Tubes/Pipes, Hollow/Solid Rods, Sections, Profiles etc.
Bronze viz. Commercial Bronze, Leaded Commercial Bronze, Architectural Bronze, Aluminum Bronze, Phosphorus Bronze, Gun Metal etc.
Billets/Ingots, Hollow/Solid Rods, Sections, Profiles etc.
