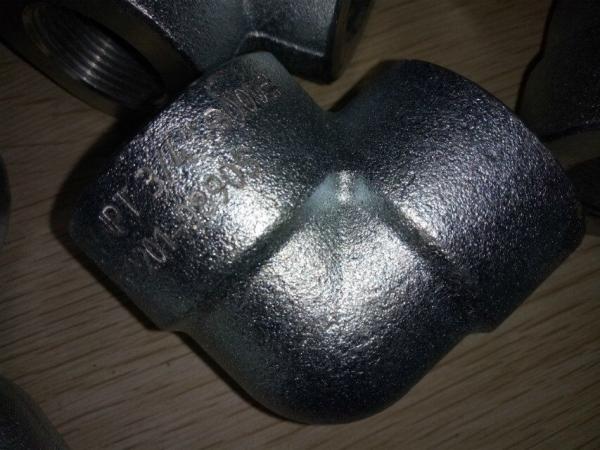

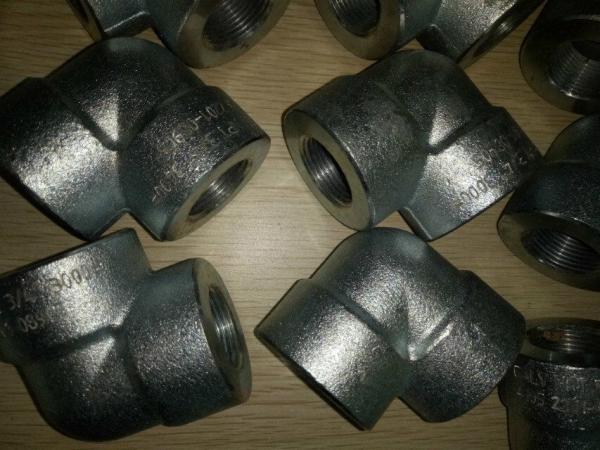

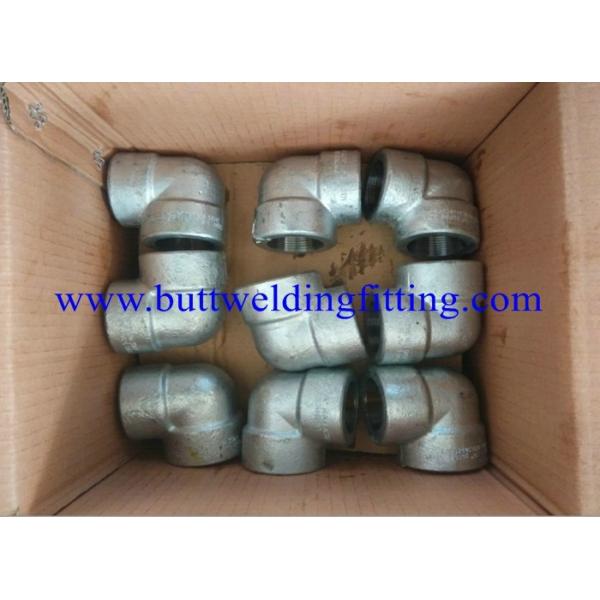

ASTM A105 Galvanized 90 degree Forged Pipe Fittings 3/4 Inch Elbow
ASTM A105 Galvanized 90 degree Forged Pipe Fittings 3/4 Inch Elbow
ASTM A105 Galvanized 90 degree Forged Pipe Fittings 3/4 Inch Elbow
ASTM A105 Galvanized 90 degree Forged Pipe Fittings 3/4 Inch Elbow
ASTM A105 Galvanized 90 degree Forged Pipe Fittings 3/4 Inch Elbow
ASTM A105 Galvanized 90 degree Forged Pipe Fittings 3/4 Inch Elbow
ASTM A105 Galvanized 90 degree Forged Pipe Fittings 3/4 Inch Elbow
ASTM A105 Galvanized 90 degree Forged Pipe Fittings 3/4 Inch Elbow
ASTM A105 Galvanized 90 degree Forged Pipe Fittings 3/4 Inch Elbow
ASTM A105 Galvanized 90 degree Forged Pipe Fittings 3/4 Inch Elbow
Specifications
Brand Name :
TOBO
Model Number :
ASTM A105
Certification :
ISO-9001:2000, API,CCS
Place of Origin :
CHINA
MOQ :
3PCS
Price :
USD0.1-30 PER PC
Payment Terms :
T/T
Supply Ability :
10000000 PCS PER MONTH
Packaging Details :
PLY-WOODEN CASE
NAME :
ASTM A105 Galvanized 90 degree elbow
Connection :
Forged
Standard :
ASME , ANSI , JIS , DIN
Application :
Petroleum, chemical, machinery, electric power, shipbuilding, Papermaking, construction etc
Technics :
forged
Head Code :
Round
Shape :
Equal
Color :
silver
OEM :
Accepted
Description

Forged Steel Pipe Fittings ASTM A105 Galvanized 90 degree 3/4 Inch Elbow

Quick Details

Material:
Carbon Steel
 Technics:
Forged
 Type:
Forged Elbow
Place of Origin:
Hebei, China (Mainland)
 Model Number:
forged ASTM A105pipe fitting
 Brand Name:
TOBO
Connection:
Welding
 Shape:
Equal
 Head Code:
round
color:
silver
 material:
Stainless steel
 type:
elbow
size:
3/4 Inch
 category:
pipe fitting
 qualification:
ISO , API , CE
standard:
ASME , ANSI , JIS , DIN

Packaging & Delivery

Packaging Details: wooden cases or as requested
Delivery Detail: 7-10 days

Specifications

Forged Steel Pipe Fittings ASTM A105 Galvanized 90 degree 3/4 Inch Elbow
connection type: threaded
color: silver
size: 1/8"-4"-30"

Forged Steel Pipe Fittings ASTM A105 Galvanized 90 degree 3/4 Inch Elbow


Socket Weld Forged Pipe Fittings, Threaded Forged Steel Pipe Fittings

TYPE

A:ELBOW,TEE,COUPLING,HALCOUPLING,CAP,PLUG,BUSHING,UNION,

OUTLET,SWAGE NIPPLE,BULL PLUG,REDUCER INSERT AND HEX

NIPPLE,STREET ELBOWS,BOSS...ETC.
B:SOCKET-WELD,THREADED(NPT or PT TYPE),BUTT-WELDING,
SIZE NPS 1/8"-4"; DN6-100
RATING PRESSURE:THREADED END -2000/3000/6000LBS.
SOCKET-WELD END -3000/6000/9000/LBS.
BUTT WELD END -SCH40/SCH80/SCH160/XXS.

SPECIFICATIONS

STANDARD

A.DIM.SPEC.:ASME B16.11-2009(REVISION OF ASME B16.11-2005);

MSS SP- 79,83,95,97and BS3799.

B.ASTM A105,A350 LF2,A106,A312,A234,A403,ASTM A182(F304,

F304L,F316,F316L,F304H,F316H,F317L,F321,F11,F22,91).
C.SIZE of RAW MATERIAL:DIA.19-85MM ROUND BAR.
MARKING A.CARBON and ALLOY STEEL:MARKED BY STAMPING.

B.STAINLESS STEEL:MARKED BY ELECTRO-ETCHED,JET PRINTED or

STAMPING.
C.3/8"UNDER:BRAND ONLY.

D.1/2"to 4":MARKED WITH BRAND,MATERIAL,HEAD CODE,

B16(FOR ASME B16.11PRODUCT),RATING AND SIZE.
E:AS THE REQUIREMENT of CUSTOMER.
PACING IN WOODEN CASES or PALLETS,or AS PER CLIENTS’ REQUIREMENTS.
APPLICATION

PETROLEUM,CHEMICAL,MACHINERY,ELECTRIC POWER,SHIPBULING,

CONSTRUCTION,ECT.
Special design available as the requirement of customer

ASTM A105 Galvanized 90 degree Forged Pipe Fittings 3/4 Inch Elbow

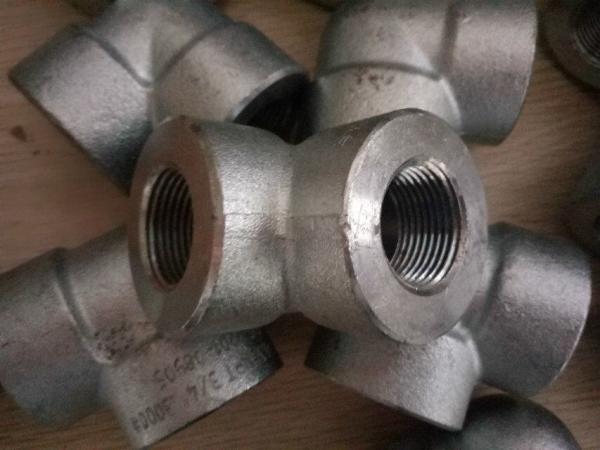

1. Forged Fittings Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet,
Sage nipple, bull plug, reducer insert, pipe nipple etc.


2. Connection: Socket Welded, Threaded

3. Size Range: 1/8" - 4"(6mm - 100mm)


4. Pressure Rating:
Threaded Forged Pipe Fittings: 2000LBS, 3000LBS, 6000LBS
Socket welding Wog 3000, 6000, 9000 LBS

5. Specifications:
1) Standard: ASME B 16.11, MSS-SP-79 83 9597
2) Material: ASTM A105, ASTM A182(F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91).
3) Size of raw material: Dia. 19-85mm round bar.

6. Technology: Forged

7. Packing: Wooden cases or wooden pallet or as per customers requirement

8. Delivery Time: 15 days after order conformed

9. Payment: By T/T

10. Applications range: Petroleum, chemical, machinery, electric power, shipbuilding,
Papermaking, construction etc

ASTM A182 F316H forged steel sockolet pipe fitting
