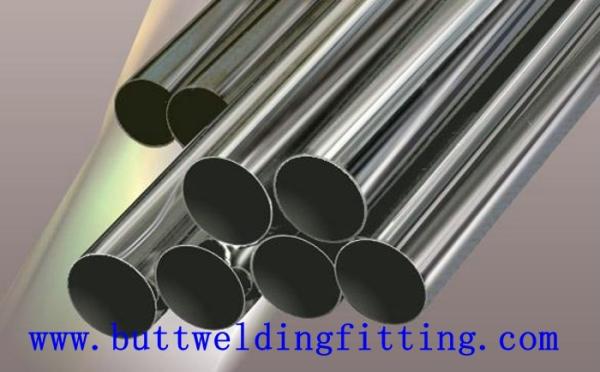

1 - 48 inch Stainless Steel Seamless Tubing 2205 Duplex ASTM A789 ASTM A790
1 - 48 inch Stainless Steel Seamless Tubing 2205 Duplex ASTM A789 ASTM A790
1 - 48 inch Stainless Steel Seamless Tubing 2205 Duplex ASTM A789 ASTM A790
1 - 48 inch Stainless Steel Seamless Tubing 2205 Duplex ASTM A789 ASTM A790
1 - 48 inch Stainless Steel Seamless Tubing 2205 Duplex ASTM A789 ASTM A790
1 - 48 inch Stainless Steel Seamless Tubing 2205 Duplex ASTM A789 ASTM A790
1 - 48 inch Stainless Steel Seamless Tubing 2205 Duplex ASTM A789 ASTM A790
1 - 48 inch Stainless Steel Seamless Tubing 2205 Duplex ASTM A789 ASTM A790
Specifications
Brand Name :
TOBO
Model Number :
Seamless
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
500KG
Price :
USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 tons per month
Delivery Time :
10-45work days
Packaging Details :
Wooden case
Size :
1-48inch
Material :
2205 Duplex steel
OD :
1-600
Thickness :
Sch5-Sch160，XS,XXS
Standard :
ASME B16.9
DN :
15-1200
Description

Stainless Steel Seamless Pipe and Tube 2205 Duplex ASTM A789 ASTM A790 Size 1-48inch

Specifications

OD: 1-600mm Thickness: 0.1-100mm
Size: 1/8-72” Standard: ANIS B36.10~B36.19
DN: 6-1800 Material: Stainless Steel
Duplex Stainless Steel Pipe ASTM A790/790M S31803, UNS S32750
Standards: ASTM/ASME A789/SA789, A790/SA790,A450,A530
Duplex Stainless Steel Pipe Application:
Chemical processing, Transport and Storage.
Oil and gas exploration and offshore rigs.
Oil and gas refining.
Marine environments.
Pollution control equipment.
Pulp and paper manufacturing
Chemical process Plant

Standards: ASTM/ASME A789/SA789, A790/SA790,A450,A530

Material: UNS S31803(Cr22Ni5Mo3/1.4462)/2205,UNS S32750(1.4410),UNS S31500(Cr18NiMo3Si2),

UNS32760(1.4501)

Chemical Composition

Grade

C

max

Si

max

Mn

max

P

max

S

max

 Cr Ni Mo N
UNS S32750 0.030 0.8 1.2 0.030 0.015 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32
UNS S31803 0.030 1.0 2.0 0.020 0.020 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.20
UNS S31500 0.030 1.0 1.2-2.0 0.030 0.030 18.0-19.0 4.5-5.5 2.5-3.5 0.05-0.10

Physical Properties

Grade Y.S.MPa min T.S.Mpa min Elongation % Hardness HRC
UNS S32750 550 800 15 20
UNS S31803 450 620 25 20
UNS S31500 440 630 30 20

Duplex Stainless Steel Pipe Application:

Chemical processing, Transport and Storage.

Oil and gas exploration and offshore rigs.

Oil and gas refining.

Marine environments.

Pollution control equipment.

Pulp and paper manufacturing

Chemical process Plant

Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing

1 - 48 inch Stainless Steel Seamless Tubing 2205 Duplex ASTM A789 ASTM A790
