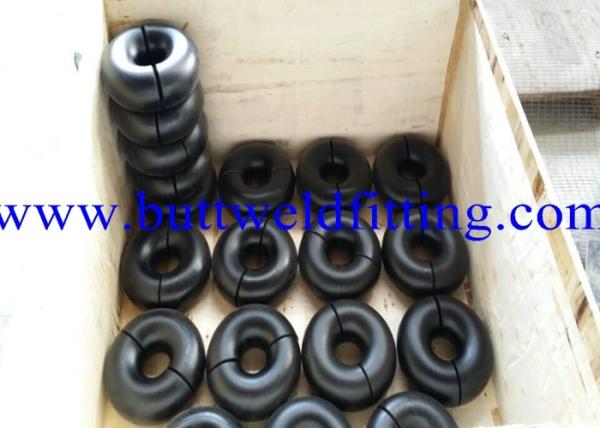

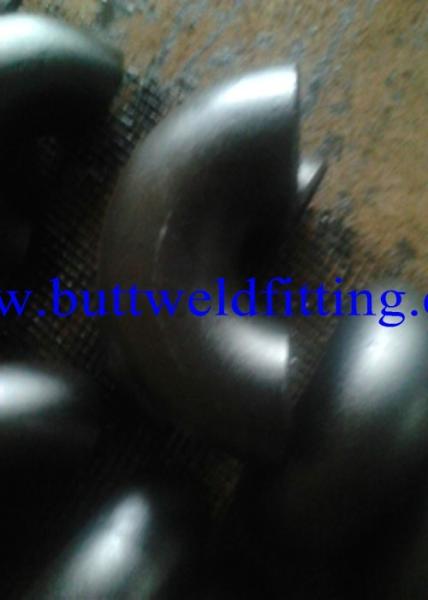

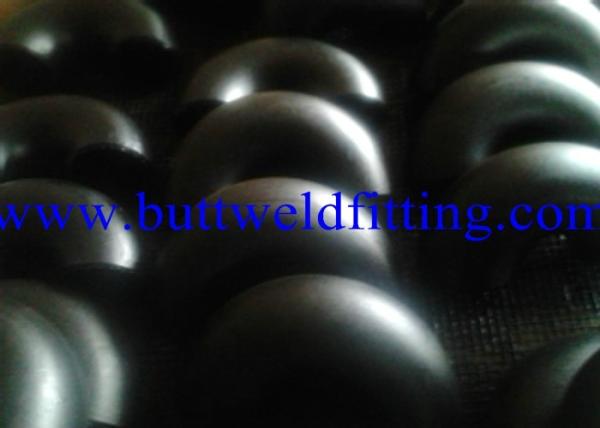

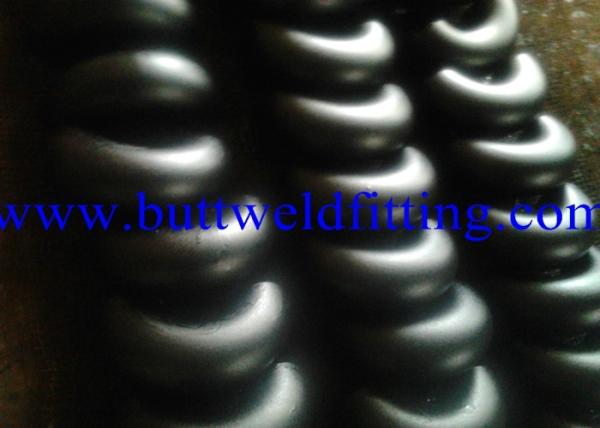

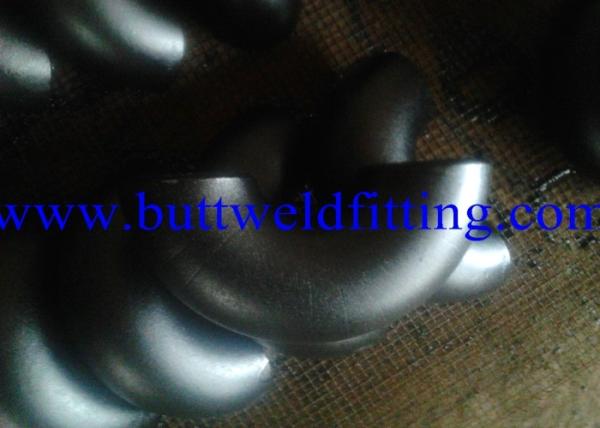

ASTM A234 WPB WPL9 Butt Weld Fittings Elbow , Stub end , Pipe End Cap
ASTM A234 WPB WPL9 Butt Weld Fittings Elbow , Stub end , Pipe End Cap
ASTM A234 WPB WPL9 Butt Weld Fittings Elbow , Stub end , Pipe End Cap
ASTM A234 WPB WPL9 Butt Weld Fittings Elbow , Stub end , Pipe End Cap
ASTM A234 WPB WPL9 Butt Weld Fittings Elbow , Stub end , Pipe End Cap
ASTM A234 WPB WPL9 Butt Weld Fittings Elbow , Stub end , Pipe End Cap
ASTM A234 WPB WPL9 Butt Weld Fittings Elbow , Stub end , Pipe End Cap
ASTM A234 WPB WPL9 Butt Weld Fittings Elbow , Stub end , Pipe End Cap
ASTM A234 WPB WPL9 Butt Weld Fittings Elbow , Stub end , Pipe End Cap
ASTM A234 WPB WPL9 Butt Weld Fittings Elbow , Stub end , Pipe End Cap
ASTM A234 WPB WPL9 Butt Weld Fittings Elbow , Stub end , Pipe End Cap
ASTM A234 WPB WPL9 Butt Weld Fittings Elbow , Stub end , Pipe End Cap
Specifications
Brand Name :
TOBO
Model Number :
ASTM A234 WPB WPL9
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
CHINA
MOQ :
3PCS
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
9980000PCS Per Month
Delivery Time :
15DAYS
Packaging Details :
PLY-WOODEN CASE OR PALLET
Material :
ASTM A234 WPB WPL9
Thickness: :
Sch5-Sch160, STD, XS, XXS
Testing: :
direct reading spectrometer,Hydrostatic test,X-Ray flaw detector,Ultrasonic flaw detector,Magentic particle inspection,etc
Surface Finish: :
sand blast, black painting, galvanizing finish
Manufacturing process :
Push, Press, Forge, Cast, etc.
Application :
Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Packaging Details: :
butt welding pipe fitting commonly should be shipped in wooden cases, wooden pallets or as per customers request
Description

ASTM A234 WPB WPL9 Butt Weld Fittings Elbow , Stub end , Pipe End Cap

ASTM A420/A420M-00

Grade

Composition, %

　

C

Mn

P

S

Si

Ni

Cu

Cr

Mo

V

Nb

WPL6(1)(2)

0.30

0.60-1.35

0.035

0.040

0.15-0.30

0.40

0.40

0.30

0.12

0.08

0.02

WPL9

0.20

0.40-1.06

0.030

0.030

-

1.60-2.24

0.75-1.25

-

-

-

-

GENERAL NOTE:
All values are maximum unless otherwise indicated.

NOTES: (1) For each reduction of 0.01% C below 0.30%, an increase of 0.05% Mn above 1.06% will be permitted, up to a maximum of 1.35%. (2) Fittings made from forgings may have 1.35% max Mn.

Tensile Requirements

WPL6

WPL9

Tensile Strength, min, ksi [MPa]

60-85[415-585]

63-88[435-610]

Yield Strength, min, ksi [MPa]

35[240]

46[315]

Wall thickness

Elongation Requirements

in

mm

Longitudinal

Transverse

WPL6

WPL9

WPL6

WPL9

Standard round specimen, or small proportional specimen, min % in 4D

22

20

12

-

Rectangular Specimen for wall thickness 0.312in [7.94mm] and over, and for all small sizes tested in full section; min % in 2in[50mm]

³0.312

³7.94

30

28

16.5

18

Rectangular Specimen for wall thickness less than 0.312in [7.94mm]; min % in 2 in[50mm] (0.5in [12.7mm] wide specimen)

0.281

7.14

28.5

26.5

15.5

17.0

0.250

6.35

27.0

25.0

14.5

16.0

0.219

5.56

25.5

23.5

-

-

0.188

4.76

24.0

22.0

-

-

0.156

3.97

22.5

20.5

-

-

0.125

3.17

21.0

19.0

-

-

0.094

2.38

19.5

17.5

-

-

0.062

1.59

18.0

16.0

-

-

Where the wall thickness lies between two values above, the min elongation value is determined by the following equations:
WPL6 WPL9
Longitudinal E=48t+15.00 E=48t+13.00
Transverse E=32t+6.50 E=32t+8.00
E = elongation in 2in [50mm], %
t = actual thickness of specimen, in [mm]

Our Product Series: <Butt Welded Pipe Fittings>

1). Elbow (45° 90° 180°,SR/LR)

2). Tee (Equal Tee/ Reducer Tee)

3). Reducer (Concentric Reducer/Eccentric Reducer)

4). Cap

5). Flange (SO Flange/ WN Flange/Blind Flange)

5). And some other pipe products in different Material Grade, Carbon Steel / Alloy Steel/ Stainless Steel.

Size: 1/2"-72"

Thickness:SCH5,SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,XXS,SCH100,SCH120,SCH140,SCH160

Standard: ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/ DIN2615 /GB-12459/GB-T13401,Gost17375

Material:

Products/Material

Elbow, Tee ,Reducers ,Flange ,Cap , pipe stainless steel 90 degree elbow

Carbon steel

America

ASTM A234 WPB WPC A105 A106 A53 A283-D API5L B A671-CC-70 A515-50 A135-A A179-C A214-C A192 A226 A315-B A178-C A210-A

Europe

ST33 ST37 ST37-2 ST35.8 ST42 ST42-2 ST45-8 ST45-4

Lowcarbonsteel

America

A420 WPL6 A350LF2 A333 Gr6 A671-CC-60 A516-60 A333-3.4 A334-3.4 A333-8 A334-8 A210-C A333-1.6 A333-7.9 A334-1.6 A334-7.9

Europe

St52.4 St52 TTSt35N 10Ni14 X8Ni9

Linepipe

MSS SP75

WPYH42

A694

F42

API5L

X42

API5L(DSW)

X42

WPYH46

F46

X46

X46

WPYH52

F52

X52

X52

WPYH56

F56

X56

X56

WPYH60

F60

X60

X60

WPYH65

F65

X65

X65

WPYH70

F70

X70

X70

Alloy Steel

America

A369-FP1 A369-FP2 A250-T1 A209-T1 A213-T2 A213-T9 A213-T12 A199-T11 A199-T22 A335-P1 A335-P2 A335-P5 A335-P11 A335-P12 A335-P22 A335-P91 A335-P92

Europe

15Mo3 13CrMo44 10CrMo910 12CrMo195

Stainless Steel

America

A553-Gr.Ⅰ.Ⅱ A353 A320-405 A320-410S A320-403 A320-430 A320-304 A320-302 A320-321 A320-316 A320-317 A320-304L A320-316L A320-317L A320-347 A320-310

Europe

X8Ni9 X7Cr13 X10Cr13 X8Cr17 X5CrNi189 X10CrNiTi189 X2CrNi189 X2CrNiMo1810 X10CrNiNb189

Surface Treatment:

1) Carbon steel:Shot blasted, black painting, rust-proof oil, transparent oil, electric galvanizing,, hot galvanizing

2)Alloy steel:Shot blasted, black painting, rust-proof oil, transparent oil, electric galvanizing,, hot galvanizing

3)Stainless steel: Polished

Application Fields:Chemical Industry /Petroleum Industry /Power Industry/Metallurgical Industry/Building Industry /Ship-building Industry

Packing: plywood cases, pallets, nylon bags or according to the customers' requirements

Equipment: Press machine,Bend machine,Pushing machine,Grooveing machine,Gush arenaceous,etc

Testing:direct reading spectrometer,Hydrostatic test,X-Ray flaw detector,Ultrasonic flaw detector,Magentic particle inspection,etc
