A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
Specifications
Brand Name :
TOBO
Model Number :
A403 WP316L WP321 WP310 WP317L
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
CHINA
MOQ :
2PCS
Price :
USD0.3-200 PER PC
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
9990000PCS Per Month
Delivery Time :
15DAYS
Packaging Details :
PLY-WOODEN CASE OR PALLET
Type: :
seamless cap, butt welding cap , carbon steel cap,steel pipe end cap,steel cap,astm mild steel cap,hot rolled steel cap,steel tube cap
Material Grade :
A403 WP316L WP321 WP310 WP317L
Product Type :
Con / Ecc Reducer
Thickness: :
Sch5-Sch160, STD, XS, XXS
Standard: :
ANSI/ASTM B16.9/16.28, API 5L, DIN2617, JIS B2311/2312/2313
Description

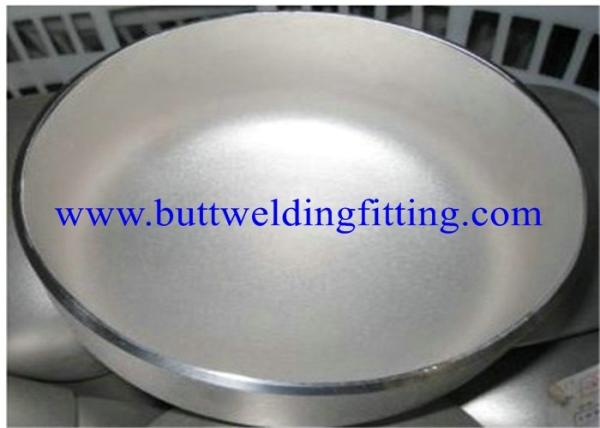

A403 WP316L WP321 WP310 WP317L Stainless Steel Caps 6 Inch 8” SCH40S SCH80 SCH120

Description:

1. Product :Stainless Steel Caps

2. Type: seamless cap, butt welding cap , carbon steel cap,steel pipe end cap,steel cap,astm mild steel cap,hot rolled steel cap,steel tube cap

3. Tecnique: Forged, Press-Forming, Casting

4. Size: NPS 1/2"-72"

5. Thickness:
SCH5, SCH10, SCH20, SCH30, STD, SGP, SCH40, SCH60, XS, SCH80, XXS, SCH100, SCH120, SCH140, SCH160, XXS, DIN, JIS standard thickness

6. Material:
Stainless steel: A403 WP304/TP304, WP304L/TP304L, WP316/TP316, WP316L/TP316L, WP321/TP321, WP310/TP310^

7. Standard: ANSI/ASTM B16.9/16.28, API 5L, DIN2617, JIS B2311/2312/2313,
we can also produce according to drawing by customers.

8. Surface treat: Black painting,varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE,etc.

9. Packing: in wooden cases or pallets,or as per clients' requirements

Applications:

Widely used in connecting the long-distance piping engineering ,such as transmission of the finished oil,
transmission of the natural gas and the deep processing as well as transmission of coal bed gas,
petroleum industry, chemical industry, construction industry, domestic installation pharmaceutical, electrical power, light industry, textile, Iron &steel industry, nuclear station, vessels and transmission of the coal slurry and etc.

Specification

Nominal Pipe Size (NPS)

Outside Diameter

Length,E

Limiting Wall Tickness for Length,E

Length,E1

mm

Inch

1/2

21.3

0.84

25

4.57

25

3/4

26.9

1.05

25

3.81

25

1

33.7

1.32

38

4.57

38

1.1/4

42.4

1.66

38

4.83

38

1.1/2

48.3

1.90

38

5.08

38

2

60.3

2.38

38

5.59

44

2.1/2

73

2.88

38

7.11

51

3

88.9

3.50

51

7.62

64

3.1/2

101.6

4.00

64

8.13

76

4

114.3

4.50

64

8.64

76

5

141.3

5.56

76

9.65

89

6

168.3

6.62

89

10.92

102

8

219.1

8.62

102

12.7

127

10

273

10.75

127

12.7

152

12

323.9

12.75

152

12.7

178

14

355.6

14.00

165

12.7

191

16

406.4

16.00

178

12.7

203

18

457

18.00

203

12.7

229

20

508

20.00

229

12.7

254

22

559

22.00

254

12.7

254

24

610

24.00

267

12.7

305

26

660

26.00

267

--

--

28

711

28.00

267

--

--

30

762

30.00

267

--

--

32

813

32.00

267

--

--

34

864

34.00

267

--

--

36

914

36.00

267

--

--

38

965

38.00

305

--

--

40

1016

40.00

305

--

--

42

1067

42.00

305

--

--

44

1118

44.00

343

--

--

46

1168

46.00

343

--

--

48

1219

48.00

343

--

--

A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
