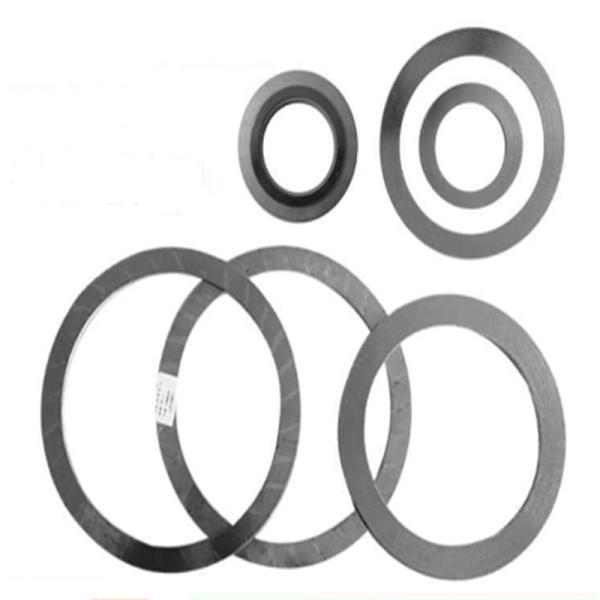

Product Description:

The Spiral Wound Gasket is a type of high-performance gasket that is commonly used in industrial applications. With its unique design and properties, it has become a popular choice for sealing applications in pipelines, valves, pumps, and other equipment.

The Spiral Wound Gasket is made of a helical-formed gasket with a V-shaped or W-shaped profile. The gasket core is made of a thin metal strip, typically stainless steel, which is wound in a spiral pattern and then overlaid with alternating layers of filler material and a centering ring. The filler material is usually flexible graphite, which provides excellent sealing properties and high temperature resistance.

• Density: 8.89 G/cm3
• Tensile Strength: 515 MPa
• Outer Diameter: 4-1/2
• Pressure: 3000 Psi
• Corrosion Resistance: Excellent

• Helical-formed Gasket: The spiral wound gasket is formed in a helical shape, providing a tight and secure seal in high-pressure and high-temperature applications.
• Helical-wound Gasket Core: The core of the gasket is made of a thin metal strip wound in a spiral pattern, providing stability and strength to the gasket.
• V-shaped or W-shaped Profile: The gasket has a V-shaped or W-shaped profile, which allows for better compression and sealing properties.
• Flexible Graphite Filler: The filler material used in the spiral wound gasket is flexible graphite, which has excellent sealing properties and can withstand high temperatures.
• High Temperature Resistance: The spiral wound gasket is designed to withstand high temperatures, making it suitable for use in a variety of industrial applications.

The Spiral Wound Gasket is commonly used in the following applications:

• Pipelines
• Valves
• Pumps
• Heat exchangers
• Flanges

The Spiral Wound Gasket is a versatile and high-performance sealing solution that offers excellent sealing properties, corrosion resistance, and high temperature resistance. Its unique design and features make it a popular choice for various industrial applications. Choose the Spiral Wound Gasket for your sealing needs and experience its superior performance and reliability.

Features:

• Product Name: Spiral Wound Gasket
• Inner Diameter: 2-3/4
• Recovery: 15-25%
• Corrosion Resistance: Excellent
• Thickness: 1/8
• Tensile Strength: 515 MPa
• Features:
  • Spiral-wrapped design for secure sealing
  • Helical-wound construction for flexibility and resilience
  • Also known as helical-formed or metal-wound gasket
  • Excellent corrosion resistance for long-lasting performance
  • Thin 1/8 inch thickness for versatility in various applications
  • Can recover 15-25% of its original thickness for reliable sealing
  • High tensile strength of 515 MPa for durability and stability

Technical Parameters:

Applications:

The Spiral Wound Gasket, also known as Helical-wound Gasket or Helical-formed Gasket, is a highly reliable sealing solution for flange joints in various industries. It is manufactured by TOBO, a renowned brand in the field of gasket production.

The gasket is made by spiral-wrapping a metal strip and a non-metallic filler material, such as graphite or PTFE, around a centering ring. This unique design makes it capable of withstanding high pressures, extreme temperatures, and chemical resistance, making it a popular choice for critical applications.

• Brand Name: TOBO
• Model Number: #0001
• Place of Origin: China
• Tear Resistance: Excellent
• Pressure: 3000 Psi
• Thickness: 1/8"
• Tensile Strength: 515 MPa
• Compressibility: 8-15%

The Spiral Wound Gasket is widely used in various industries, including oil and gas, chemical, power generation, and petrochemical. Its versatility makes it suitable for both static and dynamic applications, making it an ideal choice for flange joints in pipelines, valves, pumps, heat exchangers, and other equipment.

Here are some common scenarios where the Spiral Wound Gasket can be used:

• High-pressure and high-temperature applications, such as in steam systems, refineries, and power plants.
• Flange joints in pipelines carrying corrosive fluids, such as acids, alkalis, and solvents.
• Equipment operating at extreme temperatures, such as cryogenic systems or furnaces.
• Equipment that requires frequent maintenance and dismantling, as the gasket can easily be removed and reinstalled.

With its excellent tear resistance and high compressibility, the Spiral Wound Gasket can effectively seal flange joints, preventing leakage and ensuring the safety and efficiency of industrial processes.

Trust TOBO's Spiral Wound Gasket for reliable and long-lasting sealing solutions in your industrial applications. Contact us today to learn more or request a quote for your specific needs.

Customization:

Brand Name: TOBO

Model Number: #0001

Place of Origin: China

Abrasion Resistance: Excellent

Pressure: 3000 Psi

Recovery: 15-25%

Thickness: 1/8

Temperature: 1200°F

Experience high-quality and reliable sealing with TOBO's customized Helical-wound Gasket #0001. Our Spiral-wrapped Gasket is designed to withstand high pressure and temperature, making it suitable for various industrial applications. With our excellent abrasion resistance and 15-25% recovery rate, you can trust our gaskets to provide long-lasting and efficient sealing solutions.

At TOBO, we understand that every project has unique requirements. That's why we offer customized solutions for our Helical-wound Gaskets to meet your specific needs. Our team of experts will work closely with you to design and manufacture gaskets that will perfectly fit your application and ensure leak-free performance.

Choose TOBO for your Helical-wound Gasket needs and experience the difference of our high-quality and customized service. Contact us now for more information and to request a quote.

Packing and Shipping:

Our Spiral Wound Gaskets are carefully packaged to ensure safe delivery to our customers. Each gasket is individually wrapped in plastic and then placed in a sturdy cardboard box for added protection during shipping. The boxes are then stacked onto pallets and shrink-wrapped to prevent any movement during transit.

We offer various shipping options to meet the needs of our customers. For small orders, we use international courier services such as DHL, FedEx, and UPS. For larger orders, we work with freight forwarders to arrange sea or air freight. Our team will work closely with the chosen shipping company to ensure timely and efficient delivery of your gaskets.

We also offer customized packaging and shipping services for bulk orders or special requirements. Our experienced team will work with you to find the best packaging and shipping solution for your specific needs.

Upon receiving your gaskets, please carefully inspect the packaging for any signs of damage during transit. If you notice any issues, please contact us immediately so we can address the problem.

Thank you for choosing our Spiral Wound Gaskets. We are committed to providing high-quality products and reliable shipping to our customers.

FAQ:

• Q: What is the brand name of this product?
  A: The brand name of this product is TOBO.
• Q: What is the model number of this product?
  A: The model number of this product is #0001.
• Q: Where is this product made?
  A: This product is made in China.
• Q: What is a Spiral Wound Gasket?
  A: A Spiral Wound Gasket is a type of gasket made by winding a metal strip and a non-metallic filler material.
• Q: What are the applications of Spiral Wound Gaskets?
  A: Spiral Wound Gaskets are commonly used in high-pressure and high-temperature applications, such as in pipelines, valves, and pumps.
