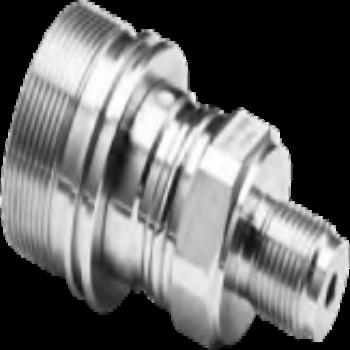

BW-DKS-CP300-M2 PA-grade monocrystalline silicon pressure sensors
BW-DKS-CP300-M2 PA-grade monocrystalline silicon pressure sensors
BW-DKS-CP300-M2 PA-grade monocrystalline silicon pressure sensors
BW-DKS-CP300-M2 PA-grade monocrystalline silicon pressure sensors
BW-DKS-CP300-M2 PA-grade monocrystalline silicon pressure sensors
BW-DKS-CP300-M2 PA-grade monocrystalline silicon pressure sensors
Specifications
Brand Name :
BEWIS
Model Number :
BW-DKS-CP300-M2
Place of Origin :
China
MOQ :
1
Price :
$71
Payment Terms :
T/T
Range :
100kPa
Forward overvoltage :
7MPa
Nonlinear :
≤ 0.16％ FS
Temperature coefficient :
≤ 0.3%FS/10K
Output signal :
14mV/V
Working temperature :
-40~85°C
Description

BW-DKS-CP300 Pressure Sensor adopts monocrystalline silicon sensor chip made of German advanced MEMS technology, and the world's original monocrystalline silicon double-beam suspension design, which achieves the international leading over-pressure performance and ensures the excellent stability of the signal. Embedded with the intelligent original imported pressure measuring diaphragm and signal processing module, it realises the perfect combination of static pressure and temperature compensation, which can provide high measurement accuracy and stability under a wide range of static pressure and temperature.

BW-DKS-CP300 Pressure Sensor is a pressure sensor that acts directly on the diaphragm of the sensor, causing the diaphragm to produce a micro-displacement proportional to the pressure, detecting this change with an integrated electronic circuit and converting the output to a standard measurement signal corresponding to the pressure.

BW-DKS-CP300-M2 PA-grade monocrystalline silicon pressure sensors

BW-DKS-CP300-M2 PA-grade monocrystalline silicon pressure sensors

BW-DKS-CP300-M2 PA-grade monocrystalline silicon pressure sensors

BW-DKS-CP300-M2 PA-grade monocrystalline silicon pressure sensors

Model Specification code Clarification
BW-DKS-CP300 PA Grade Monocrystalline Silicon Pressure Sensors

Range

(Capsule)

S2 ··········································

M1 ··········································

M 2 ··········································

M4 ··········································

L1 ··········································

L2 ··········································

6KPa

40kPa

100kPa

400KPa

4MPa

40MPa
Shell connection thread

N00 ······································

M45 ······································

G55 ······································

M56 ······································

M27 ·····································

No

M45*1.5 Thread

G55*16 Thread

M56*1.5 Thread

M27*2 Thread

Isolation diaphragm

SS ··································

HC ··································

TA ··································

GD ··································

SUS 316L

Hastelloy C-276

Tantalum

SUS 316L Gilt
Filler fluid

S ·································

F · ································

O ·································

Silicone oil

Fluorine oil

Vegetable oil
Process Connection

M20M ·························

G12M ························

N12M ························

N12F· ························

M20 x1.5 External Thread

G1/2 External Thread

1/2NPT External Thread

1/2NPT Internal Thread
Pressure type

- ···························

A ···························

Gauge pressure

Absolute pressure
Additional options Please contact sales
