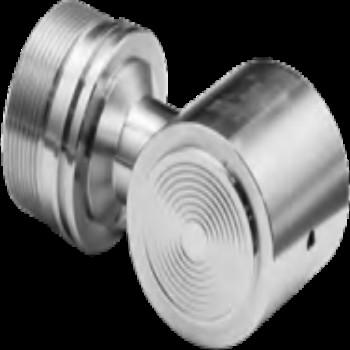

BW-DKS-DP300-S1 PA-grade monocrystalline silicon differential pressure sensor
BW-DKS-DP300-S1 PA-grade monocrystalline silicon differential pressure sensor
BW-DKS-DP300-S1 PA-grade monocrystalline silicon differential pressure sensor
BW-DKS-DP300-S1 PA-grade monocrystalline silicon differential pressure sensor
BW-DKS-DP300-S1 PA-grade monocrystalline silicon differential pressure sensor
BW-DKS-DP300-S1 PA-grade monocrystalline silicon differential pressure sensor
Specifications
Brand Name :
BEWIS
Model Number :
BW-DKS-DP300-S1
Place of Origin :
China
MOQ :
1
Price :
$136
Payment Terms :
T/T
Range :
1kPa
Unilateral overvoltage :
1MPa
Bilateral static pressure :
16MPa
Response time :
10ms
Long-term stability :
≤ 0.03％ FS/ Year
Output signal :
4mV/V
Working temperature :
-40~85°C
Nonlinear :
≤ 0.2％ FS
Temperature coefficient :
≤ 0.1%FS/10K
Description

BW-DKS-DP300 Differential Pressure Sensor adopts monocrystalline silicon sensor chip made of German advanced MEMS technology, and the world's original monocrystalline silicon double-beam suspension design, which achieves the international leading over-pressure performance and ensures the excellent stability of the signal. Embedded with the intelligent original imported pressure measuring diaphragm and signal processing module, it realises the perfect combination of static pressure and temperature compensation, which can provide high measurement accuracy and stability under a wide range of static pressure and temperature.

BW-DKS-DP300 Differential Pressure Sensor is a pressure sensor that acts directly on the diaphragm of the sensor, causing the diaphragm to produce a micro-displacement proportional to the pressure, detecting this change with an integrated electronic circuit and converting the output to a standard measurement signal corresponding to the pressure.

Product Dimensions

■ Differential pressure sensor with M45 housing connection ■ Differential pressure sensor with G55 housing connection

BW-DKS-DP300-S1 PA-grade monocrystalline silicon differential pressure sensor

Process connection scheme

BW-DKS-DP300-S1 PA-grade monocrystalline silicon differential pressure sensor

Model Specification code Clarification
BW-DKS-DP300 PA Grade Monocrystalline Silicon Differential Pressure Sensors

Range

(Capsule)

S1 ··········································

S2 ··········································

M1 ··········································

M2 ··········································

M4 ··········································

L1 ··········································

-1KPa~1KPa

-6kPa~6kPa

-40kPa~40kPa

-100KPa~100KPa

-400kPa~400kPa

-4MPa~4MPa
Shell connection thread

N00 ······································

M45 ······································

G55 ······································

M56 ······································

No

M45*1.5 Thread

G55*16 Thread

M56*1.5 Thread

Isolation diaphragm

SS ··································

HC ··································

TA ··································

GD ··································

SUS 316L

Hastelloy C-276

Tantalum

SUS 316L Gilt
Filler fluid

S ·································

F · ································

O ·································

Silicone oil

Fluorine oil

Vegetable oil
Clamping block seal

FS ···························

DS ···························

TS ···························

Fluorine rubber

Nitrile rubber

Polytetrafluoroethylene
Additional options Please contact sales
