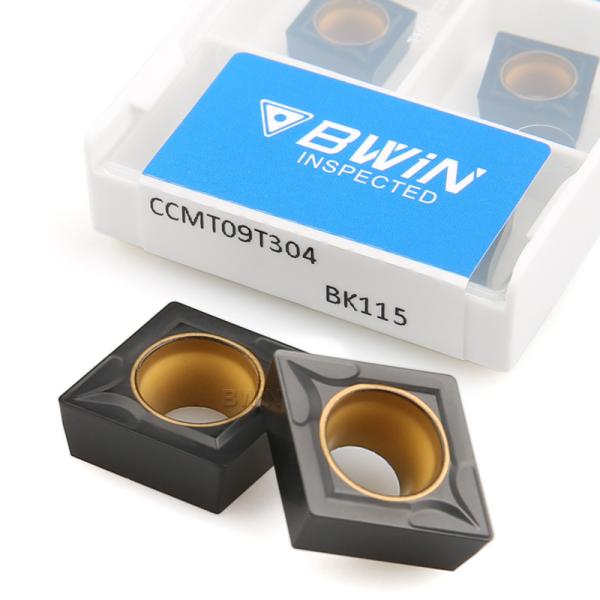

CNC Lathe Carbide Turning Inserts CCMT 09T304 CCMT 060204 CCMT 120408 CCMT Carbide Inserts
CNC Lathe Carbide Turning Inserts CCMT 09T304 CCMT 060204 CCMT 120408 CCMT Carbide Inserts
CNC Lathe Carbide Turning Inserts CCMT 09T304 CCMT 060204 CCMT 120408 CCMT Carbide Inserts
CNC Lathe Carbide Turning Inserts CCMT 09T304 CCMT 060204 CCMT 120408 CCMT Carbide Inserts
Specifications
Brand Name :
BWIN
Model Number :
CCMT09T304
Place of Origin :
China
MOQ :
10pcs/box
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1-10000pcs 7days
Delivery Time :
7 work days
Packaging Details :
Plastic box
Product name :
CCMT Cnc Lathe Carbide Turning Insert
Material :
Tungsten Carbide Turning Insert
Workpiece :
Cast iron
Usage :
Internal Turning Tool
Color :
Black
Coating :
CVD
Hardness :
HRC40-60
Feature :
Smooth cutting
Application :
CNC Machine
Package :
10pcs/Box
Description

cnc lathe carbide turning insert CCMT09t304 Insertos CCMT CCMT060204 CCMT120408

Quick Detail:

  • High strength edge
  • Precision coating
  • Durable
  • Excellent performance
  • Collapse resistance and wear resistance

Description:

  • The CCMT carbide lathe insert is made of the innovative cemented carbide raw material which is common to steel and stainless steel, so that the blade has excellent performance of high toughness, high wear resistance and high temperature resistance; The blade surface adopts a new wear-resistant coating process, which has good oxidation resistance, and is more resistant to high temperature and more durable; The cutting band of the edge gradually widens, and the edge strength gradually increases. 2. The cutting edge front angle gradually decreases from large to small, and the edge strength gradually increases. When the machining allowance is small, select the blade with small tolerance groove, and when the machining allowance is large, select the groove with large tolerance space.

Specifications:​

Brand BWIN
Model CCMT060204/CCMT09T304/CCMT120404/CCMT120408
Color Black
Workpiece Cast iron
Type Internal Turning Tool
Material Tungsten Carbide Turning Inserts
Processing Type Medium Cutting
Feature High strength edge
Precision coating
Durable
Excellent performance

Collapse resistance and wear resistance
Standard ISO
Quantity 10pcs/box
Weight 0.018kg
Package Plastic Box
Customized Support OEM, ODM

Lead Time:

antity(pieces) 1 - 3000 >3000
Lead time (days) 7 To be negotiated

CNC Lathe Carbide Turning Inserts CCMT 09T304 CCMT 060204 CCMT 120408 CCMT Carbide Inserts

I(mm)
d(mm)
t(mm)
d1(mm)
06
6.35
2.38
2.8
09
9.525
3.97
4.4
12
12.7
4.76
5.5

Notice:

  • The carbide lathe insert shall not be collided or dropped on the ground and must be handled with care.
  • Before installing the carbide lathe insert, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
  • After installation, it is necessary to confirm whether the central hole of the carbide lathe insert is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
  • When using, do not exceed the specified high speed
  • When the tungsten carbide lathe insert is not used, hang the blade vertically on the dry shelf.

Applications:

Our tungsten carbide lathe insert could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:

CNC Lathe Carbide Turning Inserts CCMT 09T304 CCMT 060204 CCMT 120408 CCMT Carbide Inserts

FAQ
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.
2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.
3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle
4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.
5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).
6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material. Increase cutting speed,Increase rake angle,Select small sticking force.
