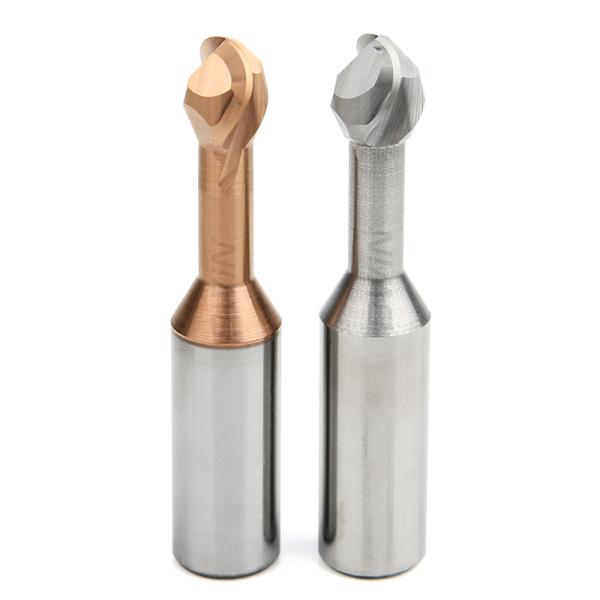

Arch Lollipop Milling Cutters Tungsten Steel Carbide HRC55 Lollipop End Mill
Arch Lollipop Milling Cutters Tungsten Steel Carbide HRC55 Lollipop End Mill
Arch Lollipop Milling Cutters Tungsten Steel Carbide HRC55 Lollipop End Mill
Arch Lollipop Milling Cutters Tungsten Steel Carbide HRC55 Lollipop End Mill
Specifications
Brand Name :
BWIN
Model Number :
R2*D2*6*D4*50L
Place of Origin :
China
MOQ :
1pcs/box
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1-10000pcs 7days
Delivery Time :
7 work days
Packaging Details :
Plastic box
Product name :
HRC55 Arch Milling Cutter
Model :
D1-D20
Material :
Tungsten HRC55 Lollipop End Mill
Workpiece :
stainless steel
Usage :
Milling Machine
Coating :
Cooper
HRC :
HRC55
Feature :
Good Wear Resistance
Application :
Milling
Package :
1pcs/Box
Description

Quick Detail OF arch milling cutter

  • High quality tungsten steel bars
  • High quality nano coating
  • Double edged efficient spiral groove
  • Reasonable avoidance length
  • Passivation treatment process
  • high speed cutting
  • One blade molding

Description OF arch End Mill

  • The HRC55 arch milling cutter adopts brand new high-quality fine tungsten steel bars, which have high wear resistance and strength, greatly improving the tool's service life; Efficient spiral groove can spiral heat dissipation, making chip removal lighter and faster, improving work efficiency; A reasonable void avoidance length is beneficial for reducing chip removal resistance and improving the surface smoothness of the workpiece; The seismic design of the cutting edge effectively improves the cutting efficiency of the cutting tool.

Milling parameters OF lollipop Endmill

HRC55 Carbide arch milling cutter
 Tool length fz&v
Short

1
Long1 0.9
Overlength 0.8
Speciality 0.6
Type Material

Strength

N/mm²

Hardness

HRC

 Cooling
Air

Dry cutting

 Lubricating fluid
P PI

P1.1

 Non alloy structural steel, free cutting structural steel, carburized steel and quenched and tempered steel <700 √ √ √
P1.2 quenched and tempered steel <1200 √ √ √
P2 P2.1 Alloyed nitrided steel, carburized steel and quenched and tempered steel <900 √ √ √
P2.2 Tool steel, bearing steel, spring steel and high-speed steel <1400 √ √
P3 P3.1 Tool steel, bearing steel, spring steel and high-speed steel <900 √ √ √
P3.2 Tool steel, bearing steel, spring steel and high-speed steel <1500 √ √

Arch Lollipop Milling Cutters Tungsten Steel Carbide HRC55 Lollipop End Mill Sloting
Vc
(m/min)		 fz(mm/Tooth)
Diameter
2 4 6 8 10 12 16 20
112 0.01 0.018 0.026 0.034 0.041 0.048 0.06 0.069
92 0.01 0.017 0.025 0.032 0.038 0.045 0.056 0.065
100 0.01 0.018 0.026 0.034 0.041 0.048 0.06 0.069
72 0.009 0.015 0.022 0.028 0.034 0.04 0.05 0.058
64 0.01 0.018 0.025 0.032 0.039 0.045 0.057 0.066
56 0.009 0.016 0.023 0.029 0.036 0.041 0.052 0.06

Arch Lollipop Milling Cutters Tungsten Steel Carbide HRC55 Lollipop End Mill Roughing
Vc
(m/min)		 fz(mm/Tooth)
Diameter
2 4 6 8 10 12 16 20
228 0.018 0.031 0.045 0.057 0.070 0.081 0.101 0.118
208 0.017 0.029 0.042 0.054 0.065 0.071 0.095 0.11
184 0.018 0.031 0.045 0.057 0.070 0.081 0.101 0.118
144 0.015 0.026 0.037 0.048 0.058 0.068 0.085 0.098
132 0.017 0.03 0.042 0.054 0.066 0.077 0.096 0.112
112 0.015 0.027 0.039 0.05 0.060 0.07 0.088 0.102

Arch Lollipop Milling Cutters Tungsten Steel Carbide HRC55 Lollipop End Mill Finish
Vc
m/min		 fz(mm/Tooth)
Diameter
2 4 6 8 10 12 14 16 18 20
332 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
272 0.026 0.046 0.066 0.085 0.103 0.12 0.135 0.15 0.162 0.173
304 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
212 0.023 0.041 0.059 0.076 0.092 0.107 0.121 0.134 0.145 0.155
196 0.027 0.047 0.067 0.086 0.104 0.122 0.137 0.152 0.165 0.177
168 0.024 0.043 0.061 0.079 0.095 0.111 0.125 0.139 0.150 0.161
Note OF lollipop Milling Cutter
  • If the following carbide HRC55 arch milling cutter cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Cutting
Diameter
Avoidance
length
Shank
diameter
Overall
length
Cutting edge
diameter
R diameter
Flutes
4
6
4
50
2
R2
2
6
10
6
50
3
R3
2
8
12
8
60
4
R4
2
10
15
10
60
5
R5
2
12
15
12
60
6
R6
2

Instructions OF arch Endmill

1. Before using the carbide HRC55 arch milling cutter , please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.

2. The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.

3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.

4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide lollipop end mill.

5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.

Applications OF lollipop Endmill

The cutting edge of the HRC55 lollipop milling cutter is covered with a bronze colored nano coating, suitable for materials within HRC55, including iron, carbon steel, cast iron, mold steel, alloy steel, tool steel, heat treated steel, and welding repair steel

Arch Lollipop Milling Cutters Tungsten Steel Carbide HRC55 Lollipop End Mill


FAQ

Q1. The tool breaks when cutting in or pulling out the workpiece

The feed rate and cutting depth can be reduced, and the cutting edge length can be shortened to the minimum of the necessary length.

Q2. Tool breaks during normal machining

Reduce the feed rate and cutting depth.

The tool shall be passivated.

Replace the clamp or spring collet.

The tool with high cutting edge number changes the tool with low cutting edge number to improve chip removal and prevent chip blockage.

Replace dry milling with wet milling (using cutting fluid), and use it with vortex tube gun to reduce tool temperature and avoid tool overheating.

If the wet milling fluid supply direction is changed from the front to the oblique rear or transverse top, the coolant flow should be sufficient.

Q3. The tool breaks when the feed direction changes

(1) Use arc interpolation (NC machine tool), or temporarily stop (temporarily) feeding.

(2) Reduce (decrease) the feed before and after the direction change.

(3) Replace the clamp or spring collet.

Q4. Problem: Part of the blade tip breaks

Chamfer the corners with manual grinding.

Change down milling to up milling.
