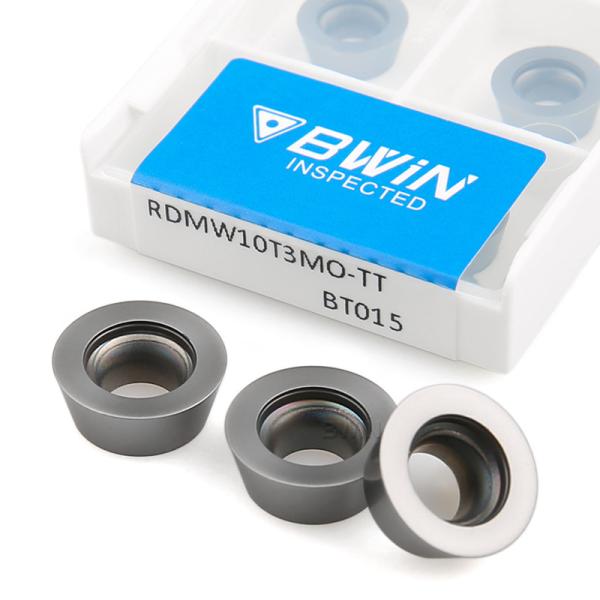

Rdmw 10t3 12t3 Milling Carbide Insert For Milling Fast Feed Alloy
Rdmw 10t3 12t3 Milling Carbide Insert For Milling Fast Feed Alloy
Rdmw 10t3 12t3 Milling Carbide Insert For Milling Fast Feed Alloy
Rdmw 10t3 12t3 Milling Carbide Insert For Milling Fast Feed Alloy
Specifications
Brand Name :
BWIN
Model Number :
Rdmt12t3
Place of Origin :
China
MOQ :
10pcs/box
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1-10000pcs 7days
Delivery Time :
7 work days
Packaging Details :
Plastic box
Product name :
Rdmw12t3 Milling Carbide Insert
Material :
Tungsten Fast Feed Milling Cutter Insert
Workpiece :
Steel/Cast iron
Usage :
Milling Machine Cutting
Color :
Black
Coating :
PVD CVD
Hardness :
HRC40-60
Feature :
Corrosion resistance
Application :
Milling Machine
Package :
10pcs/Box
Description

Carbide Milling Tooling Rdmw 10t3 12t3 Insert Cnc Cutter Fast Feed Alloy

Quick Detail:

  • Selection materials
  • Durable
  • Precision machining
  • Smooth cutting
  • Work efficiently
  • Long life

Description:

  • RDMW milling carbide insert is made of imported base material, which makes the blade have higher hardness and strength, and enhances the quality of the blade; The use of several smooth surface coatings can inhibit the bond chipping; In strict accordance with international standards, select the process, and fit it after installation; Scientific production process, fine workmanship, high-precision machine tool processing; The processing technology makes it doubly wear-resistant, and the service life is significantly improved.

Specifications:​

Brand BWIN
Model RDMW10T3 RDMW12T3
Color Black
Workpiece Steel/Cast iron
Type Milling
Material Carbide Milling Cutter Insert
Processing Type Medium Cutting
Feature Selection materials
Durable
Precision machining
Smooth cutting

Work efficiently
Standard ISO
Quantity 10pcs/box
Weight 0.015kg
Package Plastic Box
Customized Support OEM, ODM

Lead Time:

antity(pieces) 1 - 3000 >3000
Lead time (days) 7 To be negotiated

Notice:

  • The milling carbide insert shall not be collided or dropped on the ground and must be handled with care.
  • Before installing the milling carbide insert , the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
  • After installation, it is necessary to confirm whether the central hole of the milling carbide insert is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
  • When using, do not exceed the specified high speed
  • When the milling carbide insert is not used, hang the blade vertically on the dry shelf.

Applications:

Our milling carbide insert could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:

Rdmw 10t3 12t3 Milling Carbide Insert For Milling Fast Feed Alloy

Advantage:

1. Distribution and wholesale, complete in variety

Large quantity is preferred, product specifications are complete, and the pattern is subdivided into processing technology levels to meet your processing needs for different angles and different workpieces;

2. Carefully selected materials with reliable quality

Every detail has been strictly checked, and better products have been meticulously created. They are cheap, stable, durable and have a long service life

3. Sufficient supply and large inventory

We have our own factory, with a large amount of inventory to provide you with sufficient supply, so you don't need to worry about the shortage crisis, so that you can use it with confidence. Support customization, large quantity and price can be discussed, welcome to consult.

4. After sales service

We have a complete after-sales system. Cooperation is not the end, it is the beginning. If you have after-sales problems, please contact us at any time, and we will solve them for you as soon as possible.

FAQ
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.
2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.
3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle
4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.
5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).
6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material. Increase cutting speed,Increase rake angle,Select small sticking force.
