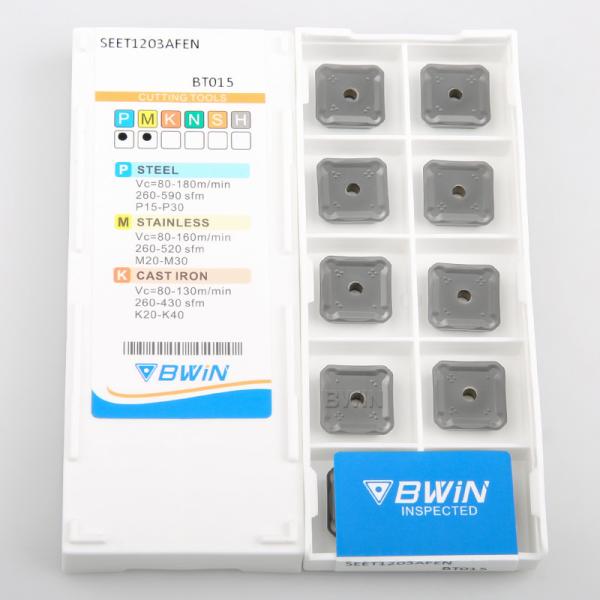

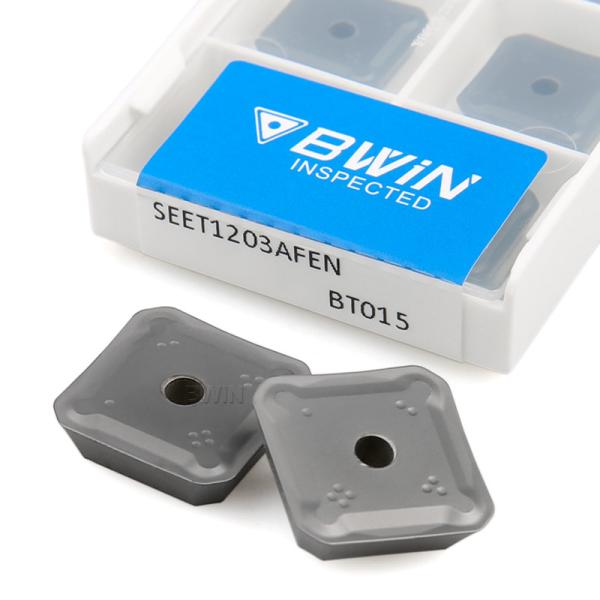

Seet 12t3 1203 Square Milling Inserts Afen Oem Face Milling Insert
Seet 12t3 1203 Square Milling Inserts Afen Oem Face Milling Insert
Seet 12t3 1203 Square Milling Inserts Afen Oem Face Milling Insert
Seet 12t3 1203 Square Milling Inserts Afen Oem Face Milling Insert
Specifications
Brand Name :
BWIN
Model Number :
SEET12T3
Place of Origin :
China
MOQ :
10pcs/box
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1-10000pcs 7days
Delivery Time :
7 work days
Packaging Details :
Plastic box
Product name :
seet Face Milling Insert
Material :
Carbide Milling Cutting Tool
Workpiece :
Cast iron
Usage :
Milling
Color :
Black
Coating :
PVD CVD
Hardness :
HRC40-60
Feature :
Good red hardness
Application :
Machining
Package :
10pcs/Box
Description

Milling Carbide Insert Seet 12t3 1203 Afen Cnc Machining Face Cutter Cutting Tool Oem

Quick Detail

  • Durable
  • Precision machining
  • Fast processing speed
  • Wear resistant and durable
  • High finish
  • High production efficiency

Description:

  • SEET milling carbide insert has a special coating process to make the blade surface smooth, reduce friction, and remove chips more smoothly; The unique nano structure coating is more closely combined with the substrate, with higher hardness and toughness; Good thermal stability and chemical stability provide more effective protection for cutting edges.

Specifications:​

Brand BWIN
Model

SEET12T3 SEET1203AFEN
Color

Black

Workpiece

Cast iron

Type

Milling
Material Carbide Milling Blade
Processing Type Medium Cutting
Feature Durable
Precision machining
Fast processing speed
Wear resistant and durable

High finish
Standard ISO
Quantity 10pcs/box
Weight 0.015kg
Package Plastic Box
Customized Support OEM, ODM

Lead Time:

antity(pieces) 1 - 3000 >3000
Lead time (days) 7 To be negotiated

Notice:

  • The milling carbide insert shall not be collided or dropped on the ground and must be handled with care.
  • Before installing the milling carbide insert, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
  • After installation, it is necessary to confirm whether the central hole of the milling carbide insert is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
  • When using, do not exceed the specified high speed
  • When the milling carbide insert is not used, hang the blade vertically on the dry shelf.

Applications:

Our milling carbide insert could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:

Seet 12t3 1203 Square Milling Inserts Afen Oem Face Milling Insert

Advantage

1. Honest merchants, reasonable price and quality assurance

2. Large inventory, sufficient supply and high cost performance

3. Customer service responds in time and delivers goods quickly

4. Provide after-sale guarantee to make your after-sale service free

FAQ
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.
2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.
3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle
4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.
5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).
6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material. Increase cutting speed,Increase rake angle,Select small sticking force.
