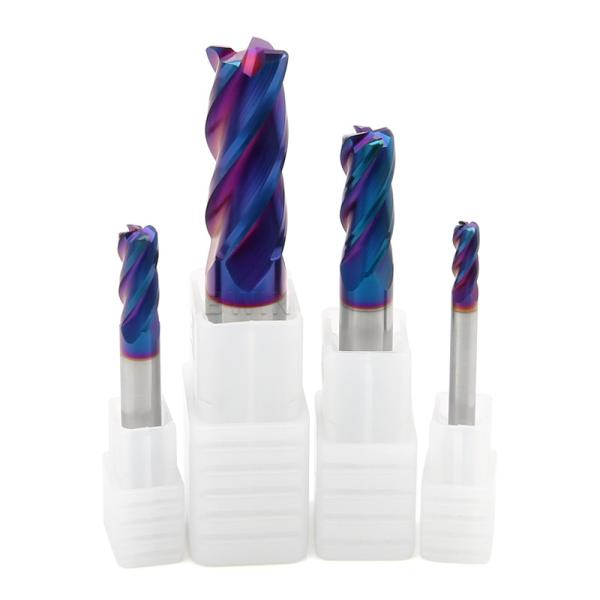

HRC65 Solid Carbided Corner Radius End Mills R6 4 Flutes Tungsten Milling Cutter
HRC65 Solid Carbided Corner Radius End Mills R6 4 Flutes Tungsten Milling Cutter
HRC65 Solid Carbided Corner Radius End Mills R6 4 Flutes Tungsten Milling Cutter
HRC65 Solid Carbided Corner Radius End Mills R6 4 Flutes Tungsten Milling Cutter
Specifications
Brand Name :
BWIN
Model Number :
Φ6R0.5*15*d6*50L
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1-10000pcs 7days
Delivery Time :
7 work days
Packaging Details :
Plastic box
Product name :
Solid Carbided Corner Radius End Mills
Model :
R6 4 Flutes Tungsten Milling Cutter
Material :
Solid Carbide HRC65 Corner Radius Endmill
Workpiece :
Hardened Steel
Usage :
CNC
Coating :
AlTiSiN
HRC :
HRC65
Feature :
Wear-Resistant
Application :
CNC Milling Tool
Package :
1pcs/Box
Description

HRC65 Solid Carbided Corner Radius End Mills Endmill R6 4 Flutes Tungsten Milling Cutter

Characteristic:​

  • High gloss mirror surface, more wear-resistant
  • Sharp four edge design
  • Ultra wide chip removal space
  • Large core diameter design
  • Chamfering is easy to operate

Description:

  • The carbide end mill is made of new micro tungsten steel base material with high hardness and wear resistance; Scientific and engineering edge design, high gloss mirror surface, anti-seismic and wear-resistant, higher blade finish, sharper blade, and smoother cutting; Four edge design reduces cutting wear, and the cutter head is more sharp and durable; Ultra wide capacity chip removal has powerful cutting, which can realize high-speed machining, and the workpiece precision is higher. The large core diameter design greatly enhances the rigidity and seismic resistance of the tool, reduces tool breakage, and improves the processing efficiency; The chamfer design of the handle can realize convenient clamping.​​​

Milling Parameters:

HRC45 Carbide End Mill Tool length fz&v
Short 1
Long1 0.9
Overlength 0.8
Speciality 0.6
Type Material

Strength
N/mm²

Hardness

HRC

 Cooling
Air Dry cutting Lubricating fluid
P PI P1.1 Non alloy structural steel, free cutting structural steel, carburized steel and quenched and tempered steel <700 √ √ √
P1.2 quenched and tempered steel <1200 √ √ √
P2 P2.1 Alloyed nitrided steel, carburized steel and quenched and tempered steel <900 √ √ √
P2.2 Tool steel, bearing steel, spring steel and high-speed steel <1400 √ √
P3 P3.1 Tool steel, bearing steel, spring steel and high-speed steel <900 √ √ √
P3.2 Tool steel, bearing steel, spring steel and high-speed steel <1500 √ √
M M1 M1.1 austenitic stainless steel ＜700 √ √
M1.2 Ferritic/austenitic (bicrystal) stainless steel ＜1000 √
M2 M2.1 Austenitic stainless cast steel ＜700 √ √
M3 M3.1 Ferritic/austenitic (bicrystal) stainless cast steel ＜1000 √
K K1 K1.1 Flake graphite cast iron (gray cast iron), GJL ＜300 √ √ √
K2 K2.1 Ductile iron, GJS ＜500 √ √ √
K2.2 Ductile iron, GJS 500-800 √ √ √
K2.3 Ductile iron, GJS ＞800 √ √ √
K3 K3.1 Vermicular graphite cast iron, GJV; Malleable cast iron, GJM ＜500 √ √ √
K3.2 Vermicular graphite cast iron, GJV; Malleable cast iron, GJM ＞500 √ √ √
H H1 H1.1 Hardened steel/cast steel 45-55 √ √ √
H1.2 Hardened steel/cast steel 55-64 √ √ √
H2 H2.1 Wear resistant cast iron/chilled cast iron, GJN √ √

Finish
Vc
(m/min)		 fz(mm/tooth)
Diameter
2 4 6 8 10 12 14 16 18 20
P P1 P1.1 332 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
P1.2 272 0.026 0.046 0.066 0.085 0.103 0.12 0.135 0.15 0.162 0.173
P2 P2.1 304 0.028 0.05 0.07 0.091 0.11 0.128 0.144 0.16 0.173 0.186
P2.2 212 0.023 0.041 0.059 0.076 0.092 0.107 0.121 0.134 0.145 0.155
P3 P3.1 196 0.027 0.047 0.067 0.086 0.104 0.122 0.137 0.152 0.165 0.177
P3.2 168 0.024 0.043 0.061 0.079 0.095 0.111 0.125 0.139 0.150 0.161
P4 P4.1 136 0.019 0.033 0.047 0.06 0.073 0.085 0.096 0.107 0.116 0.124
P5 P5.1 204 0.027 0.048 0.068 0.088 0.106 0.124 0.140 0.155 0.168 0.18
P6 P6.1 136 0.013 0.023 0.033 0.042 0.051 0.06 0.068 0.075 0.081 0.087
M M1 M1.1 92 0.016 0.029 0.041 0.053 0.064 0.075 0.0845 0.094 0.101 0.108
M1.2 84 0.014 0.024 0.034 0.044 0.053 0.062 0.0695 0.077 0.0835 0.09
M2 M2.1 100 0.018 0.031 0.045 0.057 0.07 0.081 0.0915 0.102 0.11 0.118
M3 M3.1 92 0.014 0.025 0.035 0.045 0.055 0.064 0.072 0.08 0.0865 0.093
K K1 K1.1 364 0.047 0.083 0.117 0.151 0.183 0.214 0.2405 0.267 0.149 0.031
K2 K2.1 332 0.04 0.07 0.1 0.128 0.156 0.182 0.2045 0.227 0.245 0.263
K2.2 272 0.033 0.058 0.082 0.106 0.128 0.149 0.168 0.187 0.202 0.217
K2.3 152 0.019 0.033 0.047 0.06 0.073 0.085 0.096 0.107 0.1155 0.124
K3 K3.1 240 0.033 0.058 0.082 0.106 0.128 0.149 0.168 0.187 0.202 0.217
K3.2 228 0.028 0.05 0.07 0.091 0.011 0.128 0.144 0.16 0.173 0.186
H H1 H1.1 92 0.021 0.029 0.038 0.046 0.053 0.06 0.067 0.072 0.077
H1.2
H2 H2.1
Note:
  • If the following carbide end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide end mill according to your needs.
Specification Flute Dia(D) R angle Flute Length (C) Shank Dia(D) Overall Length(L)
Φ3R0.5*8*d3*50L 3 0.5 8 3 50
Φ3R1.0*8*d3*50L 3 1.0 8 3 50
Φ2R0.5*5*d4*50L 2 0.5 5 2 50
Φ3R0.5*8*d4*50L 3 0.5 8 3 50
Φ4R0.5*10*d4*50L 4 0.5 10 4 50
Φ3R1.0*8*d4*50L 3 1.0 8 3 50
Φ4R1.0*10*d4*50L 4 1.0 10 4 50
Φ5R0.5*13*d5*50L 5 0.5 13 5 50
Φ5R1.0*25*d5*100L 5 1.0 25 5 100
Φ6R0.5*15*d6*50L 6 0.5 15 6 50
Φ8R0.5*20*d8*60L 8 0.5 20 8 60
Φ8R1.0*28*d8*75L 8 1.0 28 8 75
Φ8R2.0*20*d8*60L 8 2.0 20 8 60
Φ8R3.0*20*d8*60L 8 3.0 20 8 60
Φ10R0.5*25*d10*75L 10 0.5 25 10 75
Φ10R1.0*25*d10*75L 10 1.0 25 10 75
Φ10R1.5*25*d10*75L 10 1.5 25 10 75
Φ10R2.0*25*d10*75L 10 2.0 25 10 75
Φ10R3.0*25*d10*75L 10 3.0 25 10 75

Instructions:

1. Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.

2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.

3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.

4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.

5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.

Applications:

Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.

HRC65 Solid Carbided Corner Radius End Mills R6 4 Flutes Tungsten Milling Cutter

FAQ

Q1: The surface of the workpiece is glossy, but the concavity and convexity are large

resolvent:

(1) Reduce the feed.

(2) The low number of cutting edges changes the high number of cutting edges to improve the surface fineness.

Q2: The chip is short and thin, but there are sticky chips

resolvent:

(1) Increase cutting speed.

(2) Change to wet type (using cutting fluid), and use it with vortex tube gun to reduce the tool temperature and avoid overheating.

(3) Perform minor rounding and passivation treatment.

(4) Change from up milling to down milling.

(5) Increase the feed rate or the cutting allowance.

Q3: There are transverse cuts

resolvent:

(1) Perform minor rounding and passivation treatment.

(2) Use water-insoluble cutting fluid.

(3) Change from forward milling to reverse milling.

Q4:The finishing size is too small

resolvent:

(1) Change from up milling to down milling.

(2) Reduce the cutting allowance.

(3) Replace the chuck or spring collet.

(4) Reduce the cutting depth of the end mill.

(5) Increase cutting speed.
