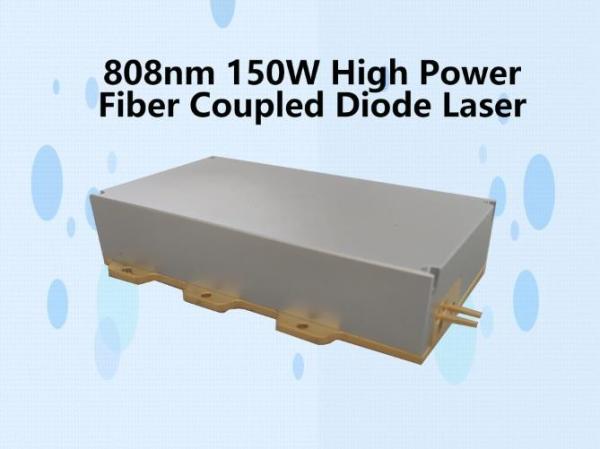

Multi-single Emitter 808nm 150W High Power Fiber Coupled Diode Laser
Multi-single Emitter 808nm 150W High Power Fiber Coupled Diode Laser
Specifications
Place of Origin :
China
Brand Name :
BWT
Certification :
ISO9001
Model Number :
K808DN2RN-150.0W
MOQ :
1 Piece/Pieces
Delivery Time :
3-6weeks
Payment Terms :
T/T
Supply Ability :
100,000/year
Product Name :
diode laser module
Output Power :
150W
Wavelength :
808nm
Fiber bundle diameter :
400µm
Numerical aperture :
Medical use,Material processing
Description

Features:

150W output power

808nm wavelength

400μm/0.22NA fiber

Applications:

Solid-state laser pumping 

Medical use 

Material processing

Specifications(25℃) Symbol Unit K808DN2RN-150.0W
Minimum Typical Maximum

Optical Data

 CW-Output Power Po W 150 - -
Center Wavelength λc nm 805 - 811
Threshold current Ith A - 1.8
Operating current Iop A - - 11
Operating voltage Vop V - - 40
Reverse Voltage Vre V - 50 -
Slope Efficiency η W/A - 20 -
Electrical-to-Optical Efficiency PE % - 42 -
Spectral width(FWHM) δλ nm - 5 -
Back reflection wavelength Range λ nm 1040 - 1200
Back reflection isolation - dB - 30 -
Wavelength Shift with Temperature △​λ/△T nm/℃ - 0.3 -
Wavelength Shift with Current △λ/△A nm/A - 1 -
Fiber Data Core diameter Dcore µm 400
Cladding diameter Dclad um - 440 -
Buffer diameter Dbuf µm - 730 -
Numerical Aperture N.A - - 0.22 -
Fiber length lc m 1.9 2 2.1
Fiber jacket - - 1.5mmPVC
Fiber Bend Radius - mm - 140 -
Thermistor Wavelength Range Rt (K Ω)/β(25℃) - 10±3%/3477 -
Others ESD Vesd V - 500
Storage Temperature Tstg ℃ -20 - 70
Lead Soldering Temp Tls ℃ - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top ℃ 15 - 35
Relative Humidity RH % 15 - 75
