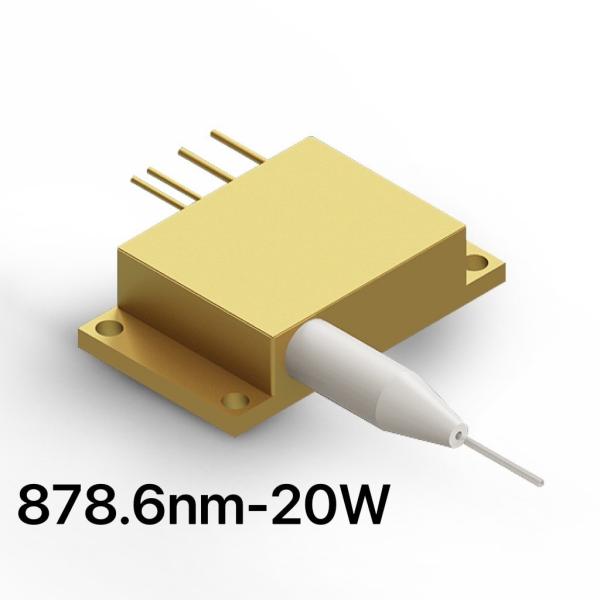

878.6 Nm Output Power 20w Diode Laser For Solid State Laser Pumping Series
878.6 Nm Output Power 20w Diode Laser For Solid State Laser Pumping Series
Specifications
Place of Origin :
China
Brand Name :
BWT
Certification :
ISO9001
Model Number :
K878BAHRN-20.00W
MOQ :
1 Piece/Pieces
Delivery Time :
4-8weeks
Payment Terms :
T/T
Supply Ability :
100,000/year
Power :
20W
Wavelength :
878.6nm
Fiber core diameter :
200µm
Optical fiber numerical aperture :
0.22NA
type :
Fiber Coupled Diode Laser
Feedback protection :
1020-1200nm
Description

Key Features:

Wavelength:878.6nm

Output power:20W

Fiber core diameter:200μm

Optical fiber numerical aperture:0.22 NA

Feedback protection:1020nm~1200nm

Specifications(25℃)

Symbol

Unit

 K878BAHRN-20.00W
Minimum Typical Maximum
Optical Data CW-Output Power Po W 20 - -
Center Wavelength λc nm 878.6±1
Spectral Width (FWHM) △λ nm - 0.5 -
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.03 -
NA Filling(95% of Power) - NA - 0.17 -
Electrical Data Electrical-to-Optical Efficiency PE % 47 -
Threshold current lth A - 1.5 -
Operating current lop A - 12.5 14.0
Operating voltage Vop V - - 4
Slope Efficiency η W/A - 1.8 -

Fiber Data

 Core diameter Dcore μm - 200 -
Cladding Diameter Ddad μm - 220 -
Numeric aperture NA - - 0.22 -
Fiber Length Lf m - 1.5 -
Fiber Loose Tubing Diameter - mm - 3.0
Minimum Bending Radius - mm 88 - -
Fiber Termination - - SMA905
Feedback lsolation Wavelength - nm 1020-1200
lsolation - dB 30
Others ESD Vesd V - - 500
Storage temperature Tst ℃ -20 - 70
Lead Soldering Temp Tls ℃ - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top ℃ 20 - 30
Relative Humidity RH % 15 - 75
