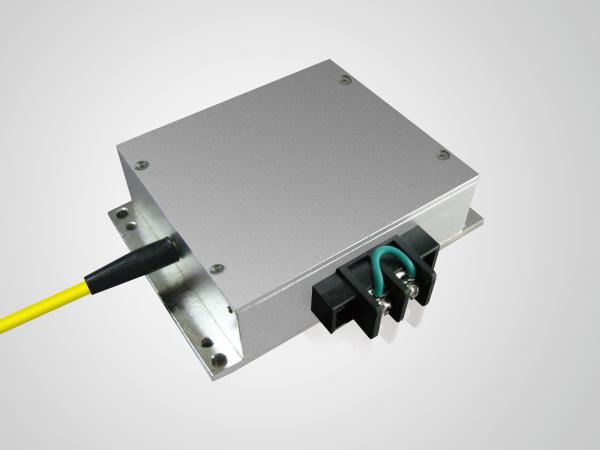

Medical Semiconductor Fiber Coupled Diode Laser 808nm 15 Watt 375μm 0.22NA
Medical Semiconductor Fiber Coupled Diode Laser 808nm 15 Watt 375μm 0.22NA
Specifications
Place of Origin :
China
Brand Name :
BWT
Certification :
ISO9001
Model Number :
K808F02MN-15.00W
MOQ :
1 Piece/Pieces
Delivery Time :
4-8weeks
Payment Terms :
T/T
Supply Ability :
100,000/year
Description

Features:

  • wavelength 808nm
  • output power 15W
  • 375µm fiber bundle diameter
  • 0.22N.A.


Applications:

  • Laser pumping
  • Illumination
  • Medical use
  • Material processing
Specifications(25℃) Symbol Unit K808F02MN-15.00W
Minimum Typical Maximum

Parameter

 CW-Output Power Po W 15 - -
Center Wavelength λc nm 789 808 818
Threshold current Ith A - 0.8
Operating current Iop A - 3.0 -
Operating voltage Vop V - - 14
Reverse Voltage Vre V - - 17.5
Slope Efficiency η W/A - 6.6 -
Electrical-to-Optical Efficiency PE % - 40 -
Spectral width(FWHM) δλ nm - 5 -
Wavelength Shift with Temperature △​λ/△T nm/℃ - 0.3 -
Fiber Data Core diameter Dcore µm - 375 -
Numerical Aperture N.A NA - 0.22 -
Fiber length lc m - 1.0 -
Others ESD Vesd V 500 -
Storage Temperature Tstg ℃ -20 - 70
Lead Soldering Temp Tls ℃ - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top ℃ 15 - 35
Relative Humidity RH % 15 - 75
