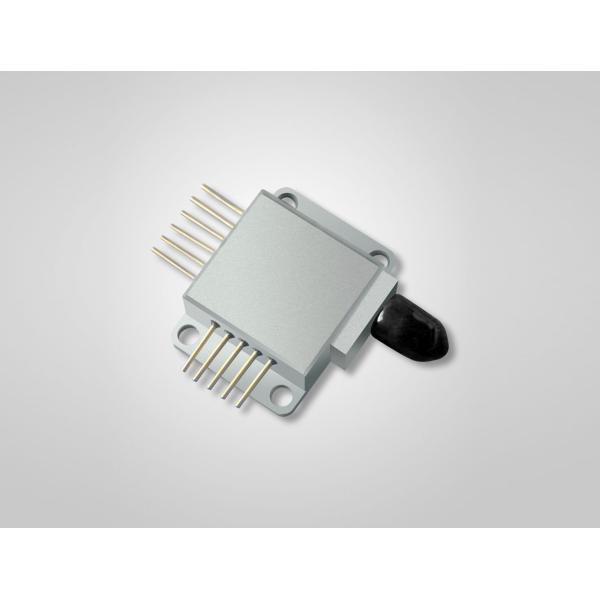

0.22N.A.15W Detachable 808nm Diode Laser Module , high power laser diode module
0.22N.A.15W Detachable 808nm Diode Laser Module , high power laser diode module
Specifications
Place of Origin :
China
Brand Name :
BWT
Model Number :
K808DAHFN-15.00W
Certification :
ISO9001
MOQ :
1 Piece/Pieces
Delivery Time :
4-8weeks
Payment Terms :
T/T
Supply Ability :
100,000/year
Product Name :
diode laser module
Output Power :
15W
Wavelength :
808nm
Fiber bundle diameter :
375µm
Numerical aperture :
0.22N.A
Application :
Solid-state laser pumping
Description

Features:

  • wavelength 808nm
  • output power 15W
  • 400µm fiber bundle diameter
  • 0.22N.A.


Applications:

  • Laser pumping
  • Illumination
  • Medical use
  • Material processing
Specifications(25℃) Symbol Unit K808F02MN-15.00W
Minimum Typical Maximum

Parameter

 CW-Output Power Po W 15 - -
Center Wavelength λc nm 808±10
Spectral width(FWHM) △​λ nm - 6 -
Wavelength Shift with Temperature △​λ/△T nm/℃ - 0.3 -
Wavelength Shift with Current △​λ/△A nm/A - 1 -
Threshold current Ith A - 0.8
Operating current Iop A - - 5
Operating voltage Vop V - - 10
Slope Efficiency η W/A - 4.0 -
Electrical-to-Optical Efficiency PE % - 40 -
Fiber Data Core diameter Dcore µm - 400 -
Cladding Diameter Dclad µm - 440 -
Numerical Aperture N.A - - 0.22 -
Fiber length lf m - 1.0 -
Fiber Loose Tubing Diameter mm 3mm Stainless steel
Minimum Bending Radius - mm 180 - -
Fiber termination - - - SMA905 -
Others ESD Vesd V - 500
Storage Temperature Tstg ℃ -20 - 70
Lead Soldering Temp Tls ℃ - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top ℃ 15 - 35
Relative Humidity RH % 15 - 75
