OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722
OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722
OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722
OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722
OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722
OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722
OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722
OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722
Specifications
Brand Name :
BYF
Model Number :
Type 2430DP
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, , Cash
Supply Ability :
10000 Piece/Pieces Per Month
Delivery Time :
15 Days
Packaging Details :
By The Requirement Of Customer
Brake Chamber Type :
3030DDL
OEM NO :
9254911430/1519444/505821722
Material :
Aluminum Alloy
Weight :
10.6 KG
Stroke :
64mm
Air Inlet Thread :
M16×1.5
Bolt Center :
120.7±0.3mm
Bolt Thread :
5/8
Connect Fork Pin Diameter :
12.5mm
Loading Port :
Ningbo Port Or As Requested
Color :
Black Or Yellow
Model :
BC-100
Diaphragm Type :
Single
Operating Temperature :
-40°C to 80°C
Bolt Centre :
M48*2
Spring Portion Diameter :
176mm
Size :
Standard Size
Warranty :
1 Year
Byf No :
K028253
Port Angle :
90 Degrees
Sealing Material :
Nitrile Rubber
Certifications :
DOT, SAE, FMVSS
Description

Spring Brake Chamber Type 2430 DP | OEM 9254911430 | DAF-1519444 | KRONE-505821722 | For Axles With Drum Brakes

OEM QUALITY BRAKE CHAMBER T2430

Type 2430 Brake Chamber. 64mm stroke. For port and bolt thread, both inch and metric are optional.

Working Pressure 800KPa
Maximum Working Pressure 1MPa
Pushrod Stroke 0 - 64mm
Ambient Temperature - 40 ~ +80°C
Surface Finish 100hrs clear or yellow zinc plated, black powder coating
Service Time ≥1,000,000 times
Life-time For Parking Chamber ≥200,000 times

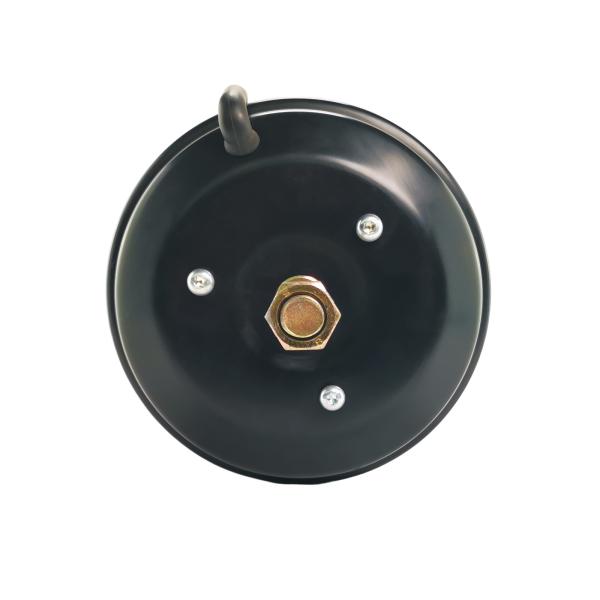

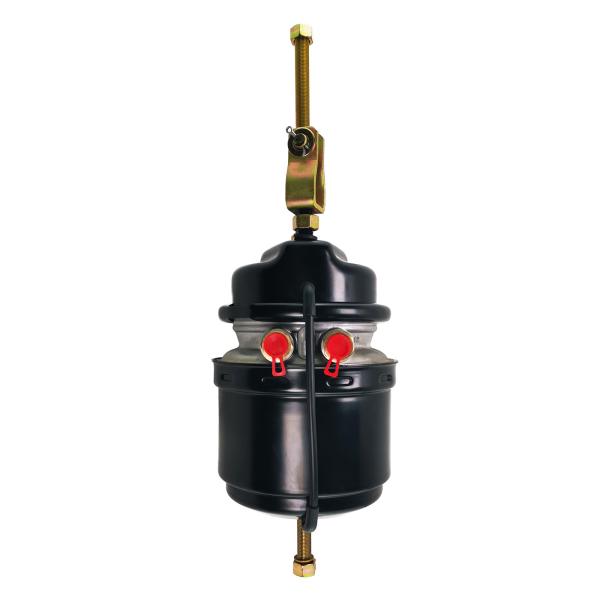

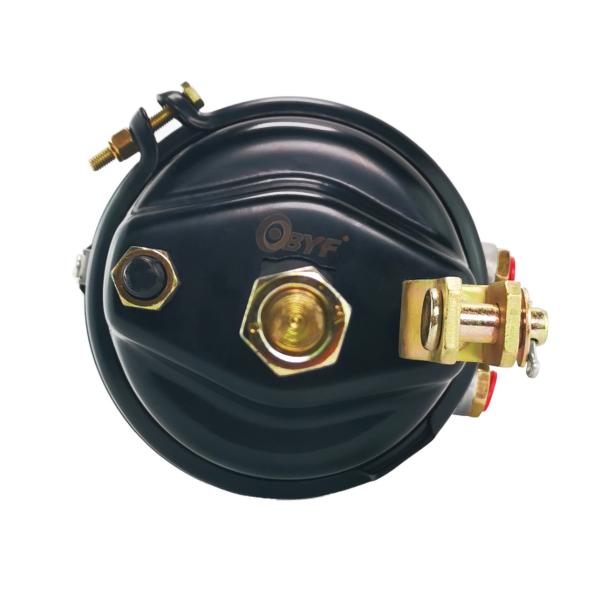

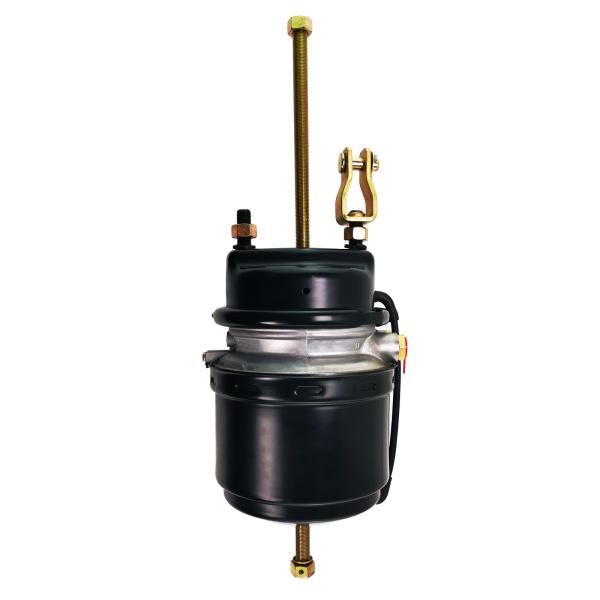

Product Details

OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722 OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722

OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722 OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722

Drawing Details

OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722

Other Models For Your Choice

T3030DD-L(SEALED) 　 T2424DCP
T2430DD-L(SEALED) 　 T2024DCP
T3030DD(SEALED) 　 T1624DCP
T2430DD(SEALED) 　 T30
T3030DD 　 T24
T2430DD 　 T20
T2424DD 　 T16
T2024DD 　 T12
T1624DD 　 T9
T3030DP 　 T30-L
T2430DP 　 T24-L
T3024DP 　 T20-L
T2424DP 　 T30-DISC
T2024DP 　 T24-DISC
T1624DP 　 T20-DISC
T2430DP-DISC 　 T16-DISC
T2424DP-DISC 　 T9/6200
T2024DP-DISC 　 T12/6200
T1624DP-DISC 　 T12/1200


Packing & Delivery

1. Brake chamber 2pcs/carton, 1x20GP: 1800pcs

2. Neutral packing, brand packing, corrugated box

3. Or as your request packing brake chamber

OEM 9254911430 Brake Chamber for DAF-1519444 and KRONE-505821722

Fatigue Testing

Excellent Pre-sale Service

1. According to your specification request, provide the best price for you.

2. After you confirmed the specification and price, our engineers will draw a Official Drawing for you confirm.

3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start manufacture the products for you.

4. Update the progress of production to you in time, to help you know your order details progress.

5. After the product manufacture finished, if you need, we will arrange shipping for you.

With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
