Warehouse 1000W DC Powered Air Conditioner Compressor Motor General
Warehouse 1000W DC Powered Air Conditioner Compressor Motor General
Warehouse 1000W DC Powered Air Conditioner Compressor Motor General
Warehouse 1000W DC Powered Air Conditioner Compressor Motor General
Warehouse 1000W DC Powered Air Conditioner Compressor Motor General
Warehouse 1000W DC Powered Air Conditioner Compressor Motor General
Warehouse 1000W DC Powered Air Conditioner Compressor Motor General
Warehouse 1000W DC Powered Air Conditioner Compressor Motor General
Specifications
Brand Name :
CYNRIN
Model Number :
CCA040ED
Certification :
CE,EMC,RoHS,CCC
Place of Origin :
CHINA
MOQ :
1 sets
Price :
USD799~3999 unit
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability :
100000 sets per year
Delivery Time :
7 work days after payment
Packaging Details :
Wooden case package.
Product Name :
48V DC power 1000W air conditioner
Cooling Capacity :
1000W
Operation voltage :
48DC
Mounting: :
Wall / Window Mount
IP :
IP55
Warning output :
Dry Contact
Conditioner :
New
Weight :
15.5KG
Refrigerant :
R134a
Application :
Warehouse Air Conditioning
Working enviroment :
-40 °C To +55 °C
Cooling/Heating :
Cooling /Heating
Power Source :
wind / battery power supply
Description

Warehouse Air Cooling 1000W Dc Inverter Compressor Motor General Air Conditioner

Product Characteristic


The DC Cabinet Air Conditioner is a high-efficiency, purely DC-powered split air conditioner for Telecom networks. The solution eliminates the need for an inverter and has capabilities far beyond those of conventional comfort cooling systems.Which supply is 48VDC, mainly used for industry field cabient climate control. using environmental friendly refrigerant R134A, close loop cooling protects equipment from ambient environment, with adjustable indoor temperature set point from 20-40 degree ventiation not recommend any more since the system highest efficiency. Adaptable for T3 condition which up to 55 degree tropic area.

It effectively solves heat problem of outdoor battery compartment, wind energy outdoor cabinet and solar outdoor cabinet.

Product Features

1. Energy Conservation and Environment Protection

1.1 International brand's high energy efficiency compressor

1.2 International brand's low-power centrifugal fan

1.3 Environmentally friendly CFC-free refrigerant R134a.

1.4 High energy efficiency ratio (EER) design

1.5 High volume of wind, small enthalpy variance, high sensible heat ratio design

Technology Parameter of the Warehouse Air Condtioner

Brand Name
 Cynrin
Model number
 CCA010ED
Product name
1000W DC Cabinet Air Conditioner
Product Type
DC Air Conditioner
Power supply
48VDC
Cooling capacity(W)
1000
Heating capacity(W)
1000
Power consumption(W)
105
Range of working temperature(℃)
-40 ~+55
Running current (A)
Cooling : 2.2
Heating :7.0
Starting current (A)
Soft start-up
Dimension (mm)
472*175*782mm
Refrigerant type
R134a
IP level
IP 55
Noise level (dB)
60
Weight (Kg)
8.5
Installation
Door mounted (Hang)
Certification
CE
Color
Electrostatic coating (RAL7035)
Ambient set temperature (℃)
20～40
Temperature control mode
Digital display thermostat
Power supply connection
Three-core conductor (2~5m long)

Slipt Air Conditioner Advantage

  • Site uptime in weak power networks . The DC Split Air Conditioner is designed for energy-efficient cooling of Telecom sites dependent on running non-stop under any ambient conditions. The unit is built to run on battery backup and thus ensures site uptime, even during power outage and intermittent power.

  • Efficient cooling for hybrid sites. The unit runs purely on DC power and a low voltage disconnect feature prolongs battery life in case of low voltage from batteries. The Dantherm DC Split Air Conditioners are therefore highly suitable for sites with battery backup power and hybrid sites powered by renewable energy sources.

  • Energy-efficient DC cooling.Because the Cynrin DC Air Conditioners are capacity regulated, they only provide the exact amount of cooling needed. This means that they are much more efficient in use than traditional air conditioners, inverter-based DC air conditioners and even traditional DC air and even traditional DC air conditioners without inverters.

Specifications

Cooling Capacity(L35/L35) Product Model Mounting Method Dimension(W*D*H)mm Dimension(W*D*H)mm Without flange IP Noise (dB A) Certification
300W CCA003ED Side- Embedded 181*200*400 181*200*400 55 60 CE,CCC
300W CCA003SD Side 240*150*400 240*150*400
500W CCA005ED Side-Embedded 352*175*583 315*175*546 55 65 CE,CCC
600w CCA006ED Side-Embedded 352*175*583 315*175*546
800W CCA008ED Side-Embedded 482*175*782 445*175*745 55 65 CE
1000W CCA010ED Side-Embedded 482*175*782 445*175*745 55 65 CE
1500W CCA015ED Side-Embedded 482*200*782 445*200*745 55 65 CE
2000W CCA020ED Side-Embedded 482*200*782 445*200*745 55 65 CE
2500W CCA025ED Side-Embedded 536*225*1201 485*225*1150 55 65 CE
3000W CCA030ED Side-Embedded 536*225*1201 485*225*1150 55 65 CE
3500W CCA035ED Side-Embedded 550*300*1350 500*300*1300 55 65 CE
4000W CCA040ED Side-Embedded 550*300*1350 500*300*1300 55 65 CE

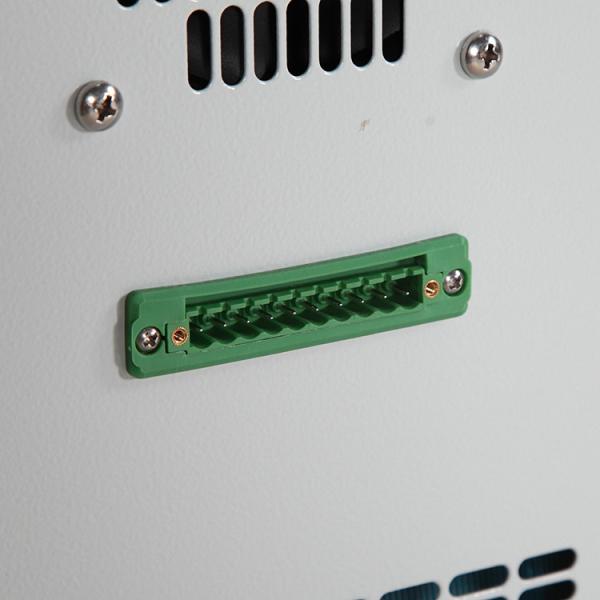

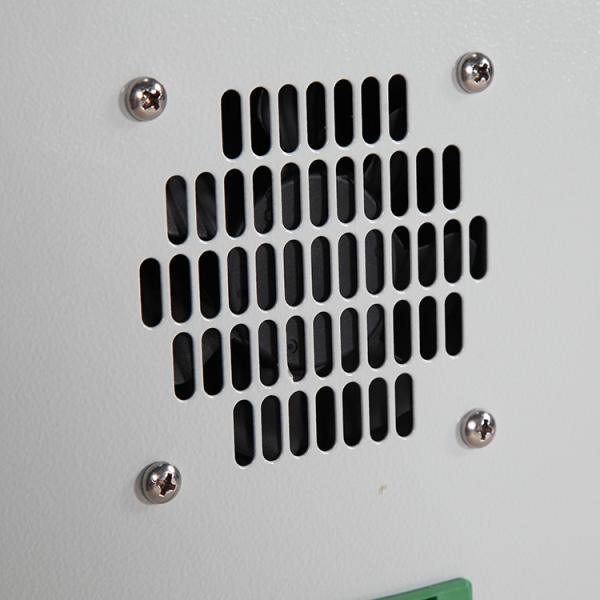

AC air conditioner details show




Warehouse 1000W DC Powered Air Conditioner Compressor Motor General



Warehouse 1000W DC Powered Air Conditioner Compressor Motor General




Application


● Indoor and Outdoor Hybrid Base station
● Indoor and Outdoor Battery Cabinet
● Wireless Indoor and Outdoor Cabinet

Warehouse 1000W DC Powered Air Conditioner Compressor Motor General

Package Informations

Using high quality waterproof wooden box to pack the air conditioner first, then using melaleuca kraft packing, final using thick laminates.

Package
Single and Mult
Packing material
Carton and ply-wooden pallet
Single packing information
Net weight: 15.5Kg
Gross Weight: 17.5Kg
Size: L436*D237*H665mm
Multi packing information
Packing quantity: 10pcs
Net weight: 155Kg
Gross Weight: 187Kg
Size: L1200*W1100*H785mm
