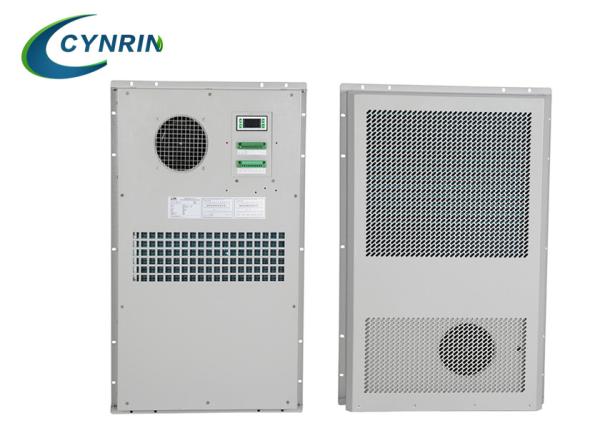

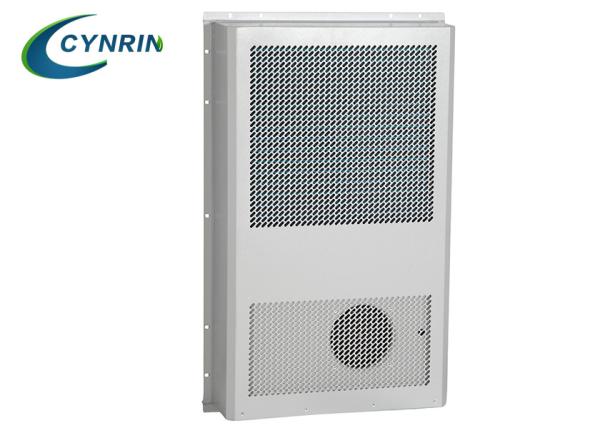

Cabinet Type Control Electric Panel Industrial Air Conditioner for Industrial Cabinets Cooling

Product Characteristic

Cabinet air conditioner is different from the traditional commercial and household air conditioning. With extremely high SEER, moisture condensation active control and other cut-edge technologies, it protects power and electronic equipment by providing precise temperature and humidity control. Since the product design and installation are originated from household air conditioners, it can be widely deployed in telecommunication outdoor base stations, power state outdoor cabinet, outdoor LED screen, where require the temperature level below than 35 degree situation. Cynrin provides the DC and AC power input type products according different power input. Air condition with DC power input type use BLDC motor and PWM driven technology, the product COP will >=4.0. At seasonal conditions, the COP value will be higher by 15% than heat exchangers, by 25% than aircon-HEX combine units and by 60% than normal air conditioners.

Main Features

• Using enviroment friendly refrigerant R134A
• Integraded modular design, flexible installation,you can adjust the position of the flange for convenient through-wall mounting.
• Closed loop cooling protects equipment from ambient enviroment, with adjust indoor temperature set point from 20-40 degree, ventilation not recommendaed any more since he systme highest efficientcy.
• suitable for high temperature of 55 degree C T3 work condition.

Specifications

AC air conditioner details show

Dimension Diagram:

• Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function.
• Strict process control and famous brand components to ensure high quality and reliability of this product
• Fit for harsh condition (T3),R134 a refrigerant
• Multiple self-protection design, RS485 communication port (MODBUS-RTU protocol)

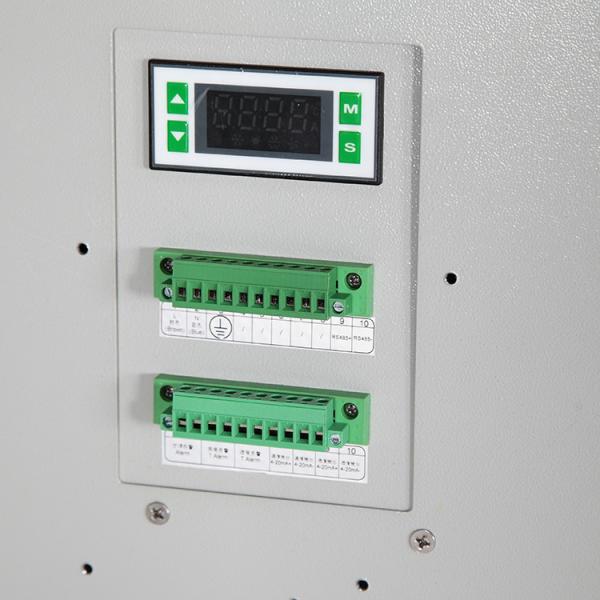

• LED display, all the setting can charge at the field.
• The heating function is optional
• Dry contact alarm output, NO/NC optional
• Anti-theft design, without the protection cover.

Installation Diagram

Application

This Electric Panel Cabinet air conditioner can be widely used in enclosed area for climate control,such as telecom cabinet,battery cabinet,industry control cabinet etc.

● Indoor and Outdoor Hybrid Base station
● Indoor and Outdoor Battery Cabinet
● Wireless Indoor and Outdoor Cabinet

Packaging & Delivery

FAQ

1. Q: How about the air cooler material?

A: It makes by 100% new plastic, pure copper for motor.

2. Q: What voltages you can do, could you make special voltages?

A: we can make DC48 and all AC voltage products for you.

3. Q: I want to use our own brand, is it OK?

A: It is possible, we supply the OEM products too.

4. Q: How about the warranty?

A: All the unit warranty is one year.
