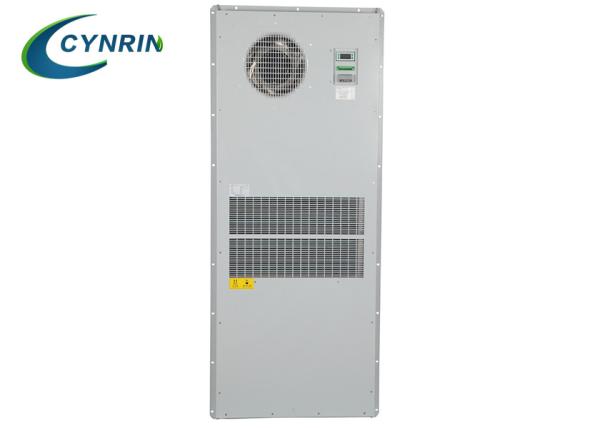

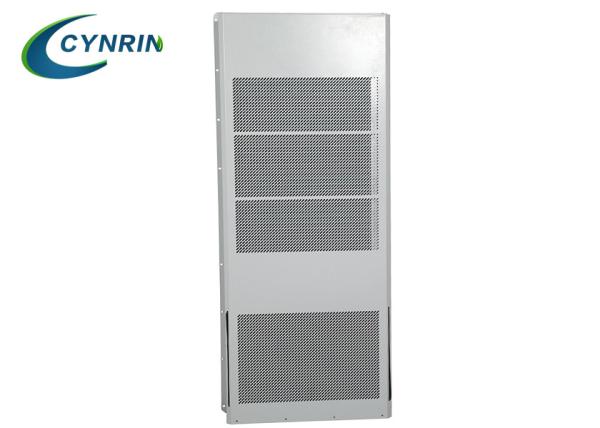

3000W Outdoor Air Conditioner with Environment Monitoring System for Telecom Base Station

Product Characteristic

1. Cabinet Material

The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type.

2. Cabinet Structure

The cabinet is equipment cabinet, including 19” equipment installation rack, with air conditioner on cabinet door.

3. Cabinet Door and Lock

The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.

4. Features

4.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

4.2 The cabinet cooling uses air conditioner.

4.3 Including -48VDC illumination lamp.

4.4 The cabinet includes power and environment monitoring unit, which can send power failure alarm, door open alarm, temperature and humidity alarm, smoke alarm, water alarm etc.

4.5 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.

4.6 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.

4.7 The cabinet includes 19” standard installation rack.

5. Technical Specs

• Applicable environment conditions:

Operating temperature: -40°C ~ + 45°C

Storage temperature: -25°C ~ + 55°C

Transport temperature: -40°C ~ + 70°C

Relative humidity (RH): 5%~99%

Air pressure: 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude)

• Material: good quality galvanized steel
• Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
• Cabinet load bearing: ≥600kg
• Ingress protection: IP65
• Flame retardance: comply with GB5169.7 test A
• Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
• Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
• Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.

Mass Production Model

Specification

1 . Technical Parameters

2. Accessories List

Product details

• Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function.
• Strict process control and famous brand components to ensure high quality and reliability of this product
• Fit for harsh condition (T3),R134 a refrigerant
• Multiple self-protection design, RS485 communication port (MODBUS-RTU protocol)
• LED display, all the setting can charge at the field.
• The heating function is optional
• Dry contact alarm output, NO/NC optional
• Anti-theft design, without the protection cover.

Installation Diagram

Application

The Outdoor Telecom Cabinet is mainly used in communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

Package and Shipping

FAQ

1. Q: How about the air cooler material?

A: It makes by 100% new plastic, pure copper for motor.

2. Q: What voltages you can do, could you make special voltages?

A: we can make DC48 and all AC voltage products for you.

3. Q: I want to use our own brand, is it OK?

A: It is possible, we supply the OEM products too.

4. Q: How about the warranty?

A: All the unit warranty is one year.
