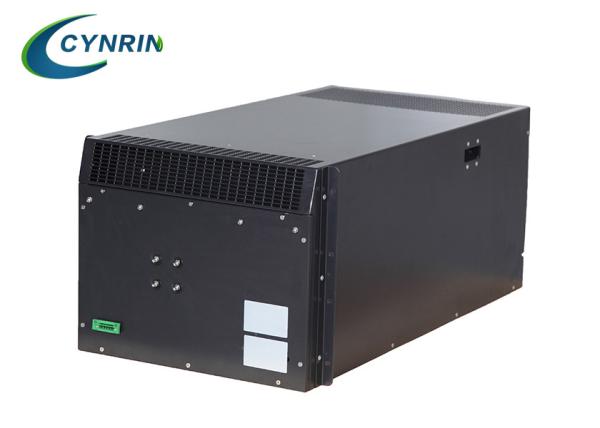

Server Room Outside Electrical Cabinet , Control Panel Cooling 10000BTU 1.2 HP AC 3 Phase
Server Room Outside Electrical Cabinet , Control Panel Cooling 10000BTU 1.2 HP AC 3 Phase
Specifications
Brand Name :
CYNRIN
Model Number :
CSA035RA
Certification :
CE
Place of Origin :
CHINA
MOQ :
50 sets
Price :
USD1499.00~3999.00 unit
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability :
80000 sets per year
Delivery Time :
7 work days after payment
Packaging Details :
Wooden case package.
Productor name :
Cabinet Air conditioner for data center
Cooling Capacity :
3500W
Operation voltage :
220V
Mounting: :
Side/ Embedded
IP :
IP55
Warning output :
Dry Contact
Conditioner :
New
Original Place :
China
Refrigerant :
R134a
Application :
Modular data center ,Container data center
Working enviroment :
-40 °C To +55 °C
Description

Server room Cabinet Air Conditioner 3000W 10000BTU 1.2 HP AC precision 3 phase air conditioner


Product Characteristic


The In-Rack split type air conditioner power supply is 220VAC, focus on mini-ICT room heat management, which widely used for small scade IT equipment cooling for middle size of enterprises etc.


Proudct Advantage

1. Dynamic refrigeration, adapt to the rapid change of machine room load.
2. Wth EC fan The air volume is adjusted automatically according the machine rooms power load.
3. Multiple external temperature and humidity sensors can be selected, adjust the refrigerating output in real time according to the actual heating of the server.
4. Cooling unit to be part of rack with compact design to realize on-shot cooling, no cooling energy been wasted, eventurally to realize highest effifiency operation.
5. Cooling unit can be fabricated and installed in RACK manufactures, to minimize work load at size installation.
6.Visualization digital display interface, key parameters can be adjusted on field.
7. Capacity base inner temp, and oputer temp.35℃-45%RH
8.Products applicable temperature range:-15℃-50℃

Application

  • Government enterprises and institutions branches
  • Branches of Bank
  • SMEs
  • Information base in industrial production
  • Network access, data distribution, data storage

Specifications


Product TypeRACK-EMBEDDED COOLING
Model No.CSA025RA
Extemal Dimensions(W*D*H)483*840*355mm
Extemal Dimensions(W*D*H) without flange440*840*355mm
Weight42Kg
Working Temperature range-15 ℃ to +55 ℃
Noise Level65dB(A)
RefrigerantR134a
Cooling Capacity @ L35/L352500W
Heating Capacity-
Rated power @ L35/L35200W
Rated Voltage220AC+-15% 50/60Hz
Interal Airflow800m3/h
IP gradeIP 55

ModelMounting methodInput voltageDimensions (Without flange)mm

Cooling capacity
(L35/L35).W

Certification
LSA035FASplitAC 220V

220*440*580mm
810*580*280mm

3500CE,CCC
LSA035LA/365*440*940mm3500CE,CCC
LSA050FASplit

indoor:2000*300*850mm
outdoor:810*580*280mm

5000CE
LSA080FASplit

indoor:2000*300*850mm
outdoor:810*580*280mm

8000CE

In-Rack Split type air conditioner details show

Server Room Outside Electrical Cabinet , Control Panel Cooling 10000BTU 1.2 HP AC 3 Phase


Server Room Outside Electrical Cabinet , Control Panel Cooling 10000BTU 1.2 HP AC 3 Phase


Server Room Outside Electrical Cabinet , Control Panel Cooling 10000BTU 1.2 HP AC 3 Phase

Server Room Outside Electrical Cabinet , Control Panel Cooling 10000BTU 1.2 HP AC 3 Phase
