50Hz Compressed Air Cabinet Cooler , Outdoor Cabinet Air Conditioner 1000-2000 BTU/H
50Hz Compressed Air Cabinet Cooler , Outdoor Cabinet Air Conditioner 1000-2000 BTU/H
Specifications
Brand Name :
CYNRIN
Model Number :
CCA020EA
Certification :
CE,RoHS,CCC
Place of Origin :
CHINA
MOQ :
1 sets
Price :
USD299~3999 unit
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability :
10000 sets per Month
Delivery Time :
14 work days after payment
Packaging Details :
Wooden case package.
Product Name :
Compact Series Enclosure Air Conditioners
Cooling Capacity :
2000W
Operation voltage :
220VAC
Mounting :
Side/ Panel Mountable
IP :
IP55
Warning output :
Dry Contact
Conditioner :
New
Dimension :
482*200*782mm
Refrigerant :
R134a
Application :
Industry，Control cabinet
Working enviroment :
-40 °C To +55 °C
Cooling/Heating :
Cooling /Heating
Noise :
65dB(A)
Description

50 Hz Compact Series Enclosure Air Conditioners ,1,000-2,000 BTU/H ,Indoor/Outdoor Use 12, 4 & 4X Available

Product Characteristic

Engineered & manufactured to endure the most difficult of environments and applications. Cynrin air conditioners will exceed environmental requirements in applications like Steel, Food Processing, Petro-Chemical, Cement, Paper & Pulp and Plastics.

Main Features

Small, but powerful, air conditioners still feature the same valuable features as the larger models.

  • Designed with all DC driven components like fans, compressor;
  • Precise temperature control through inverter digital regulation of compressor, fans;
  • Power supply voltage range: DC44~59 V;
  • A comprehensive sell-protection design to realize partial load starting, partial load operation at severe ambient condition;
  • Low power consumption design with EER≥3.5, SEER≥ 5.5;
  • Energy saving reach to 50% comparing with A.C. version product;
  • IP55 environment protection & fit for T3 high temperature working condition by using of R134a refrigerant gas;
  • The best cooling solution for solar, wind, disel generator etc,hybrid power system;
  • Strict process control and international brand parts deployed to ensure high quality and reliable of this product;
  • Multiple self protection design;

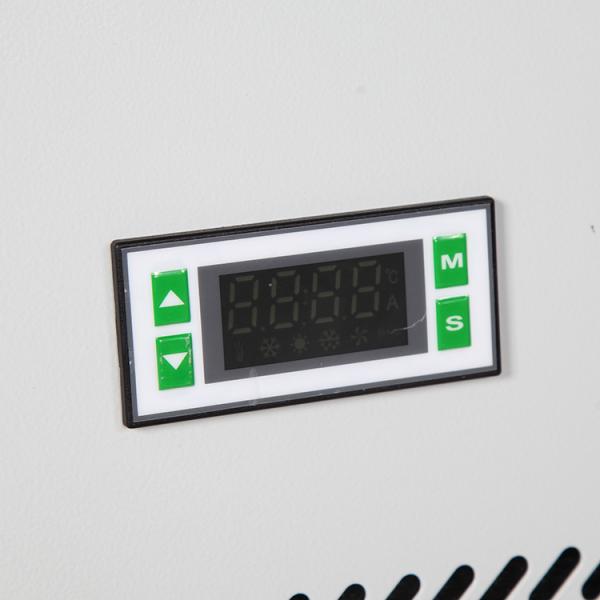

  • LED Display, all the settings can be changed at the field;
  • Dry contact alarm output,NO/NC optional;
  • Equipped with communication interface:RS485.

Specifications

Cooling Capacity(L35/L35) Product Model Mounting Method Dimension(W*D*H)mm Dimension(W*D*H)mm Without flange IP Noise (dB A) Certification
300W CCA003EA Side- Embedded 352*175*583 315*175*546 55 60 CE,CCC
400W CCA004EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
500W CCA005EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
600W CCA006EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
800W CCA008EA Side-Embedded 482*175*782 445*175*745 55 65 CE,CCC
1000W CCA010EA Side-Embedded 482*175*782 445*175*745 55 65 CE,CCC
1300W CCA013EA Side-Embedded 482*200*782 445*200*745 55 65 CE,CCC
1500W CCA015EA Side-Embedded 482*200*782 445*200*745 55 65 CE,CCC
2000W CCA020EA Side-Embedded 482*200*782 445*200*745 55 65 CE,CCC
2300W CCA023EA Side-Embedded 482*200*782 445*200*745 55 65 CE,CCC
2500W CCA025EA Side-Embedded 536*225*1201 485*225*1150 55 65 CE,CCC
3000W CCA030EA Side-Embedded 536*225*1201 485*225*1150 55 65 CE,CCC
3500W CCA035EA Side-Embedded 550*300*1350 500*300*1300 55 65 CE,CCC
4000W CCA040EA Side-Embedded 550*300*1350 500*300*1300 55 65 CE,CCC
5000W CCA050EA Side-Embedded 650*300*1350 650*300*1300 55 65 CE,CCC
7500W CCA075EA Side-Embedded 711*350*1660 650*350*1600 55 65 CE,CCC

Compact Series Enclosure Air Conditioners details show




50Hz Compressed Air Cabinet Cooler , Outdoor Cabinet Air Conditioner 1000-2000 BTU/H



50Hz Compressed Air Cabinet Cooler , Outdoor Cabinet Air Conditioner 1000-2000 BTU/H

Application:

This Compact Series Enclosure Air Conditioners can be widely used in enclosed area for climate control,such as telecom cabinet,battery cabinet,industry control cabinet etc.


● Indoor and Outdoor Hybrid Base station
● Indoor and Outdoor Battery Cabinet
● Wireless Indoor and Outdoor Cabinet

50Hz Compressed Air Cabinet Cooler , Outdoor Cabinet Air Conditioner 1000-2000 BTU/H

Packaging & Delivery

50Hz Compressed Air Cabinet Cooler , Outdoor Cabinet Air Conditioner 1000-2000 BTU/H

FAQ

1. Q: How about the air cooler material?

A: It makes by 100% new plastic, pure copper for motor.

2. Q: What voltages you can do, could you make special voltages?

A: we can make DC48 and all AC voltage products for you.

3. Q: I want to use our own brand, is it OK?

A: It is possible, we supply the OEM products too.

4. Q: How about the warranty?

A: All the unit warranty is one year.
