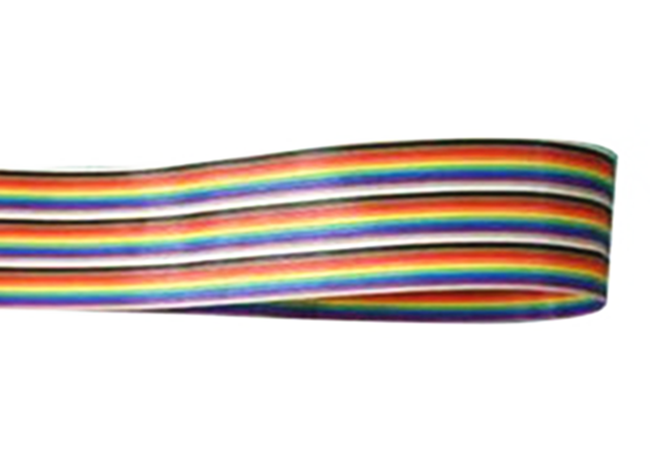

UL20012 28AWG 30pin IDC 2.54*2.54 TO 30pin IDC 2.54*2.54 pitch Flat rainbow Cables

Electrical Characteristics

Product Details:

Application:

FFC wiring is currently widely used in the connection between printer head and main board, signal transmission and board connection of plotter, scanner, copier, audio, LCD electrical appliances, fax machines, various video disc machines and other products. In modern electrical equipment, almost nowhere.

Common models are as follows:

Type A: The two ends are connected and the reinforcing board is pasted on the insulating adhesive paper.

Type B: The reinforcing board is directly pasted on the insulating adhesive paper.

Type C: The two ends of the reinforcing plate are directly attached to the conductor.

Type D: The two ends of the reinforcing plate are directly pasted on the conductor.

Type E: One end of the reinforcing board is pasted on the insulating adhesive paper, the other end is soldered directly.

Type F: The two ends of the reinforcing board are directly attached to the insulating adhesive paper and half of the interior is peeled off.

Type G: Direct soldering at both ends.

Our Company:

1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:

1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Good After-Sales Service: we could offer technical support or return service in short time.

4. 1 Year Warranty.

5. OEM/ODM service.

FAQ:

1. How can I get quotation?

It is helpful for us to recommend the right item if we know your detail description or specifications. Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.

2. How to buy the IDC Cable?
1). Tell us what pitch of the IDC Connector you want? Options:1.27,2.0 & 54mm

2). Tell us what the Connectors No of pins you need.

3). Tell us if you need the Strain Relief or not.Price for with SR or without SR is almost same.

4). Tell us the contact plating you need? Standard is Tin 50μ“ over Nickle,if you have different requirement, pls tell us.

5). Could I buy lower than your MOQ request? Yes, it depends on the cable length and number of pins.

3. Can I have samples?

Sample is ok.
