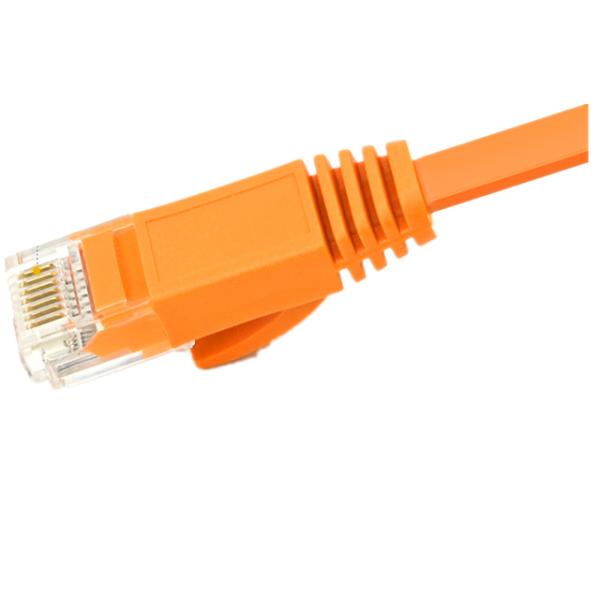

CAT6 8P8C ethernet UTP network patch cable gold plated connector
CAT6 8P8C ethernet UTP network patch cable gold plated connector
CAT6 8P8C ethernet UTP network patch cable gold plated connector
CAT6 8P8C ethernet UTP network patch cable gold plated connector
CAT6 8P8C ethernet UTP network patch cable gold plated connector
CAT6 8P8C ethernet UTP network patch cable gold plated connector
CAT6 8P8C ethernet UTP network patch cable gold plated connector
CAT6 8P8C ethernet UTP network patch cable gold plated connector
Specifications
Brand Name :
RY
Model Number :
RY-CAT6-RJ45
Certification :
rohs
Place of Origin :
China
MOQ :
10
Price :
USD0.8-6.5
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
10000 Pieces per week
Delivery Time :
15-25days
Packaging Details :
PE bag+export carton
Type :
Cat 6
Contact pin :
Gold-plated
Sample :
available
RJ45 metal shell :
gold plated
Jacket :
golden Sleeved
Connector Type :
RJ45
Shielding :
double shielding
Length :
optional
Certified :
RoHS
Name :
CAT6 shielded flat cable
Description
Product Description
HIGH QUALITY CAT6 8P8C UTP FLAT NETWORK CABLE NETWORK PATCH CORD
• Super Slim Flat CAT6 Network Ethernet Cable - Blue black- Brand new and high quality.
• Cat6 cables are used for networking, data transfer, and phone lines primarily. connect a PC to a DSL/
Cable modem, hub, switch and router. Connect DSL/Cable modem, Hub, switch, router. Support 10 /
100 / 1000 Mbps.
• Flat cables fit easily between cramped spaces improving the look of your home or office because they
are flat and easy to hide. These flat cables are a perfect fit under carpets, up walls, and even behind furniture.
Specification
Cable Spec CAT6 32AWG 4pairs+AEB
Cable Length 6ft, 10ft, 15ft, 25ft, 50ft, (Custom Length available)
Color Black, Beige ,Blue(Custom Color available)
Diameter OD:1.9*7.0mm
Wire Gauge 32AWG,30AWG
Conductor bare copper(BC),Tin plated copper(TC)(optional)
Certificate RoHS,UL,CE,FCC
Plug mould PVC molding, plastic shell , metal shell
Connector gold-plated
Electrical Properties
Quality Control 100% open & short test
Voltage DC300V 5M ohm/10ms
Insulation Resistance 10M min
Contact Resistance 2 ohm max
Working Temperature -25C-80C
Data transfer rate 10.2Gbps Max
Differential Impedance 100±10Ω(TDR)
Complies with TIA/EIA 568B standard

Durable is a good wire, the outside is made of high quality environmental protection PVC material, with a certain wear resistance, anti-oil, can improve the service life of the wire, the line body is soft, and there are a variety of colors to choose from, gorgeous colors, rich life, from the beginning of the mountains! Round thread can be used everyday, flat thread can easily slip through the door, no need to worry about making holes in the wall!

Cat6 network cables have passed the test of FLUKE instrument in the United States, and the RJ network cable interface is fully compatible. It has the characteristics of long transmission distance, small transmission loss, wear resistance and pressure resistance, and is widely used in the field of high-speed local area network cabling. It supports gigabit Ethernet very well and realizes the transmission distance of 100M. As a result, six types of cabling systems are widely used for cabling subserver rooms, as well as horizontal cabling that retains the ability to upgrade to Gigabit Ethernet.

CAT6 8P8C ethernet UTP network patch cable gold plated connector

Our Company:

RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
