Power Electric Cable Hydraulic Puller With 5Km/H Maximum Pulling Speed
Power Electric Cable Hydraulic Puller With 5Km/H Maximum Pulling Speed
Power Electric Cable Hydraulic Puller With 5Km/H Maximum Pulling Speed
Power Electric Cable Hydraulic Puller With 5Km/H Maximum Pulling Speed
Power Electric Cable Hydraulic Puller With 5Km/H Maximum Pulling Speed
Power Electric Cable Hydraulic Puller With 5Km/H Maximum Pulling Speed
Power Electric Cable Hydraulic Puller With 5Km/H Maximum Pulling Speed
Power Electric Cable Hydraulic Puller With 5Km/H Maximum Pulling Speed
Power Electric Cable Hydraulic Puller With 5Km/H Maximum Pulling Speed
Power Electric Cable Hydraulic Puller With 5Km/H Maximum Pulling Speed
Power Electric Cable Hydraulic Puller With 5Km/H Maximum Pulling Speed
Power Electric Cable Hydraulic Puller With 5Km/H Maximum Pulling Speed
Specifications
Place of Origin :
China
Brand Name :
MARSHINE
Certification :
CE UL ROHS
MOQ :
1PC
Packaging Details :
Wooden Box, Wooden Pallet
Delivery Time :
15-30DAY
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30PCS/Month
Model Number :
MAR-YQ420
Price :
US$10000-US$100000
Continuous Tractive Effort (Kn) :
350
Maximum Pulling Speed (Km/H) :
5
Number of Bullwheel Grooves :
11
Engine Power / Speed (Kw/Rpm) :
402/2100
Weight (Kg) :
14800
Transport Package :
Carton Box
Specification :
14800
HS Code :
8467890000
Package Size :
600.00cm * 500.00cm * 400.00cm
Package Gross Weight :
5.000kg
After-sales Service :
1 Year
Warranty :
1 Year
Maximum Traction Force (Kn) :
400
Samples :
US$ 70000/Piece 1 Piece(Min.Order) |
Shipping Cost :
about shipping cost and estimated delivery time.
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description

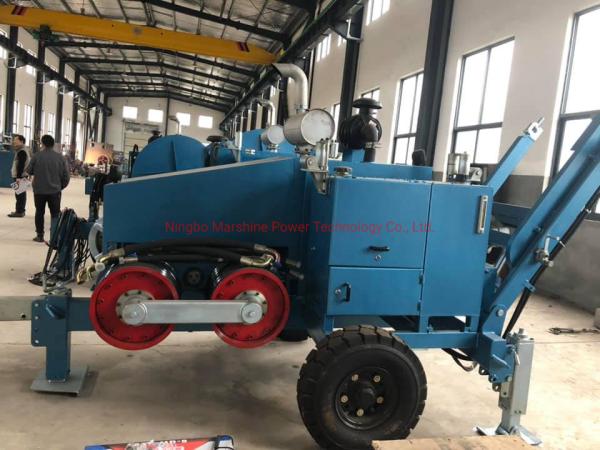

Power Electric Cable Hydraulic Puller

Product Description

This MAR-YQ420 Hydraulic Puller has an electronic control engine that strictly complies with the current Tier 3 emission standard of both European and American non-road mobile machinery.

Furthermore, our product provides numerous functions. For instance, the automatic braking function can ensure the safe operation, in case of the hydraulic failure caused by the sudden flameout of motor or other reasons.

Due to the hydraulic type rope clamping device, the reel can be changed conveniently. By utilizing the steel wire rope automatically winding device, it is really easy for loading and unloading. Also, the rope can be arranged automatically.

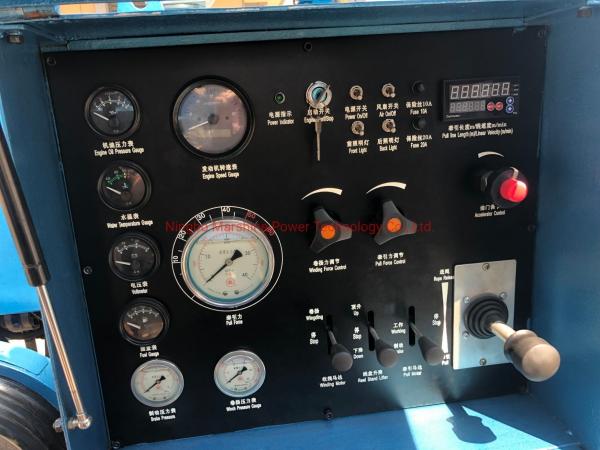

This MAR-YQ420 Hydraulic Puller possesses infinitely variable pulling speed and traction force. The pull in the rope can be visually read on the line pull gauge. Additionally, our product has the overload automatic protection function. Users can set the maximum traction force in advance.

Product Parameters

Essential Parameters

Model MAR-YQ400 Hydraulic Puller
Maximum Traction Force (kN) 400
Continuous Tractive Effort (kN) 350
Maximum Pulling Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ960
Number of Bullwheel Grooves 11
Maximum Diameter of Suitable Steel Rope (mm) Φ45
Maximum Through Connector Diameter (mm) Φ80
Engine Power / Speed (kW/rpm) 402/2100
Dimensions (mm) 6100× 2600× 2800
Weight (kg) 14800

Main Components

Engine Cummmins (USA) water-cooled diesel engine
Main Variable Displacement Pump, Main Motor Rexroth (BOSCHS)
Reducer RR (Italian)
Main Hydraulic Valves Rexroth (BOSCHS)
Radiator AKG
Hydraulic Instrument WIKA
Suitable Drum Model GSP1900 (Item number: 07125E)

Characteristic
1. Fully electronically controlled engine;
2. The traction force and traction speed are stepless and adjustable, and the display is intuitive;
3. The maximum traction force can be preset, and overload automatic protection;
4. Pressure loss automatic braking function to ensure the safety of operation when the engine suddenly stalls or the system loses pressure due to other reasons;
5. The hydraulic traction rope clamping device is convenient for replacing the steel wire rope disc;
6. With automatic winding device of steel wire rope, it can automatically arrange ropes and facilitate loading and unloading.
