Specifications
Place of Origin :
China
Brand Name :
MARSHINE
Certification :
ISO
MOQ :
1PC
Packaging Details :
Wooden Box, Wooden Pallet
Delivery Time :
15-30DAY
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000PCS/Week
Model Number :
GSP-1400
Price :
US$100-US$1000
Model NO. :
GSP-1400
Dimensions of Reel (mm) :
1400X560
Dimensions (mm) :
2820X1330X700
Rated Tension of Steel Rope (N) :
750
Max Line-Speed (M/Min) :
80
Max Tension of Steel Rope (N) :
1000
Transport Package :
Industry Packing
Specification :
Aluminium, Alloy Steel
HS Code :
7326909000
Type :
Reel
Customized :
Non-Customized
Condition :
New
Feature :
Antimagnetic
Weight(Kg) :
470kg
Description

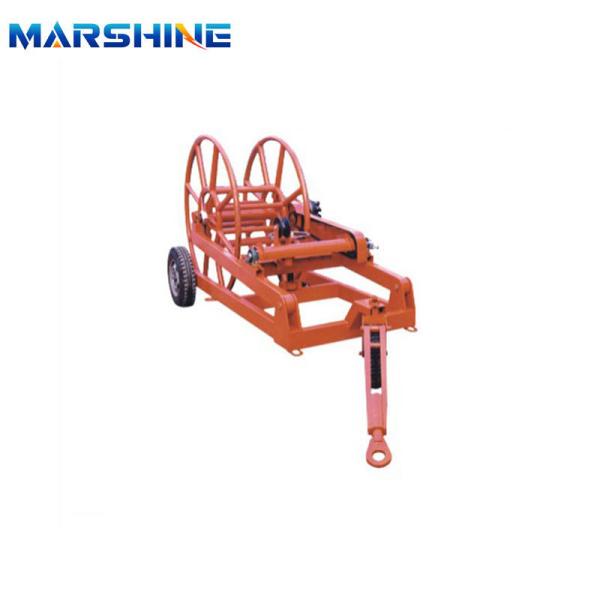

High Quality Wire Rope Reel Stand Cable Drum Pay-off Stand Auto Rewind Hose Reel

Reel Winder With Steel Reel are suitable to work with any hydraulic power unit, in particular with pullers and puller-tensioners, and operate as separated winding systems.
They are equipped with automatic level wind and negative self-acting hydraulic brake.
The frame is made of welded steel with protective coating.
The reel winders can lift the reel by hydraulic jacks powered by the same hydraulic source.

Specifications

Max line-speed (m/min) Max tension of steel rope (N) Rated tension of steel rope (N) Steel rope capacity (m) Dimensions (mm) Mass (kg) Dimensions of reel (mm)
80 1000 750 1000 (φ15mm steel rope) 2820x1330x700 470 1400×560

Feature:
The reel winder is also equipped with:
1. steel reel GSP1400.
2. Manual front stabilizer.
3. Connecting hoses kit 15m length.
4. Rigid axle for towing at max speed of 30km/h with mechanical parking brake.
Wire Rope Electrical Cable Reel Stands Jack For Auto Rewind Hose Reel

To support the Transmission work, Marshine Power has Tubular Gin Pole, Hydraulic cable puller, wire rope pulley block, hoisting tackle,

Wire rope gripper

, Cable reel spool and stand- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls contact us. Thanks.


Wire Rope Electrical Cable Reel Stands Jack For Auto Rewind Hose Reel
Wire Rope Electrical Cable Reel Stands Jack For Auto Rewind Hose Reel

Wire Rope Electrical Cable Reel Stands Jack For Auto Rewind Hose Reel
Wire Rope Electrical Cable Reel Stands Jack For Auto Rewind Hose Reel

Wire Rope Electrical Cable Reel Stands Jack For Auto Rewind Hose Reel
Wire Rope Electrical Cable Reel Stands Jack For Auto Rewind Hose Reel

Wire Rope Electrical Cable Reel Stands Jack For Auto Rewind Hose Reel
Wire Rope Electrical Cable Reel Stands Jack For Auto Rewind Hose Reel
Wire Rope Electrical Cable Reel Stands Jack For Auto Rewind Hose Reel
Wire Rope Electrical Cable Reel Stands Jack For Auto Rewind Hose Reel

Wire Rope Electrical Cable Reel Stands Jack For Auto Rewind Hose Reel

1.Training and services.
Marshine is a company specializing in the development, designand manufacture of electrical construction equipment and tools.
We not only produce but also sell international standard products,OEM and custom products,and provide quality tracking and service monitoring.

2. How about the quality of your products?
Our products are manufactured in strict accordance with domistic and international standards, and each product is tested before delivery. If you would like to view our quality certification and various test reports, please consult us.

3. Why do you choose us?
Because we can provide you with excellent service, high quality products and reasonable price. In addition, we can also provide smooth delivery of goods, excellent customer solutions.

4. Customer inquiry.
If there is an emergency, customers can also use ononline Chat methods (Skype, wechat) for faster and better communication. Any enquiry will be answered within 12 working hours.

5. How to obtain samples?
We can provide free samples to the buyer for testing, but the buyer needs to pay the freight. Existing samples take 2-3 days. If there is no stock, we will advise the delivery date.

6. How about packing and shipping?
All goods will be packed in plywood boxes for safe, long haul transport. Support EXW, FOB, CIF, CFR terms.
Required documents such as packing list, commercial invoice, bill of lading, air waybill, CO, Form E, Form F etc will be provided.

Note: If you do not find the product you need, please feel free to contact us. We will provide the best quotation as soon as we verify your requirements.
